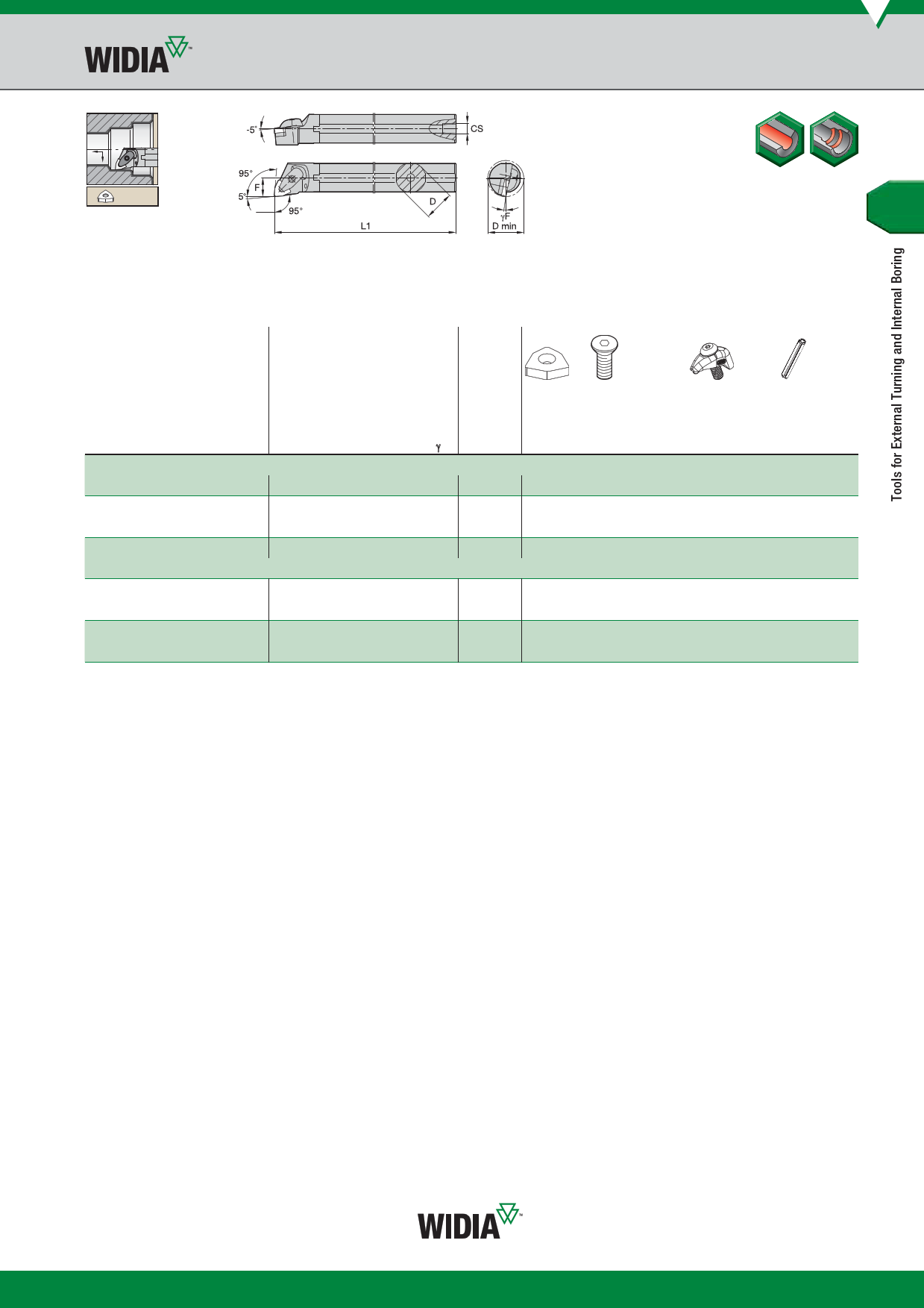

D-Style Clamping Boring Bars for Negative Inserts

Steel Shank with Through Coolant

Steel shank with

through coolant.

See pages B99–B105

for inserts.

A-DWLN 95°

order number catalogue number D D min F L1 CS

gage

aF° insert

shim

shim Torx

screw Plus

clamp

assembly

slotted Torx

pin Plus

right hand

5696267 A25RDWLNR06KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 WN..060408

—

— — CM234RLP ASSY SSP025016M 15 IP

5696269 A25RDWLNR08KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 WN..080408 —

— — CM234RLP ASSY SSP025016M 15 IP

5696281 A32SDWLNR08KC04 32 40,0 22,0 250 1/4-18 NPT -14.0 WN..080408 IWSN433 KMSP415IP 15 IP CM234RLP ASSY SSP025016M 15 IP

5696283 A40TDWLNR08KC04 40 50,0 27,0 300 1/4-18 NPT -14.0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP

left hand

5696268 A25RDWLNL06KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 WN..060408

—

— — CM234RLP ASSY SSP025016M 15 IP

5696280 A25RDWLNL08KC04 25 32,0 17,0 200 1/4-18 NPT -12.0 WN..080408 —

— — CM234RLP ASSY SSP025016M 15 IP

5696282 A32SDWLNL08KC04 32 40,0 22,0 250 1/4-18 NPT -14.0 WN..080408 IWSN433 KMSP415IP 15 IP CM234RLP ASSY SSP025016M 15 IP

5696284 A40TDWLNL08KC04 40 50,0 27,0 300 1/4-18 NPT -14.0 WN..080408 IWSN433 KMSP415IP 15 IP CM234R ASSY SSP025016M 15 IP
