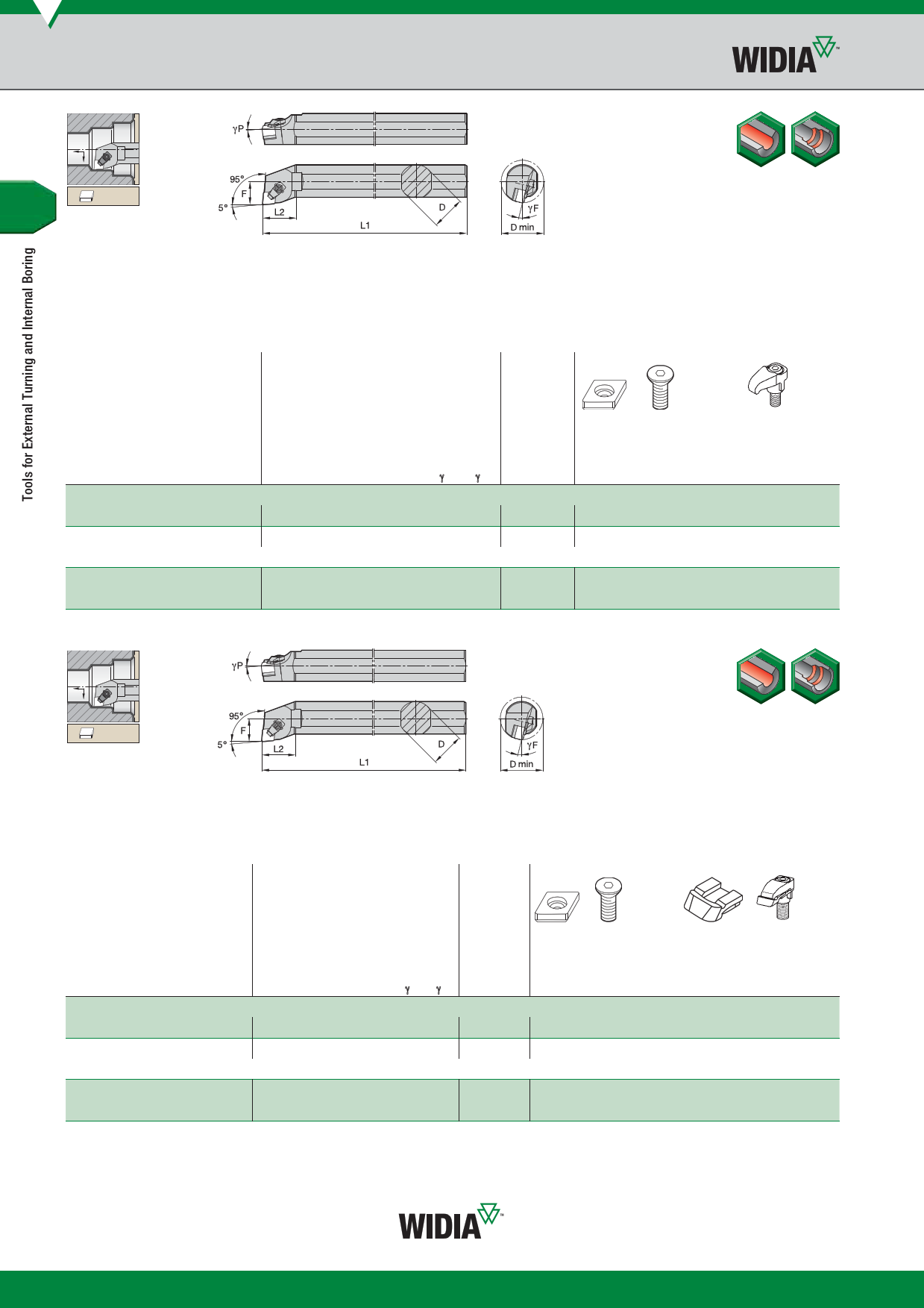

C-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
See pages B177–B179 and
B197–B205 for inserts.
Steel shank with
through coolant.
S-CCLN-MX 95°
order number catalogue number D D min F L1 L2 aF° aP°
gage
insert
right hand
3883565
S32SCCLNR12MX7 32 40,0 22,0 251 43 -14.0 -5.0 CN.X120708
3029009 S40TCCLNR12MX7 40 55,0 27,0 300 40 -14.0 -6.0 CN.X120708
left hand
3883564
S32SCCLNL12MX7 32 40,0 22,0 251 43 -14.0 -5.0 CN.X120708
3029010 S40TCCLNL12MX7 40 55,0 27,0 300 40 -14.0 -6.0 CN.X120708
NOTE: MN — clamping version is shown.
shim
—
552.221
—
552.221
shim
screw
clamp
hex assembly hex
— — 551.316 4 mm
554.252 2.5 mm 551.316 4 mm
— — 551.316 4 mm
554.252 2.5 mm 551.316 4 mm
See pages B177–B179 and
B197–B205 for inserts.
Steel shank with
through coolant.
S-CCLN-MN 95°
order number catalogue number D D min F L1 L2 aF° aP°
gage
insert
shim
shim
screw
hex
right hand
3029011
S40TCCLNR12MN4 40 55,0 27,0 300 40 -14.0 -6.0 CN.N120408 552.220 554.252 2.5 mm
3029143 S40TCCLNR12MN7 40 55,0 27,0 300 40 -14.0 -6.0 CN.N120708 552.221 554.253 2.5 mm
left hand
3029012
S40TCCLNL12MN4 40 55,0 27,0 300 40 -14.0 -6.0 CN.N120408 552.220 554.252 2.5 mm
3029144 S40TCCLNL12MN7 40 55,0 27,0 300 40 -14.0 -6.0 CN.N120708 552.221 554.252 2.5 mm
NOTE: MN — clamping version is shown.
thrust
plate
557.111
557.111
557.111
557.111
clamp
assembly hex
551.317 4 mm
551.317 4 mm
551.317 4 mm
551.317 4 mm
