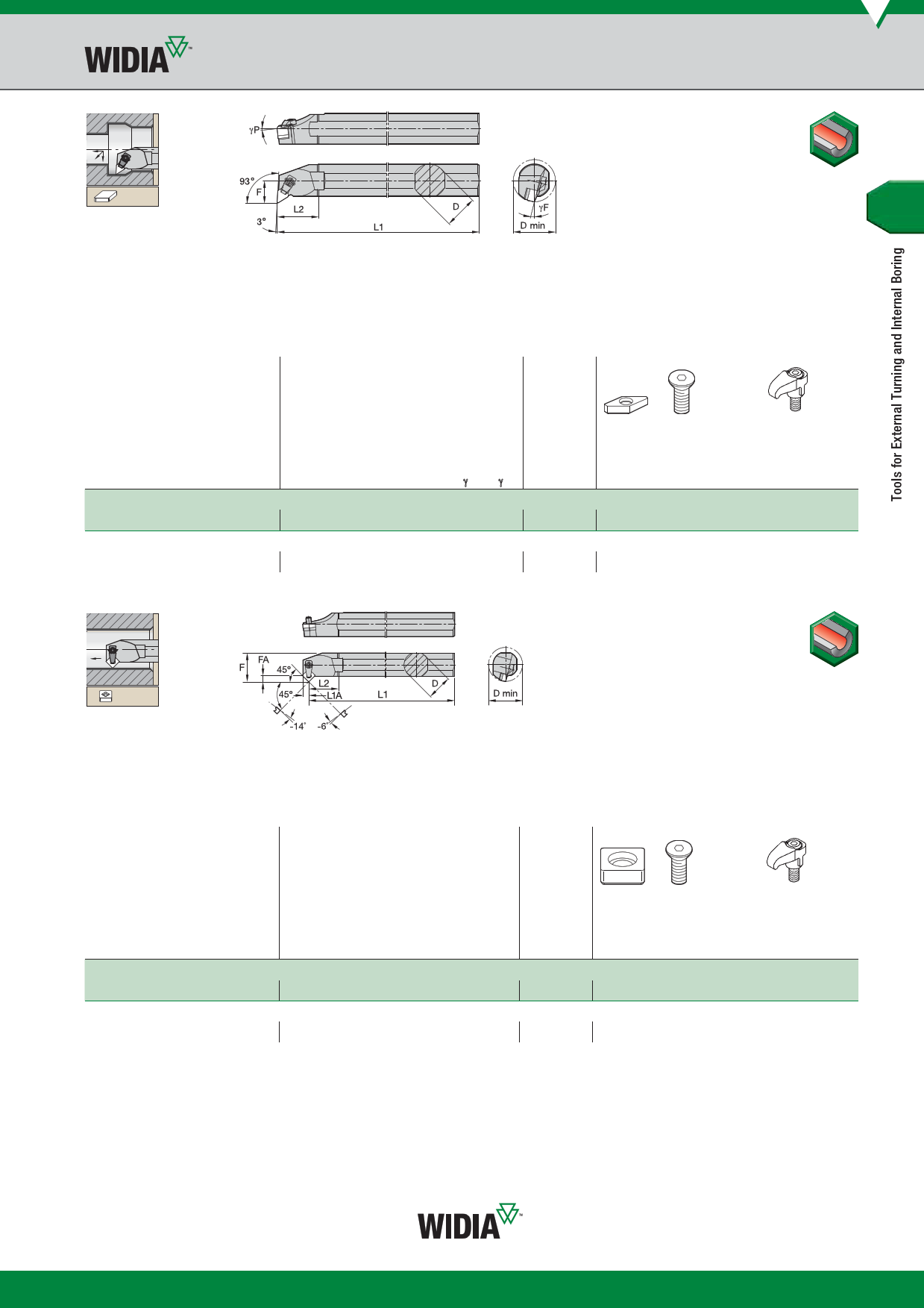

C-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
See pages B180–B181 and
B206–B216 for inserts.
Steel shank with
through coolant.
S-CDQN-MX
order number catalogue number D D min F L1 L2 aF° aP°
gage
insert
right hand
3883567
S40TCDQNR12MX7 40 50,0 27,0 302 45,0 -14.0 -5.0 DN.X120708
left hand
3883566 S40TCDQNL12MX7 40 50,0 27,0 302 45,0 -14.0 -5.0 DN.X120708
NOTE: MN — clamping version is shown.
shim
552.225
552.225
shim
screw
clamp
hex assembly hex
554.254 2.5 mm 551.316 4 mm
554.254 2.5 mm 551.316 4 mm
See pages B186–B191 and
B211–B212 for inserts.
Steel shank with
through coolant.
S-CSSN-MX 45°
order number catalogue number D D min F 1 L2 L1A FA
gage
insert
right hand
3029151
S40TCSSNR12MX7 40 55,0 27,0 300 67,0 8,5 8,2 SN.X120708
left hand
3029152
S40TCSSNL12MX7 40 55,0 27,0 300 67,0 8,5 8,2 SN.X120708
NOTE: MX — clamping version is shown.
shim
552.232
552.232
shim
screw
clamp
hex assembly hex
554.252 2.5 mm 551.316 4 mm
554.252 2.5 mm 551.316 4 mm
