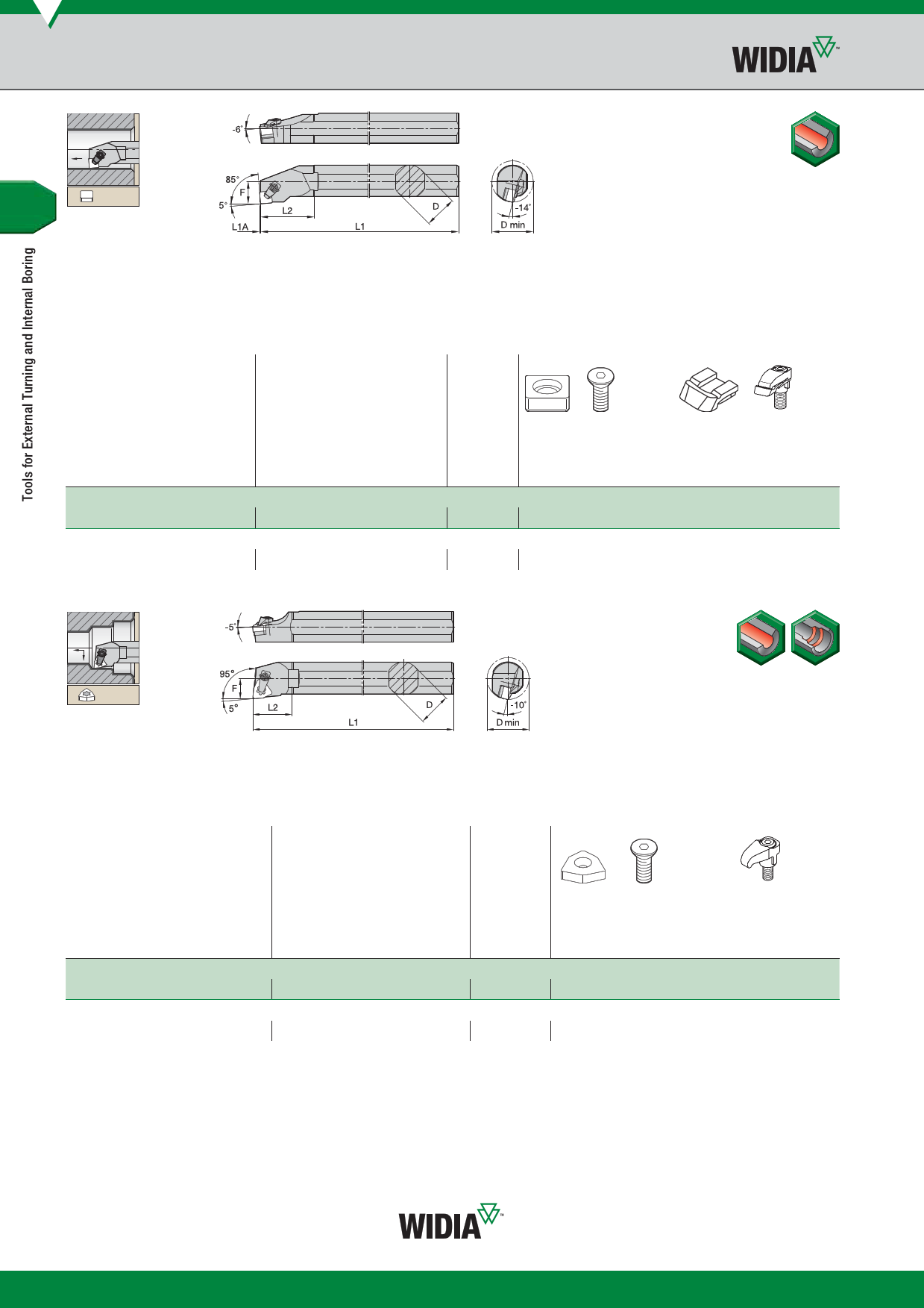

C-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
See pages B186–B191 and
B211–B212 for inserts.
Steel shank with
through coolant.
S-CSYN-MN 85°
order number catalogue number D D min F L1 L2 L1A
gage
insert
right hand
3883569
S40TCSYNR12MN7 40 55,0 27,0 300 67,0 1,0 SN.N120708
left hand
3883568
S40TCSYNL12MN7 40 55,0 27,0 300 67,0 1,0 SN.N120708
NOTE: MN — clamping version is shown.
shim
552.232
552.232
shim
screw
hex
554.252 2.5 mm
554.252 2.5 mm
thrust
plate
clamp
assembly hex
557.111 551.317 4 mm
557.111 551.317 4 mm
See pages B195–B198
and B218 for inserts.
Steel shank with
through coolant.
S-CWLN-MX 95°
order number catalogue number D D min F L1 L2
gage
insert
right hand
3029153
S40TCWLNR08MX7 40 80,0 27,0 300 55,0 WN.X080708
left hand
3029154
S40TCWLNL08MX7 40 80,0 27,0 300 55,0 WN.X080708
NOTE: MX — clamping version is shown.
shim
552.210
552.210
shim
screw
clamp
hex assembly hex
554.252 2.5 mm 551.316 4 mm
554.252 2.5 mm 551.316 4 mm
C64
