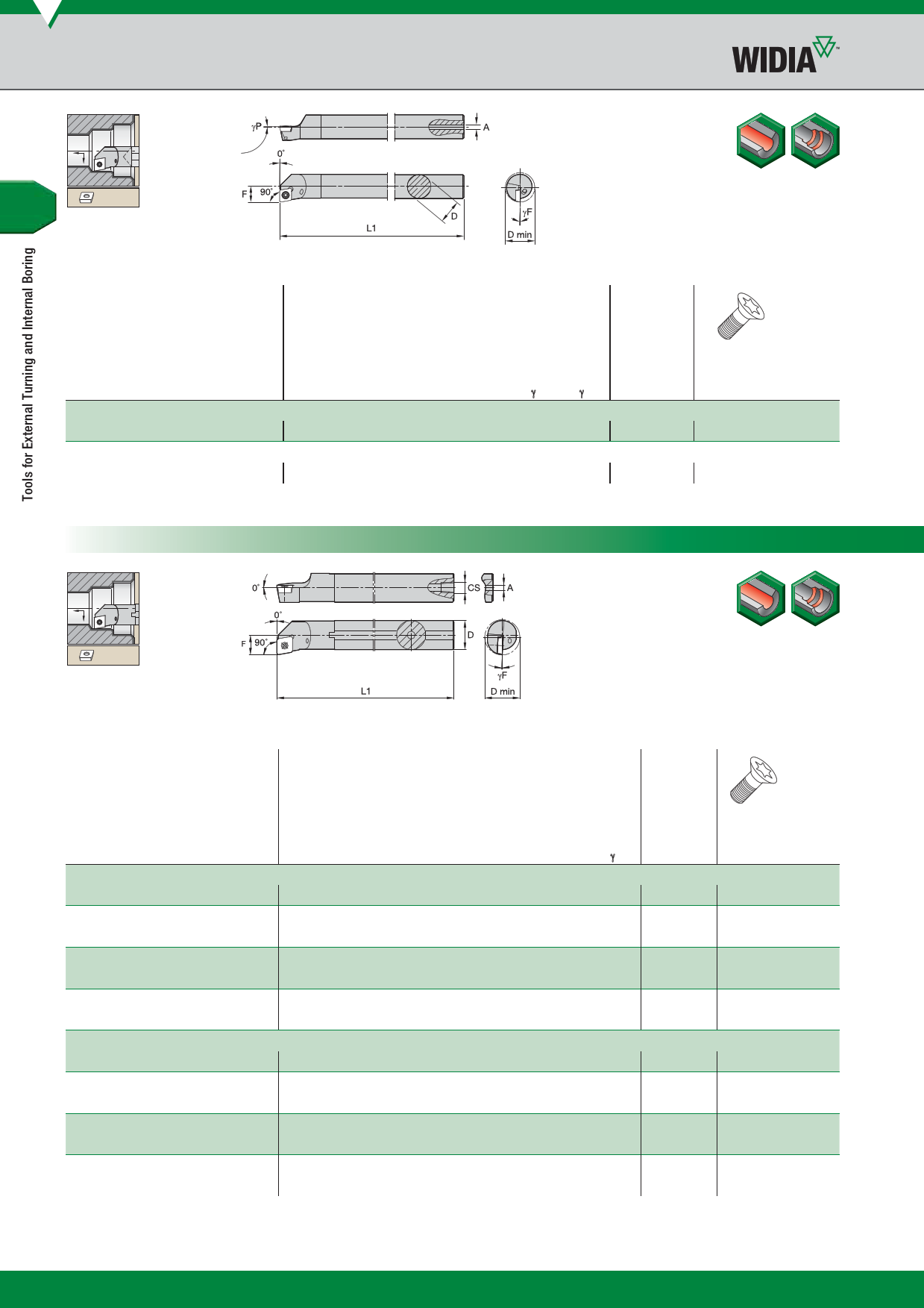

S-Style Clamping Boring Bars for Positive Inserts
Carbide Shank with Through Coolant
Carbide shank with
through coolant.
See pages B30–B46
for inserts.
E-SCFC 90°
order number catalogue number D D min
F
L1 A
aF° aP°
gage
insert
insert
screw
Torx
right hand
2023600
E08KSCFCR06
8 11,0 6,0 125 3,0 -12.0 0.0 CC..060204 12148036300 T8
left hand
2031019
E08KSCFCL06
8 11,0 6,0 125 3,0 -12.0 0.0 CC..060204 12148036300 T8
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B30–B46
for inserts.
A-SCFP 90°
gage
order number catalogue number D D min
F
L1 A
CS
aF° insert
right hand
5077442
A08JSCFPR06
8 11,0 6,0 110 2,4
—
-8.0 CP..0602..
5077449
A10KSCFPR06
10 13,0
7,0 125 3,2
—
-6.0 CP..0602..
5077497
A12MSCFPR06
12 16,0
9,0 150 — 1/16 - 27 NPT -4.0 CP..0602..
5077552
A16RSCFPR06
16 20,0 11,0 200 — 1/8 - 27 NPT -5.0 CC..0602..
5077553
A16RSCFPR09
16 20,0 11,0 200 — 1/8 - 27 NPT -4.0 CP..09T3..
5077614
A20SSCFPR06
20 25,0 13,0 250 — 1/8 - 27 NPT -3.0 CC..0602..
5077615
A20SSCFPR09
20 25,0 13,0 250 — 1/8 - 27 NPT -2.0 CP..09T3..
left hand
5077441
A08JSCFPL06
8 11,0 6,0 110 2,4
—
-8.0 CP..0602..
5077447
A10KSCFPL06
10 13,0
7,0 125 3,2
—
-6.0 CP..0602..
5077496
A12MSCFPL06
12 16,0
9,0 150 — 1/16 - 27 NPT -4.0 CP..0602..
5077550
A16RSCFPL06
16 20,0 11,0 200 — 1/8 - 27 NPT -5.0 CC..0602..
5077551
A16RSCFPL09
16 20,0 11,0 200 — 1/8 - 27 NPT -4.0 CP..09T3..
5077556
A20SSCFPL06
20 25,0 13,0 250 — 1/8 - 27 NPT -3.0 CC..0602..
5077557
A20SSCFPL09
20 25,0 13,0 250 — 1/8 - 27 NPT -2.0 CP..09T3..
insert
screw
MS1153
MS1153
MS1153
MS1153
MS1155
MS1153
MS1155
MS1153
MS1153
MS1153
MS1153
MS1155
MS1153
MS1155
Torx
T7
T7
T7
T7
T15
T7
T15
T15
T7
T7
T7
T15
T7
T7
