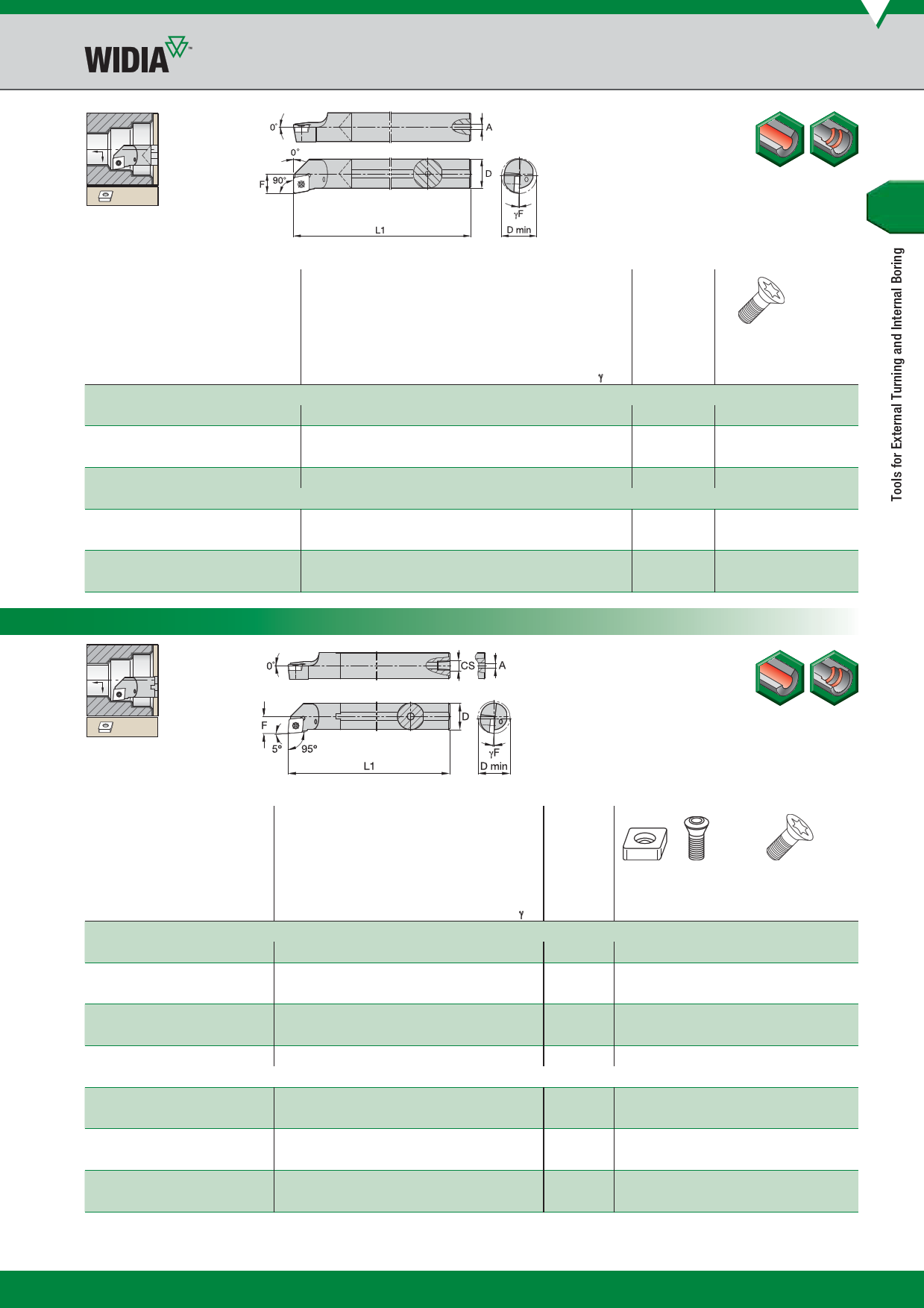

S-Style Clamping Boring Bars for Positive Inserts
Carbide Shank with Through Coolant
Carbide shank with
through coolant.
See pages B30–B46
for inserts.
E-SCFP 90°
order number catalogue number D D min
F
L1
A A1 aF°
gage
insert
insert
screw
Torx
right hand
2010047
E06JSCFPR04
6
8,0
4,5 110,0 2,0 1,4 -10.0 CP..04T104 12148005800
T6
5092759
E08KSCFPR06A
8
11,0
6,0 123,0 2,4
—
-8.0
CP..060204
MS1939
T7
5092921
E10MSCFPR06A
10
13,0
7,0 148,0 3,2
—
-4.0 CP..060204
MS1939
T7
5092923
E12QSCFPR06
12
16,0
9,0 177,5 4,8
—
-3.0
CP..060204
MS1153
T7
left hand
2031018
E06JSCFPL04
6
8,0
4,5 110,0 2,0 1,4 -10.0 CP..04T104 12148005800
T6
5092757
E08KSCFPL06A
8
11,0
6,0 123,0 2,4
—
-8.0
CP..060204
MS1939
T7
5092920
E10MSCFPL06A
10
13,0
7,0 148,0 3,2
—
-4.0 CP..060204
MS1939
T7
5092922
E12QSCFPL06
12
16,0
9,0 177,5 4,8
—
-3.0
CP..060204
MS1153
T7
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B30–B46
for inserts.
A-SCLC 95°
gage
order number catalogue number D D min F L1 A CS aF° insert
shim
shim
screw hex
right hand
3883285
A08JSCLCR06 8 11,0 6,0 110 2,4
—
-8.0 CC..060204
—
——
3883283
A10KSCLCR06 10 13,0 7,0 125 3,2
—
-7.0 CC..060204
—
——
3883271
A16RSCLCR09 16 20,0 11,0 200 — 1/8-27 NPT -7.0 CC..09T308
—
——
3883269
A20SSCLCR09 20 25,0 13,0 250 4,0 1/8-27 NPT -5.0 CC..09T308
—
——
3883265
A25TSCLCR12 25 32,0 17,0 300 6,4 1/4-18 NPT -7.0 CC..120408
—
——
3883266
A32TSCLCR12 32 40,0 22,0 300 6,4 1/4-18 NPT -7.0 CC..120408 SKCP453 SRS4 4 mm
left hand
3883286
A08JSCLCL06 8 11,0 6,0 110 2,4
—
-8.0 CC..060204
—
——
3883284
A10KSCLCL06 10 13,0 7,0 125 3,2
—
-7.0 CC..060204
—
——
3883272
A16RSCLCL09 16 20,0 11,0 200 4,0 1/8-27 NPT -7.0 CC..09T308
—
——
3883270
A20SSCLCL09 20 25,0 13,0 250 — 1/8-27 NPT -5.0 CC..09T308
—
——
3883267
A25TSCLCL12 25 32,0 17,0 300 6,4 1/4-18 NPT -7.0 CC..120408
—
——
3883268
A32TSCLCL12 32 40,0 22,0 300 6,4 1/4-18 NPT -7.0 CC..120408 SKCP453 SRS4 4 mm
insert
screw
MS1939
MS1153
MS1155
MS1155
MS1157
MS1158
MS1939
MS1153
MS1155
MS1155
MS1157
MS1158
Torx
T7
T7
T15
T15
T15
T15
T7
T7
T15
T15
T15
