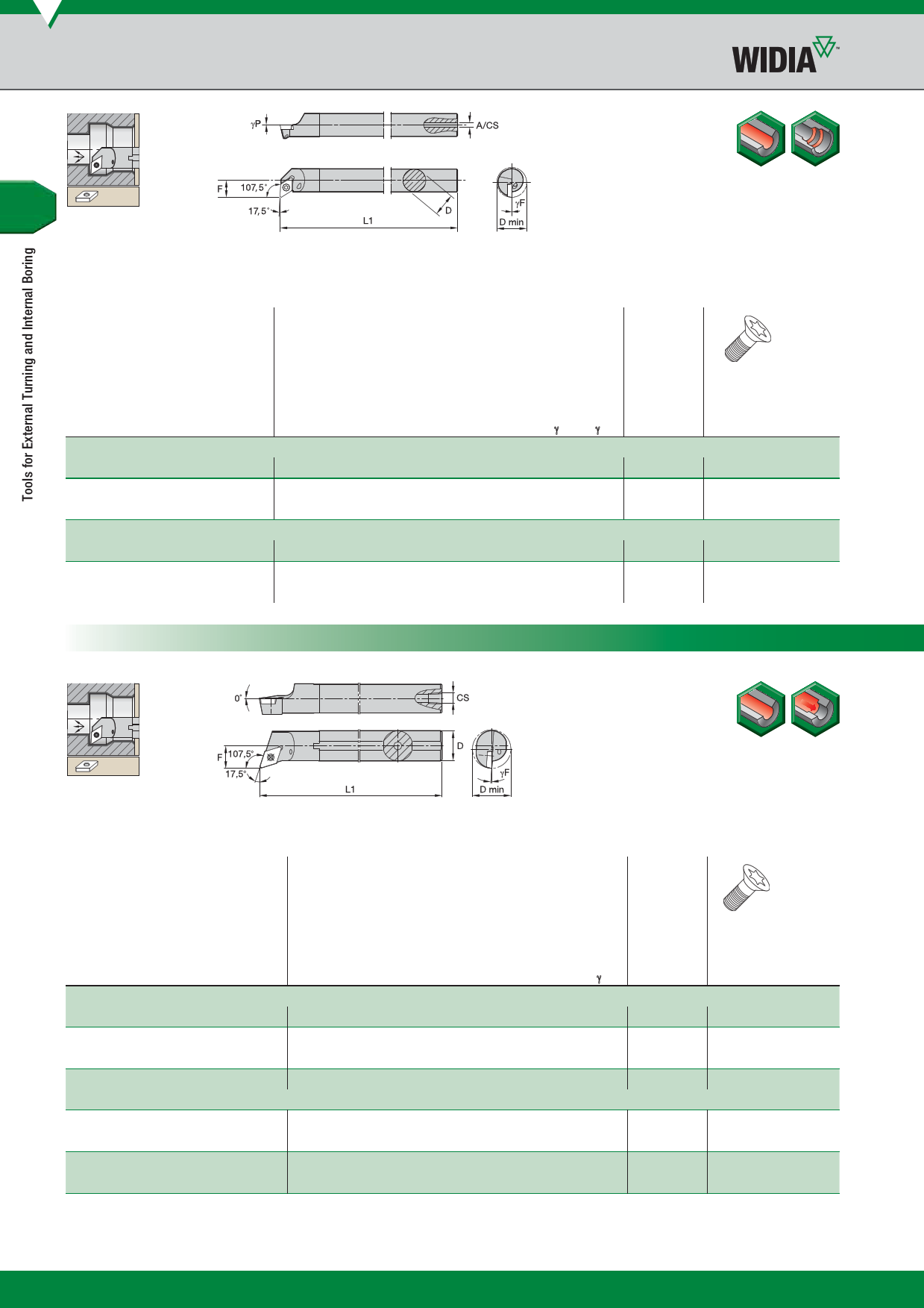

S-Style Clamping Boring Bars for Positive Inserts
Carbide Shank with Through Coolant
Carbide shank with
through coolant.
See pages B47–B64
for inserts.
E-SDQC 107,5°
order number catalogue number D D min
F
L1 A
CS aF° aP°
gage
insert
insert
screw
Torx
right hand
2010111
E12QSDQCR07
12 16,0
9,0 180 4,5
—
-7.0 0.0 DC..070204 12148080000
T8
2031025
E16RSDQCR07
16 20,0 11,0 200 5,5
—
-5.0 0.0 DC..070204 12148080000
T8
2023623
E20SSDQCR11
20 25,0 13,0 250 — G 1/8 -7.0 0.0 DC..11T308 12148038800 T15
left hand
2031023
E12QSDQCL07
12 16,0
9,0 180 4,5
—
-7.0 0.0 DC..070204 12148080000
T8
2010148
E16RSDQCL07
16 20,0 11,0 200 5,5
—
-5.0 0.0 DC..070204 12148080000
T8
2023622
E20SSDQCL11
20 25,0 13,0 250 — G 1/8 -7.0 0.0 DC..11T308 12148038800 T15
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-SDQP
order number
catalogue number
D
D min
F
L1
gage
CS aF° insert
right hand
5078292
A12MSDQPR07
12 16,0
9,0 150 1/16-27 NPT 2.0 DP..0702..
5078295
A16RSDQPR07
16
20,0
11,0 200
1/8-27 NPT
0.0 DP..0702..
5078298
A20SSDQPR11
20
25,0
13,0 250
1/8-27 NPT
2.0 DP..11T3..
5078320
A25TSDQPR11
25
32,0
17,0 300
1/4-18 NPT
0.0 DP..11T3..
left hand
5078291
A12MSDQPL07
12 16,0
9,0 150 1/16-27 NPT 2.0 DP..0702..
5078293
A16RSDQPL07
16
20,0
11,0 200
1/8-27 NPT
0.0 DP..0702..
5078296
A20SSDQPL11
20
25,0
13,0 250
1/8-27 NPT
2.0 DP..11T3..
5078299
A25TSDQPL11
25
32,0
17,0 300
1/4-18 NPT
0.0 DP..11T3..
insert
screw
MS1153
MS1153
MS1155
MS1155
MS1153
MS1153
MS1155
MS1155
Torx
T7
T7
T15
T15
T7
T7
T15
T15
