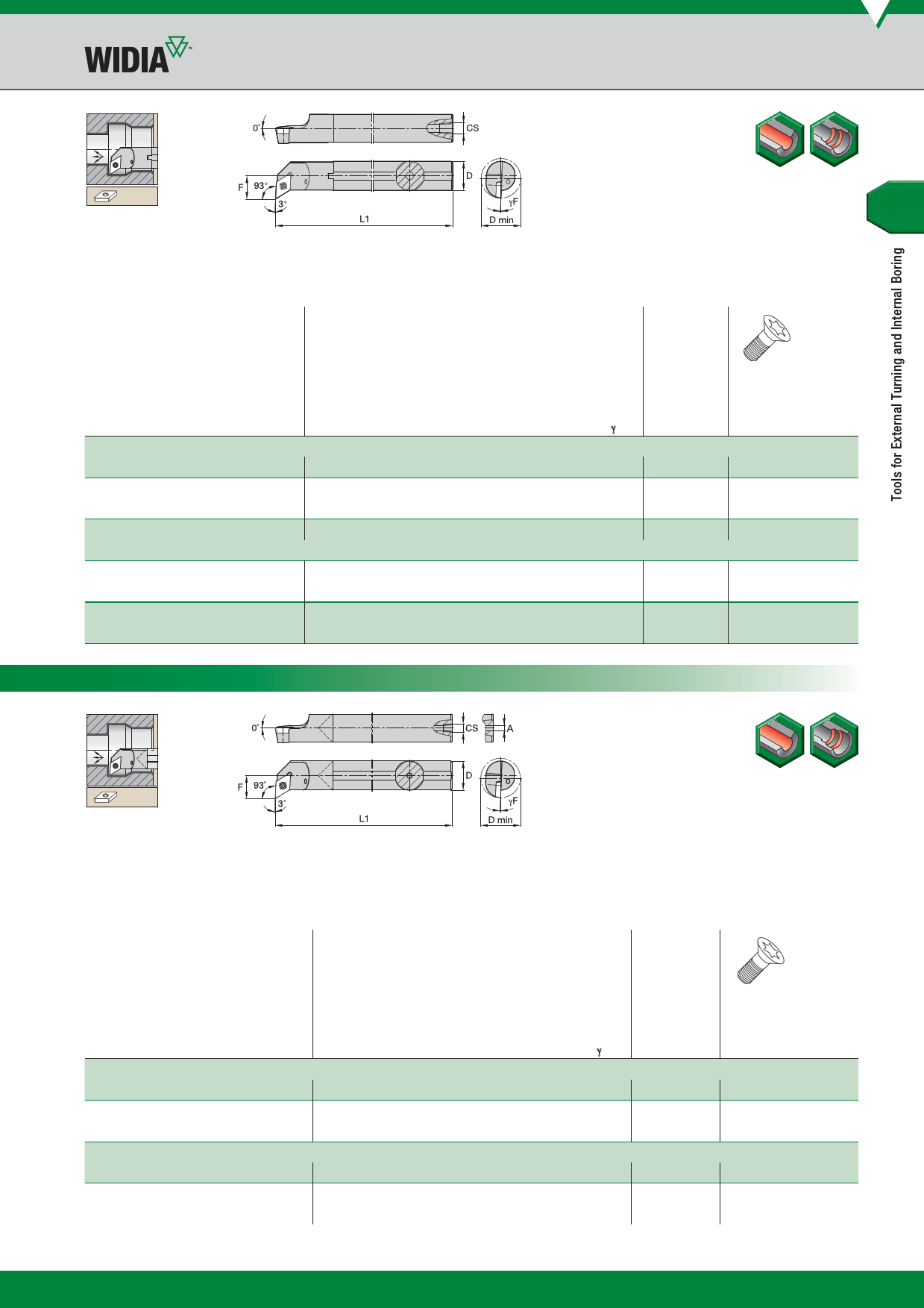

S-Style Clamping Boring Bars for Positive Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-SDUP 93°
gage
order number
catalogue number
D
D min
F
L1
CS
aF° insert
right hand
5078360
A12MSDUPR07
12 16,0
9,0 150 1/16-27 NPT -2.0 DP..070204
5078364
A16RSDUPR07
16
20,0
11,0 200
1/8-27 NPT
0.0 DP..070204
5078368
A20SSDUPR11
20 25,0 13,0 250 1/8-27 NPT -2.0 DP..11T308
5078376
A25TSDUPR11
25 32,0 17,0 300 1/4-18 NPT 0.0 DP..11T308
left hand
5078329
A12MSDUPL07
12 16,0
9,0 150 1/16-27 NPT -2.0 DP..070204
5078363
A16RSDUPL07
16 20,0 11,0 200 1/8-27 NPT 0.0 DP..070204
5078367
A20SSDUPL11
20 25,0 13,0 250 1/8-27 NPT -2.0 DP..11T308
5078375
A25TSDUPL11
25 32,0 17,0 300 1/4-18 NPT 0.0 DP..11T308
insert
screw
MS1153
MS1153
MS1155
MS1155
MS1153
MS1153
MS1155
MS1155
Torx
T7
T7
T15
T15
T7
T7
T15
T15
Carbide Shank with Through Coolant
Carbide shank with
through coolant.
See pages B47–B64
for inserts.
E-SDUP 93°
order number
catalogue number
D
D min
F
L1 A aF°
gage
insert
right hand
5093591
E12QSDUPR07
12 16,0
9,0 179 4,8 -2.0 DP..070204
5093634
E16RSDUPR07
16 20,0 11,0 199 5,5 0.0 DP..070204
5093639
E20SSDUPR11
20 25,0 13,0 253 7,1 -2.0 DP..11T308
left hand
5093429
E12QSDUPL07
12 16,0
9,0 179 4,8 -2.0 DP..070204
5093633
E16RSDUPL07
16 20,0 11,0 199 5,5 0.0 DP..070204
5093638
E20SSDUPL11
20 25,0 13,0 253 7,1 -2.0 DP..11T308
zakaz@widiahanita.ru
www.widiahanita.ru
insert
screw
MS1153
MS1153
MS1155
MS1153
MS1153
MS1155
Torx
T7
T7
T15
T7
T7
T15
