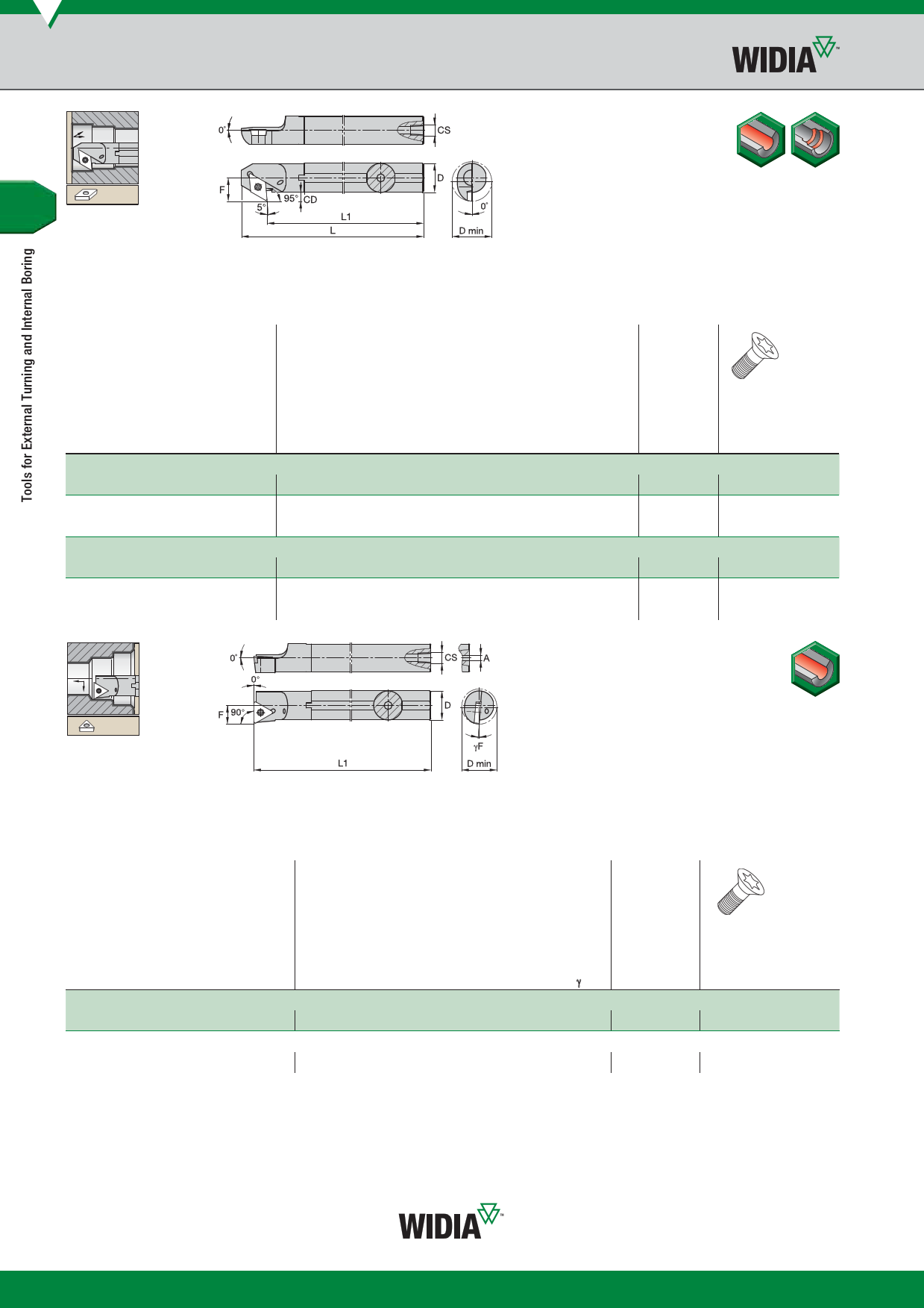

S-Style Clamping Boring Bars for Positive Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B47–B64
for inserts.
A-SDXP 95°
order number catalogue number D D min
F
L1
L
CD
CS
gage
insert
right hand
5078401
A12MSDXPR07
12 16,0
9,0 150 162,0 3,09 1/16-27 NPT DP..070204
5078405
A16RSDXPR07
16 20,0 11,0 200 212,0 3,20 1/8-27 NPT DP..070204
5078430
A20SSDXPR11
20 25,0 13,0 250 270,0 4,31 1/8-27 NPT DP..11T308
left hand
5078400
A12MSDXPL07
12 16,0
9,0 150 162,0 3,09 1/16-27 NPT DP..070204
5078404
A16RSDXPL07
16 20,0 11,0 200 212,0 3,20 1/8-27 NPT DP..070204
5078409
A20SSDXPL11
20 25,0 13,0 250 270,0 4,31 1/8-27 NPT DP..11T308
insert
screw
MS1153
MS1153
MS1155
MS1153
MS1153
MS1155
Torx
T7
T7
T15
T7
T7
T15
Steel shank with
through coolant.
See pages B81–B93
for inserts.
A-STFC 90°
order number
catalogue number
D
D min
F
L1
A
aF°
gage
insert
right hand
3883382
A10KSTFCR11
10 13,0 7,0 125 3,2 -7.0 TC..110204
left hand
3883443
A10KSTFCL11
10 13,0 7,0 125 3,2 -7.0 TC..110204
insert
screw
MS1153
MS1153
Torx
T7
T7
