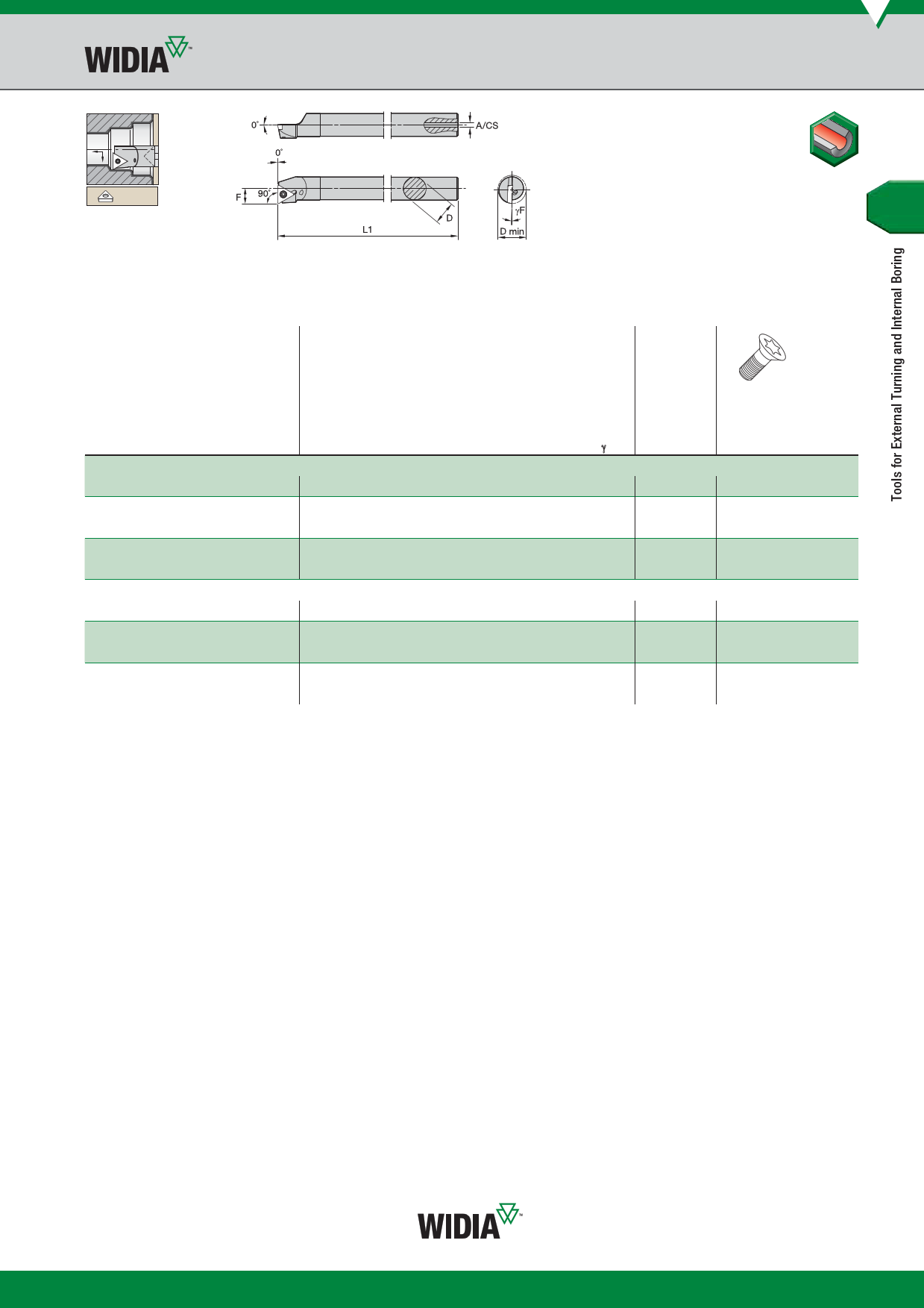

S-Style Clamping Boring Bars for Positive Inserts
Carbide Shank with Through Coolant
Carbide shank with
through coolant.
See pages B81–B93
for inserts.
E-STFC 90°
order number catalogue number D D min
F
L1 A
CS
aF°
gage
insert
insert
screw
Torx
right hand
2031888
E10MSTFCR11
10 13,0
7,0 150 3,5
—
-10.0 TC..110204 12148068700
T8
2031024
E12QSTFCR11
12 16,0
9,0 180 4,5
—
-8.0 TC..110204 12148068700
T8
2010174
E16RSTFCR16
16 20,0 11,0 200 4,5
—
-9.0 TC..16T308 12148038800 15
2023626
E20SSTFCR16
20 25,0 13,0 250 — G 1/8 -7.0 TC..16T308 12148038800 T15
2023631
E25TSTFCR16
25 32,0 17,0 300 — G 1/4 -5.0 TC..16T308 12148038800 T15
left hand
2010090
E10MSTFCL11
10 13,0
7,0 150 3,5
—
-10.0 TC..110204 12148068700
T8
2010120
E12QSTFCL11
12 16,0
9,0 180 4,5
—
-8.0 TC..110204 12148068700
T8
2023618
E16RSTFCL16
16 20,0 11,0 200 4,5
—
-9.0 TC..16T308 12148038800 T15
2023625
E20SSTFCL16
20 25,0 13,0 250 — G 1/8 -7.0 TC..16T308 12148038800 T15
2010233
E25TSTFCL16
25 32,0 17,0 300 — G 1/4 -5.0 TC..16T308 12148038800 T15
