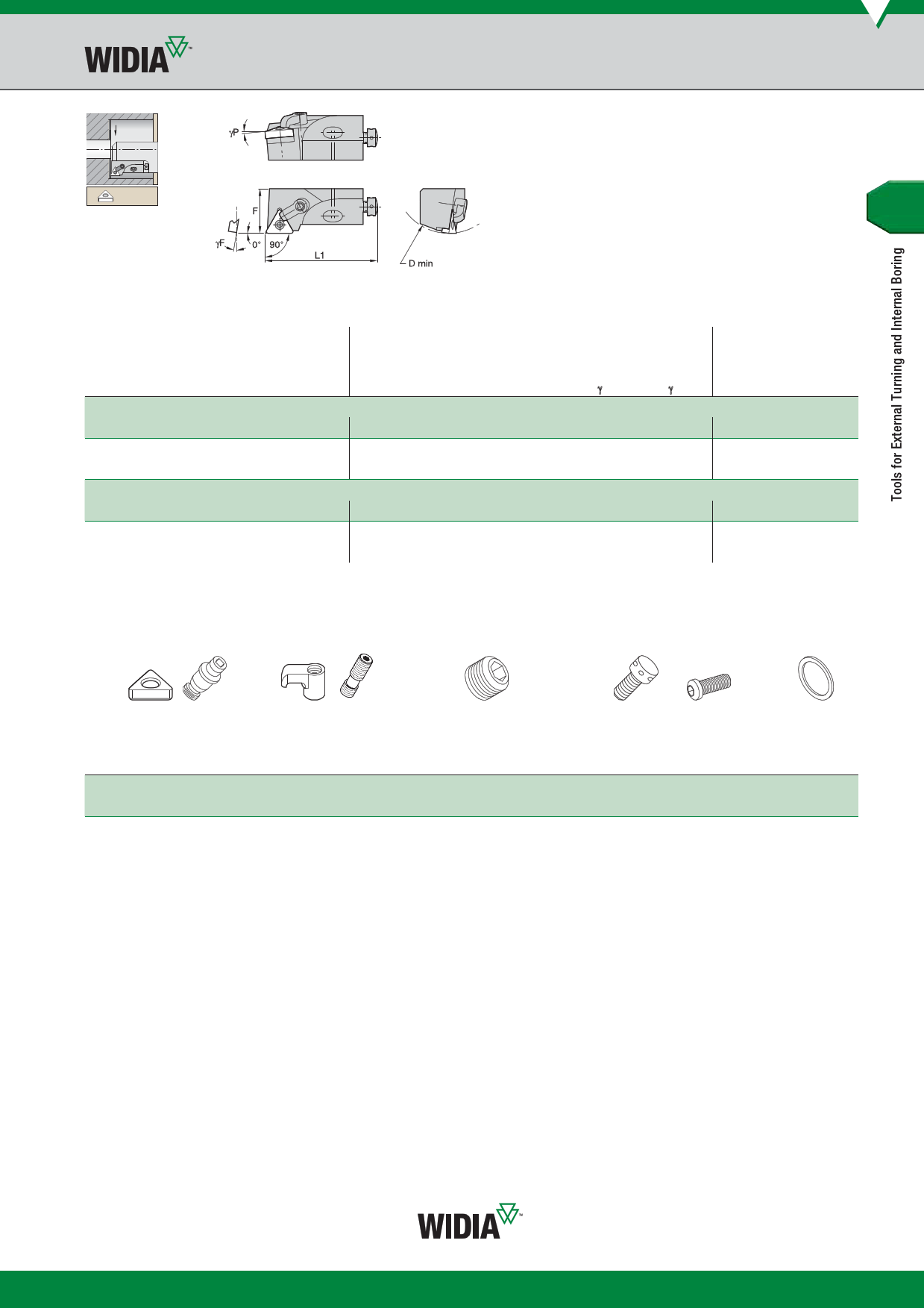

M-Style Clamping Cartridges for Negative Inserts
See pages B81–B93
for inserts.
MTGN 90°
order number
catalogue number
D min
F
L1 aF° aP°
gage
insert
right hand
3871296
MTGNR12CA16
50,0 20,0 55 -9.0 -5.0 TN..160408/TN..332
3871295
MTGNR16CA16
60,0 25,0 63 -9.0 -5.0 TN..160408/TN..332
3871294
MTGNR20CA22
70,0 25,0 70 -9.0 -5.0 TN..220408/TN..432
left hand
3871299
MTGNL12CA16
50,0 20,0 55 -9.0 -5.0 TN..160408/TN..332
3871298
MTGNL16CA16
60,0 25,0 63 -9.0 -5.0 TN..160408/TN..332
3871297
MTGNL20CA22
70,0 25,0 70 -9.0 -5.0 TN..220408/TN..432
Spare Parts
D min shim lock pin hex
clamp
clamp screw
hex
50 — KLM33L 2 mm CKM34 STCM38 2 mm
60 ITSN322 KLM34L 2 mm CKM34 STCM9 2 mm
70 ITSN433 KLM46 2.5 mm CKM35 STCM37 2.5 mm
radial
adjusting
screw
KUAM22
KUAM25
KUAM25
hex
2 mm
2 mm
2.5 mm
axial
adjusting
screw
KUAM31
KUAM32
KUAM32
mounting
screw hex
washer
191.406 4 mm CSWM 060 050
191.407 5 mm CSWM 080 050
191.407 5 mm CSWM 080 050
