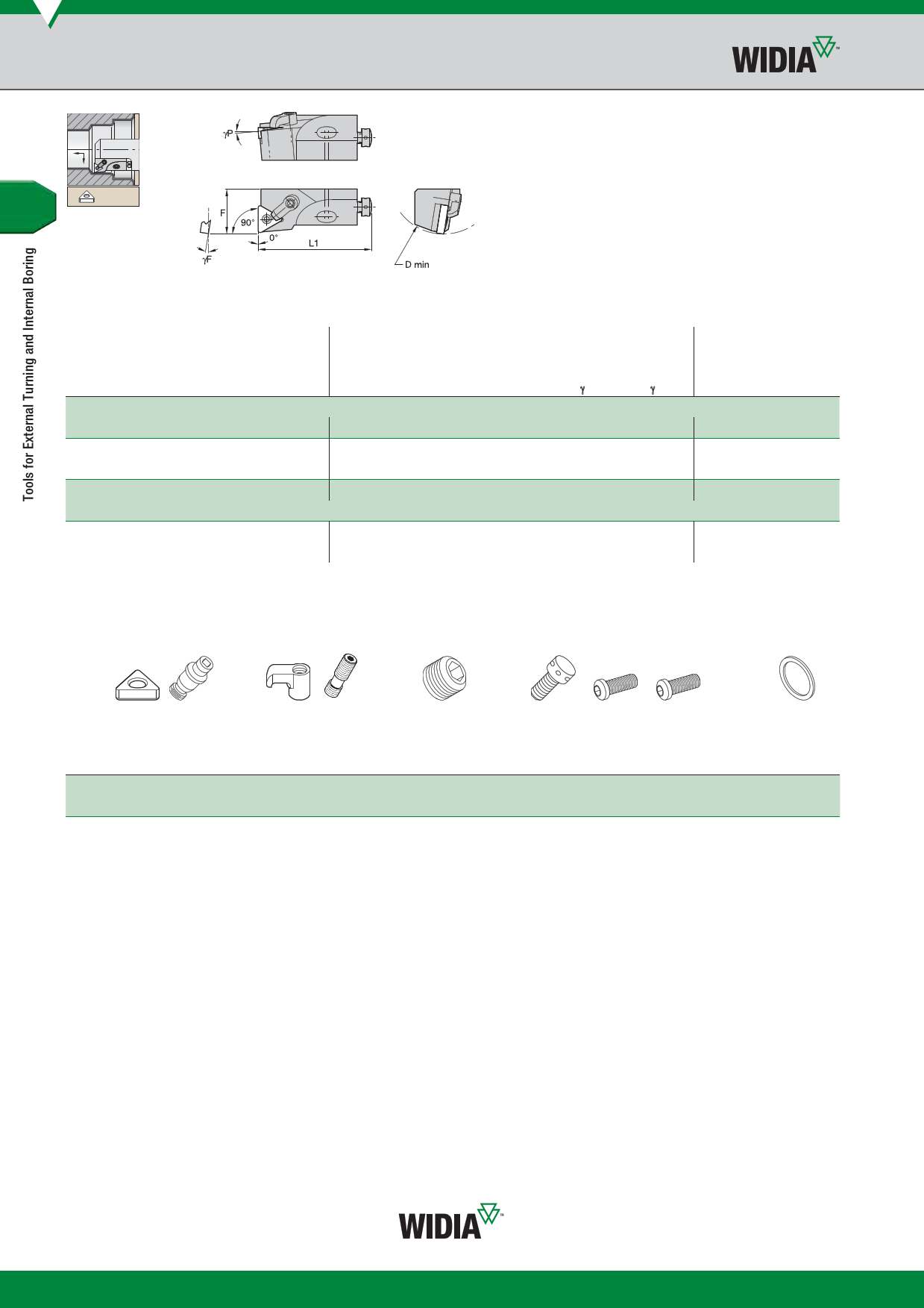

M-Style Clamping Cartridges for Negative Inserts
See pages B81–B93
for inserts.
MTFN 90°
order number
catalogue number
D min
F
L1 aF° aP°
gage
insert
right hand
3871303
MTFNR12CA16
50,0 20,0 55 -9.0 -5.0 TN..160408/TN..332
3871302
MTFNR16CA16
60,0 25,0 63 -9.0 -5.0 TN..160408/TN..332
3871301
MTFNR20CA22
70,0 25,0 70 -9.0 -5.0 TN..220408/TN..432
3871300
MTFNR25CA27
100,0 32,0 100 -9.0 -5.0 TN..270612/TN..443
left hand
3871306
MTFNL12CA16
50,0 20,0 55 -9.0 -5.0 TN..160408/TN..332
3871305
MTFNL16CA16
60,0 25,0 63 -9.0 -5.0 TN..160408/TN..332
Spare Parts
D min
50
60
70
100
shim
lock clamp
pin hex clamp screw hex
— KLM33L 2 mm CKM34 STCM38 2 mm
ITSN322 KLM34L 2 mm CKM34 STCM9 2 mm
ITSN433 KLM46 2.5 mm CKM35 STCM37 2.5 mm
ITSN534 KLM58 3 mm CKM38 STCM39 3 mm
radial
adjusting
screw
KUAM22
KUAM25
KUAM25
KUAM26
axial
adjusting
hex screw
2 mm KUAM31
2 mm KUAM32
2.5 mm KUAM32
3 mm KUAM32
mounting
screw
191.406
191.407
191.407
—
holding
screw
—
—
—
MS364
hex
4 mm
5 mm
5 mm
8 mm
washer
CSWM 060 050
CSWM 080 050
CSWM 080 050
CSWM 100 080
C102
