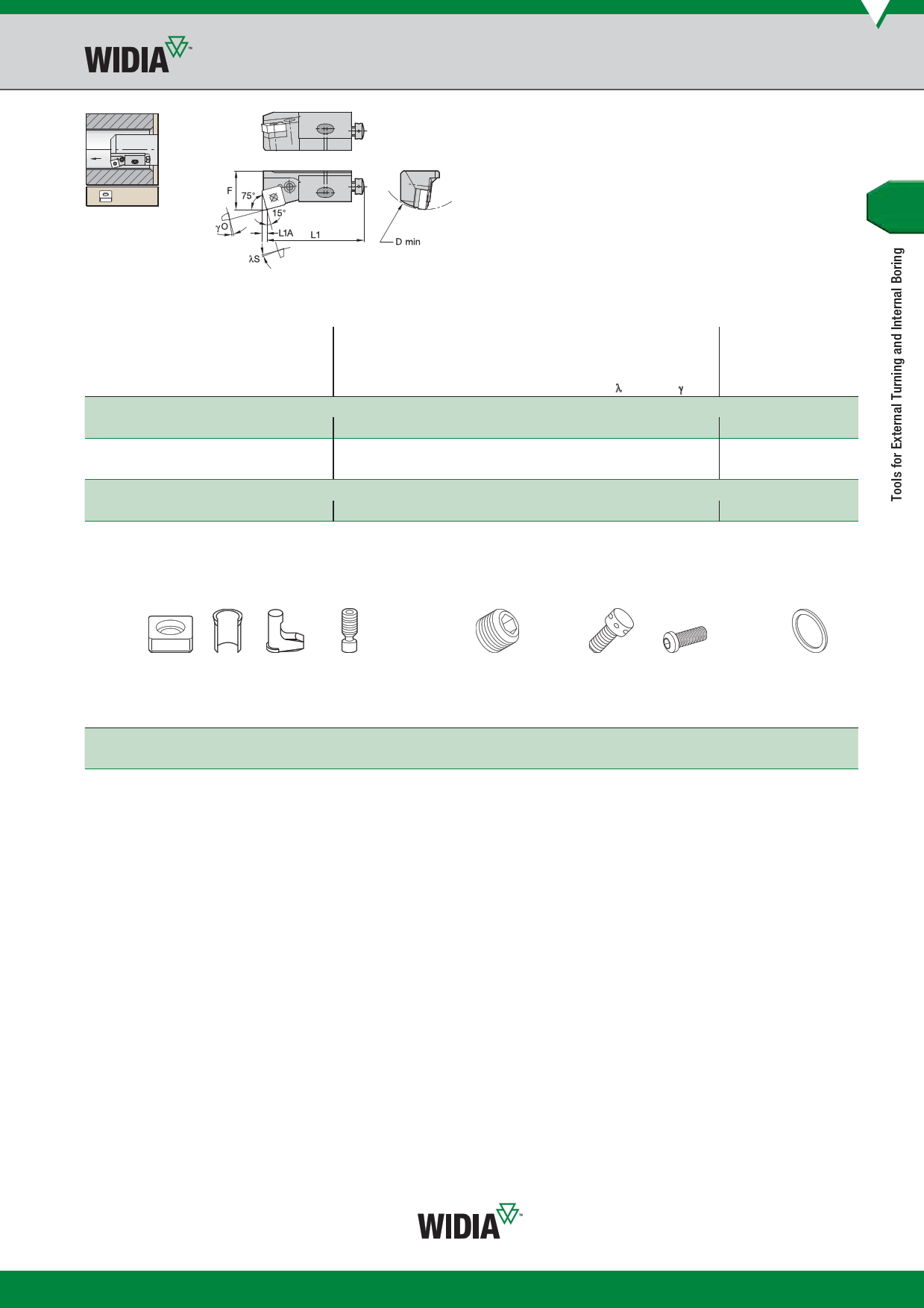

P-Style Clamping Cartridges for Negative Inserts
See pages B68–B80
for inserts.
PSKN 75°
order number
catalogue number
D min
F
L1 L1A hS° aO°
gage
insert
right hand
3871287
PSKNR12CA12
50,0 20,0 55 3,1 -8.0 -6.0 SN..120408/SN..432
3871286
PSKNR16CA12
60,0 25,0 63 3,1 -6.0 -6.0 SN..120408/SN..432
3871289
PSKNR20CA15
70,0 25,0 70 3,8 — — SN..150612/SN..543
left hand
3871288
PSKNL16CA12
60,0 25,0 63 3,1 -6.0 -6.0 SN..120408/SN..432
Spare Parts
D min
50
60
70
shim
—
512.063
512.025
shim
pin
—
513.023
513.025
toggle
lever
511.022
511.023
511.025
wrench size
lever screw lever screw
514.122
10 IP
514.123
15 IP
514.125
15 IP
radial
adjusting
screw
KUAM28
KUAM23
KUAM23
hex
2 mm
2.5 mm
2.5 mm
axial
adjusting
screw
KUAM31
KUAM32
KUAM32
mounting
screw
191.406
191.407
191.407
hex
4 mm
5 mm
5 mm
washer
CSWM 060 050
CSWM 080 050
CSWM 080 050
