WMT™ Turning, Grooving, Cut-off, and Proling

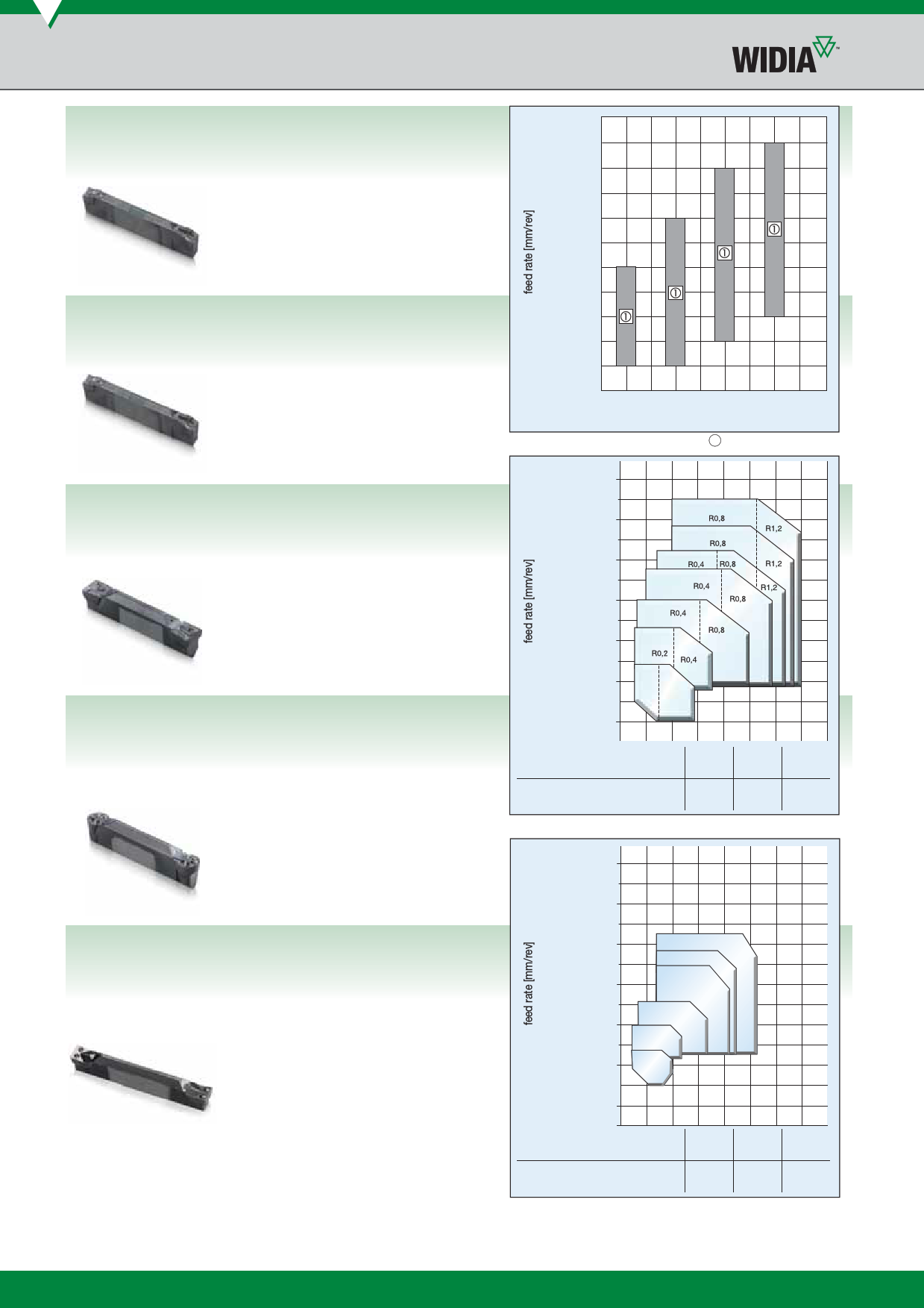

Feed Values for Grooving Inserts
CM Cut-Off Medium • Double-ended, V-bottom, and top, mechanically
clamped.
• Neutral, right-, and left-hand lead angles up to 12.
• Designed to increase speed and feed.
• Chip geometry designed for excellent chip control
and minimised cutting pressure on various materials.
CM-W Cut-Off
Medium with Wiper
• Wiper flats where surface finish is critical.
• Double-ended, V-bottom, and top, mechanically
clamped.
• Neutral, right-, and left-hand lead angles up to 12.
• Designed to increase speed and feed.
• Chip geometry designed for excellent chip control
and minimised cutting pressure on various materials.
• Ideal for 300 Series stainless steel, tool steel,
titanium, INCONEL®, and other nickel-based alloys
at moderate speeds and feeds.
PT Plunge, Groove,
and Turn Inserts
• High positive rake geometry for low cutting force,
especially in soft materials.
• Deep grooving tool for plunge and turn
O.D. and face grooving operations.
• Delivers chip control over full range of DOC
when turning.
• Cuts in both axial and radial directions.
0,30
0,28
0,25
0,23
0,20
0,18
0,15
0,13
0,10
0,08
0,05
width of cut
[mm]
1,5 and 2,0
6,3
2,5 3,0 4,0
1 Recommended Starting Feed
5,5 size 8
size 7
4,0 size 6
size 5
2,5
size 4
1,6 size 3
PC Grooving and
Proling Inserts
• Superior chip control.
• Full nose radius geometry for plunge
and contour operations.
• Effective cutting edge geometry exceeds
180° for increased versatility.
1,0 size 2
R0,2
R1,06
0,5
turn/profile feed
mm/rev
plunge groove feed
mm/rev
0,1
0,05
0,16 0,25
0,4
0,1 0,16 0,30
PH Plunge, Groove,
and Turn Inserts
• Excellent performance in greater than 35 HRC.
• Deep grooving tool for plunge and turn O.D.
and face grooving operations.
• Delivers chip control over full range of DOC
when turning.
• Delivers superior chip control in interrupted cuts.
6,3
5,5
4,0
size 8
size 6
2,5 size 5
size 4
1,6
size 3
1,0 size 2
0,5
turn/profile feed
mm/rev
plunge groove feed
mm/rev
0,1
0,05
0,16 0,25
0,4
0,1 0,16 0,30
E12
