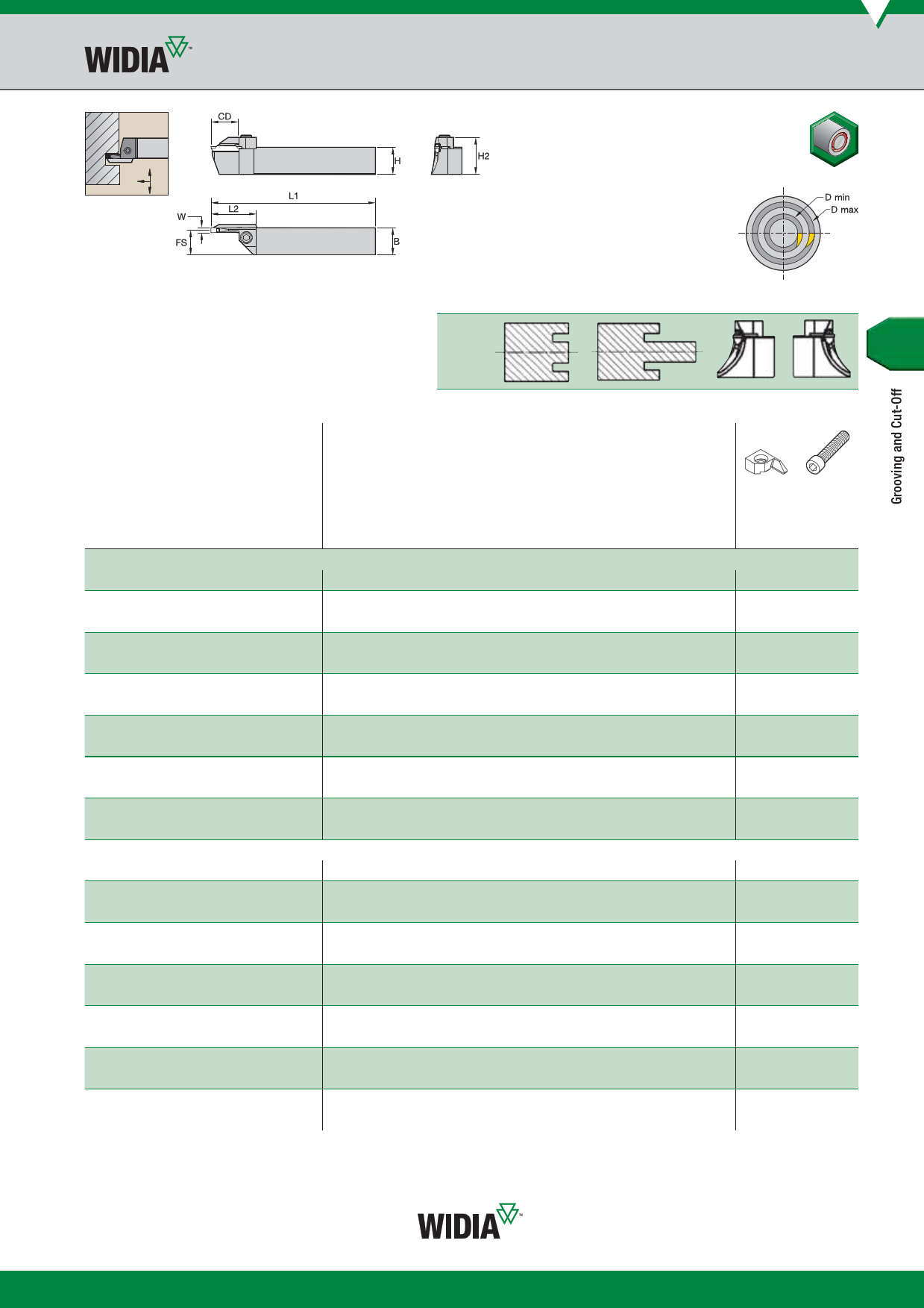

WMT™ Turning, Grooving, and Cut-Off
Integral Toolholders for Face Grooving
Left Hand Tool
Curve Out
Blade
Style
Curve
Out
Part Shape
Left Hand Right Hand
order number
catalogue number
seat clamp
size W H B FS CD D max D min H2 L1 L2 clamp screw
right hand
3653421
WMTBR2525M313-038-052 3 3,00 24,8 24,8 23,5 13
52
38 32 150 34
—
619205
3653423
WMTBR2525M316-052-070 3 3,00 24,8 24,8 23,5 16
70
52 32 150 34
—
619205
3653425
WMTBR2525M316-070-100 3 3,00 24,8 24,8 23,5 16 100
70 32 150 34
—
619205
3653427
WMTBR2525M319-100-205 3 3,00 25,0 24,8 23,5 19 205
100 32 150 37
—
619205
3653764
WMTBR2525M412-032-052 4 4,00 24,8 24,8 23,0 13
52
32 32 150 34
—
619205
3653766
WMTBR2525M415-052-070 4 4,00 24,8 24,8 23,0 16
70
52 32 150 34
—
619205
3653770
WMTBR2525M418-100-205 4 4,00 24,8 24,8 23,0 19 205
100 32 150 37
—
619205
3653431
WMTBR2525M519-052-070 5 5,00 24,8 24,8 22,5 19
70
52 34 150 38 446102 619168
3653433
WMTBR2525M519-070-100 5 5,00 24,8 24,8 22,5 19 100
70 34 150 42 446104 619168
3653435
WMTBR2525M525-100-205 5 5,00 24,8 24,8 22,5 25 205
100 34 150 42 446104 619168
3653437
WMTBR2525M616-038-052 6 6,00 24,8 24,8 22,0 16
52
38 35 150 38 446102 619168
3653441
WMTBR2525M619-070-100 6 6,00 24,8 24,8 22,0 19 100
70 36 150 42 446104 619168
3653443
WMTBR2525M625-100-205 6 6,00 24,8 24,8 22,0 25 205
100 34 150 42 446104 619168
left hand
3653422
WMTBL2525M313-038-052 3 3,00 24,8 24,8 23,5 13 52
38 32 150 34
—
619205
3653424
WMTBL2525M316-052-070 3 3,00 24,8 24,8 23,5 16
70
52 32 150 34
—
619205
3653426
WMTBL2525M316-070-100 3 3,00 24,8 24,8 23,5 16 100
70 32 150 34
—
619205
3653428
WMTBL2525M319-100-205 3 3,00 24,8 24,8 23,5 19 205
100 32 150 37
—
619205
3653765
WMTBL2525M412-032-052 4 4,00 24,8 24,8 23,0 13
52
32 32 150 34
—
619205
3653767
WMTBL2525M415-052-070 4 4,00 24,8 24,8 23,0 16
70
52 32 150 34
—
619205
3653769
WMTBL2525M415-070-100 4 4,00 24,8 24,8 23,0 16 100
70 32 150 34
—
619205
3653771
WMTBL2525M418-100-205 4 4,00 24,8 24,8 23,0 19 205
100 32 150 37
—
619205
3653432
WMTBL2525M519-052-070 5 5,00 24,8 24,8 22,5 19
70
52 34 150 38 446101 619168
3653434
WMTBL2525M519-070-100 5 5,00 24,8 24,8 22,5 19 100
70 34 150 42 446103 619168
3653436
WMTBL2525M525-100-205 5 5,00 24,8 24,8 22,5 25 205
100 34 150 42 446103 619168
3653438
WMTBL2525M616-038-052 6 6,00 24,8 24,8 22,0 16 52
38 35 150 38 446101 619168
3653444
WMTBL2525M625-100-205 6 6,00 24,8 24,8 22,0 25 205
100 34 150 42 446103 619168
NOTE: Initial cut of tool must be between D min and D max. Due to the insert being positioned 0,75mm above centre, minimum diameter after initial cut is 12,6mm.
Toolholders that accept 3mm and 4mm width inserts have an integral clamp.
Toolholders that accept 5mm and 6mm width inserts are supplied with a detachable clamp.
