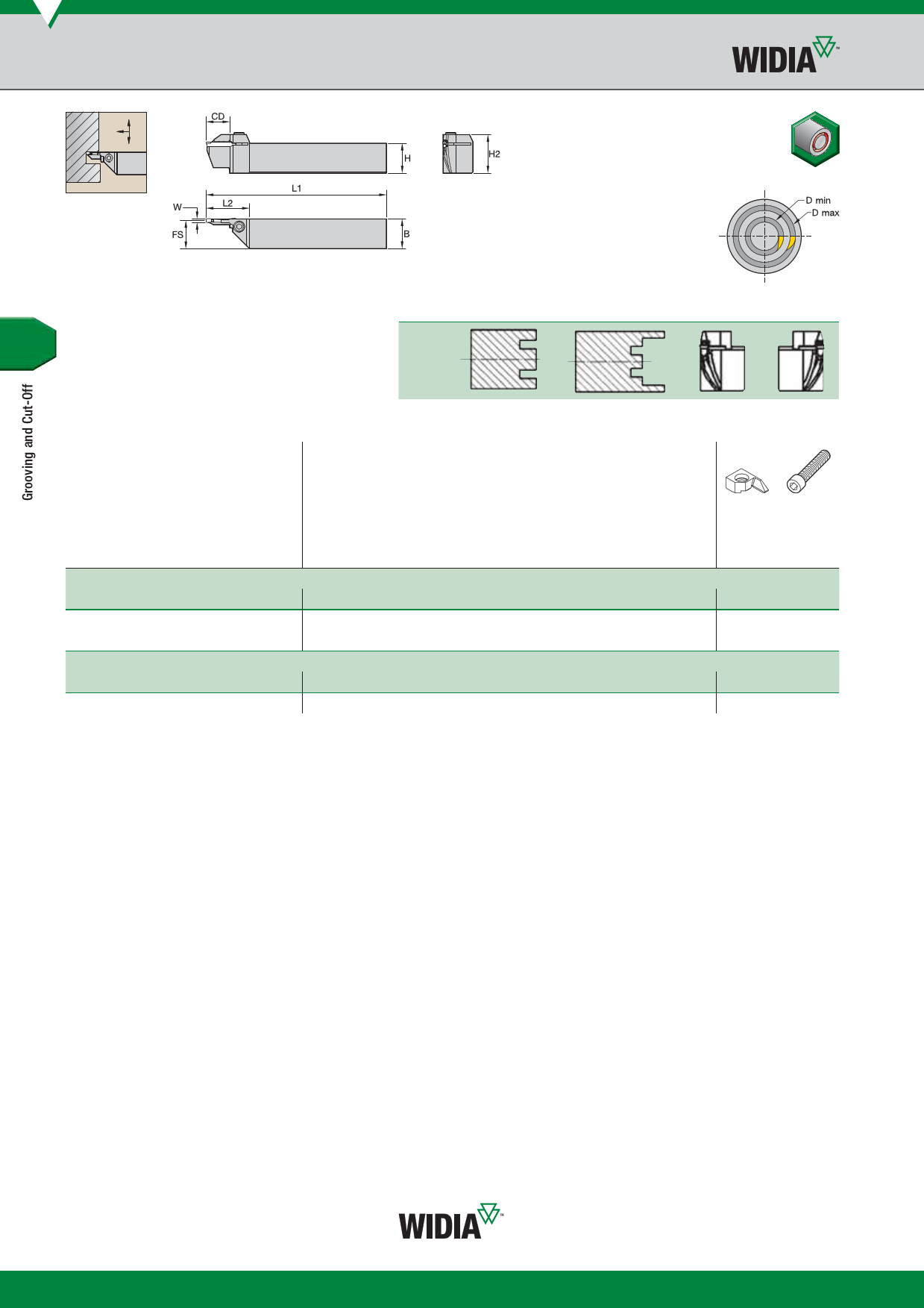

WMT™ Turning, Grooving, and Cut-Off
Integral Toolholders for Face Grooving
Curve In
Left Hand Tool
Blade
Style
Curve
In
Part Shape
Left Hand Right Hand
order number
catalogue number
seat
size W H B FS CD D max D min H2 L1 L2
right hand
3634282
WMTAR2525M316-070-100 3 3,00 24,8 24,8 23,5 16 100
70 32 150 34
clamp
—
clamp
screw
MS326
3634284
WMTAR2525M319-100-205 3 3,00 24,8 24,8 23,5 19 205
100 32 150 37
—
MS326
3634290
WMTAR2525M619-070-100 6 6,00 24,8 24,8 22,0 19 100
70 34 150 42 446104 619168
left hand
3634283
3634285
WMTAL2525M316-070-100 3 3,00 24,8 24,8 23,5 16 100
WMTAL2525M319-100-205 3 3,00 24,8 24,8 23,5 19 205
70 32 150 34
100 32 150 37
—
—
MS326
MS326
NOTE: Initial cut of tool must be between D min and D max. Due to the insert being positioned 0,75mm above centre, minimum diameter after initial cut is 12,6mm.
Toolholders that accept 3mm and 4mm width inserts have an integral clamp.
Toolholders that accept 5mm and 6mm width inserts are supplied with a detachable clamp.
