TopGroove™

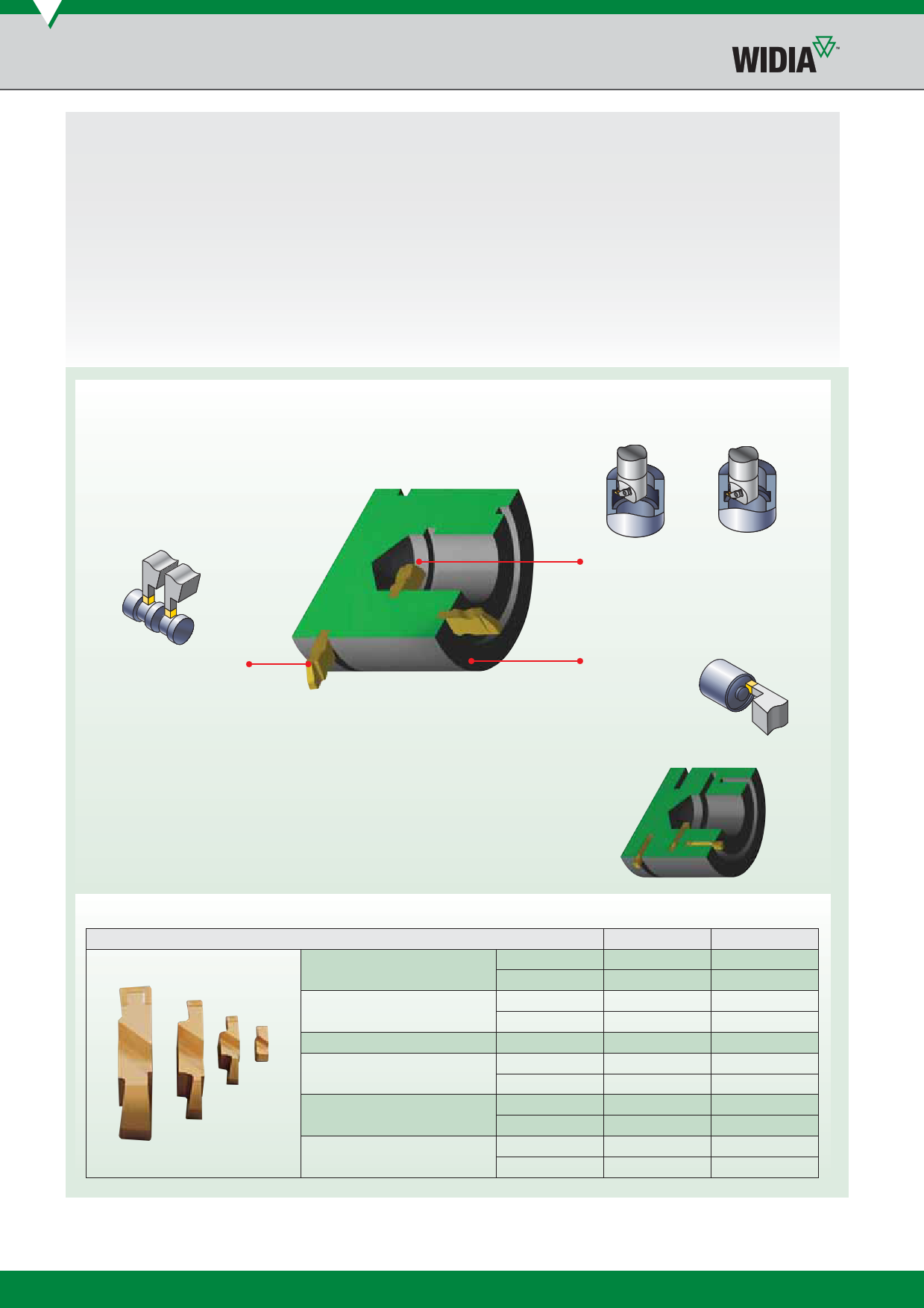

Choosing the Correct TopGroove Cutter
The Most Advanced Turning Solutions in the Industry
Perfect for shallow grooving operations, the WIDIA™ TopGroove clamping system
provides a complete line of grooving geometries and an extensive grade selection
to meet even the most demanding application requirements. For increased rigidity,
versatility, chip control, and carbide grade options, the TopGroove clamping system
is the proven solution.
With maximum clamping rigidity and superior versatility, TopGroove inserts employ a
unique top rake chip control geometry that efficiently evacuates chips and produces
better quality parts, faster than ever before.
What you need to know:
• Material being machined.
• Groove depth, width, and profile.
• Application to be performed (face, O.D., or I.D. grooving).
• Toolholder requirements (e.g. KM™, ERICKSON™,
square shank, right/left).
Utilise this comprehensive, easy-to-use guide for the information necessary to identify,
choose, and select the appropriate cutting tools for your specific needs.
1 Choose the application to be performed:
Groove depth, width, and profile.
TopGroove is the best choice for groove depth-to-width ratios of 1.5 or less.
Outside Diameter
(O.D.) Grooving
Inside Diameter
(I.D.) Grooving
Face Grooving
For deep grooving, use WMT™ on page E4.
TopGroove™ for Internal, External, and Face Grooving Applications
system capabilities
O.D./I.D. Grooving
Face Grooving
Internal Grooving
Face Grooving Diameter
Deep O.D./I.D. Grooving
Deep Face Grooving
width
depth
width
depth
diameter
standard
deep
width
depth
width
depth
E42
zakaz@widiahanita.ru
www.widiahanita.ru
minimum
0,50mm
—
3,2mm
—
11,2mm
23,9mm
—
1,50mm
—
3,18mm
—
maximum
9,53mm
12,7mm
6,35mm
12,7mm
—
—
—
6,35mm
12,7mm
6,35mm
12,7mm
