TopGroove™

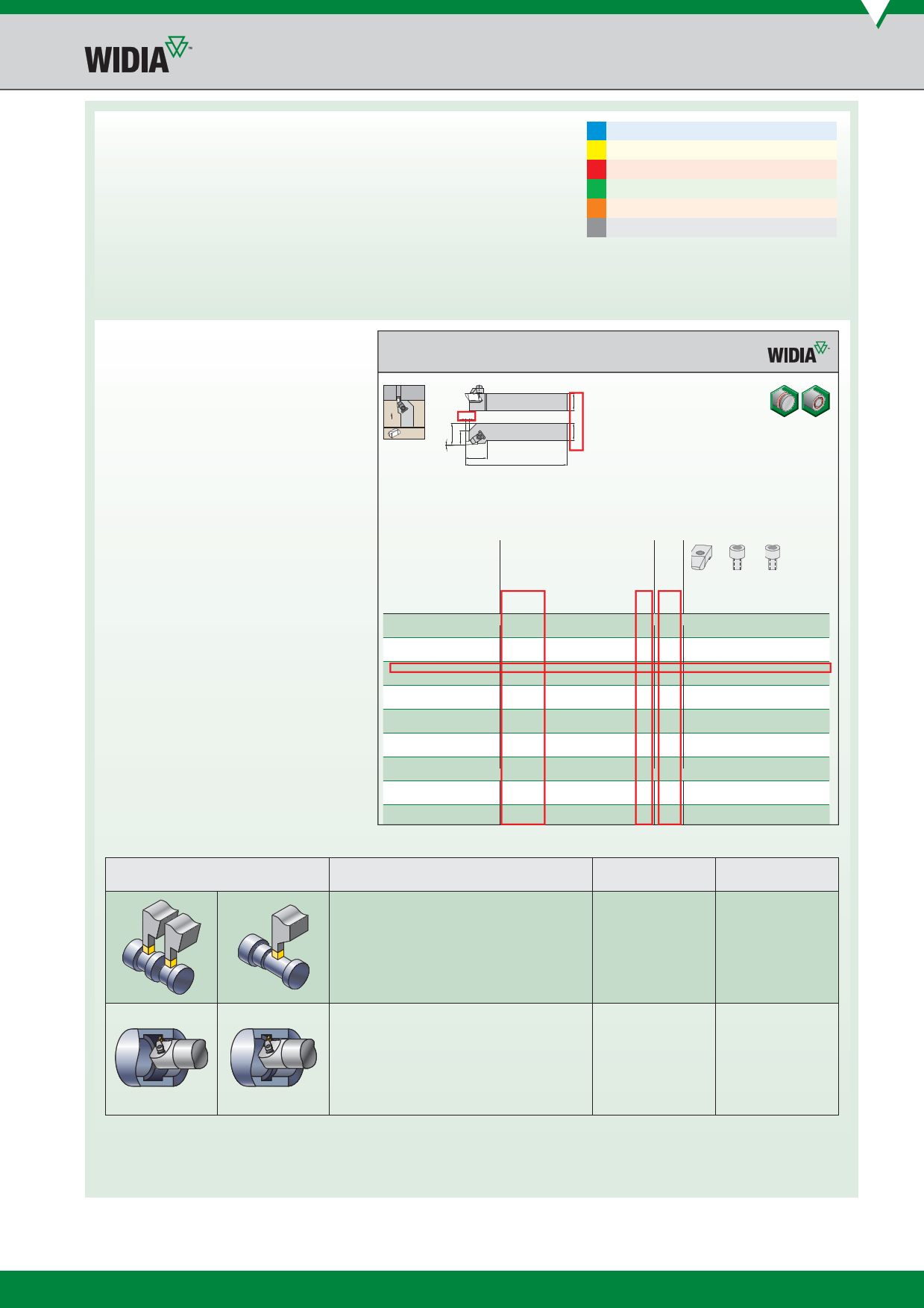

Choosing the Correct TopGroove Cutter
2 Identify the material to be machined:
Each tool has a material grid marked with a letter
indicating the materials that can be machined.
P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
3 Select your toolholder based on the
application:
A Choose the appropriate gage insert
(width) required for the application.
B Choose the shortest cutting depth “CD”
dimension for increased tool rigidity.
C Select the largest toolholder shank “H”
and “B” dimensions for maximum rigidity.
TopGroove™
Toolholders
B CD
F B4
3°
L2
L1
HC
B
n NS
C BA
gage
clamp
clamp
order number catalogue number H B F L1 L2 B4 CD insert clamp screw screw
right hand
3641682
NSR1010E2
10,0 10,0 14,0 70 19 9 4 N.2R CM74 MS1200
—
3641660
NSR1212F2
12,0 12,0 16,0 80 19 9 4 N.2R CM74 MS1200
—
3636542
NSR1616H2
16,0 16,0 20,0 100 19 9 4 N.2R CM74 MS1200
—
3638589
NSR2020K2
20,0 20,0 25,0 125 19 9 4 N.2R CM74 MS1200
—
3638588
NSR2020K3
20,0 20,0 25,0 125 32 13 5 N.3R CM72LP
— MS2111
3638590
NSR2525M2
25,0 25,0 32,0 150 19 9 4 N.2R CM74 MS1200
—
3636536
NSR2525M3 25,0 25,0 32,0 150 32 13 5 N.3R CM72LP — MS2111
3636540
NSR2525M4 25,0 25,0 32,0 150 35 14 7 N.4R CM72LP — MS2111
3641664
NSR3225P3
32,0 25,0 32,0 170 32 13 5 N.3R CM72LP — MS2111
3641675
NSR3225P4
32,0 25,0 32,0 170 35 14 7 N.4R CM72LP — MS2111
3641666
NSR3232P3
32,0 32,0 40,0 170 32 13 5 N.3R CM72LP
— MS2111
3641669
NSR3232P4
32,0 32,0 40,0 170 35 14 7 N.4R CM72LP
— MS2111
left hand
3641683
NSL1010E2
10,0 10,0 14,0 70 19 9 4 N.2L CM75 MS1200
—
3641681
NSL1212F2
12,0 12,0 16,0 80 19 9 4 N.2L CM75 MS1200
—
3636545
NSL1616H2
16,0 16,0 20,0 100 19 9 4 N.2L CM75 MS1200
—
3639045
NSL2020K2
20,0 20,0 25,0 125 19 9 4 N.2L CM75 MS1200
—
hex/
Torx
Plus
T10
T10
T10
T10
25 IP
T10
25 IP
25 IP
25 IP
25 IP
25 IP
25 IP
T10
T10
T10
T10
application
conventional
toolholders
modular
blades
O.D. Grooving and Plunge and Turn
pages E74–E76
—
I.D. Grooving
pages E78–E79
—
