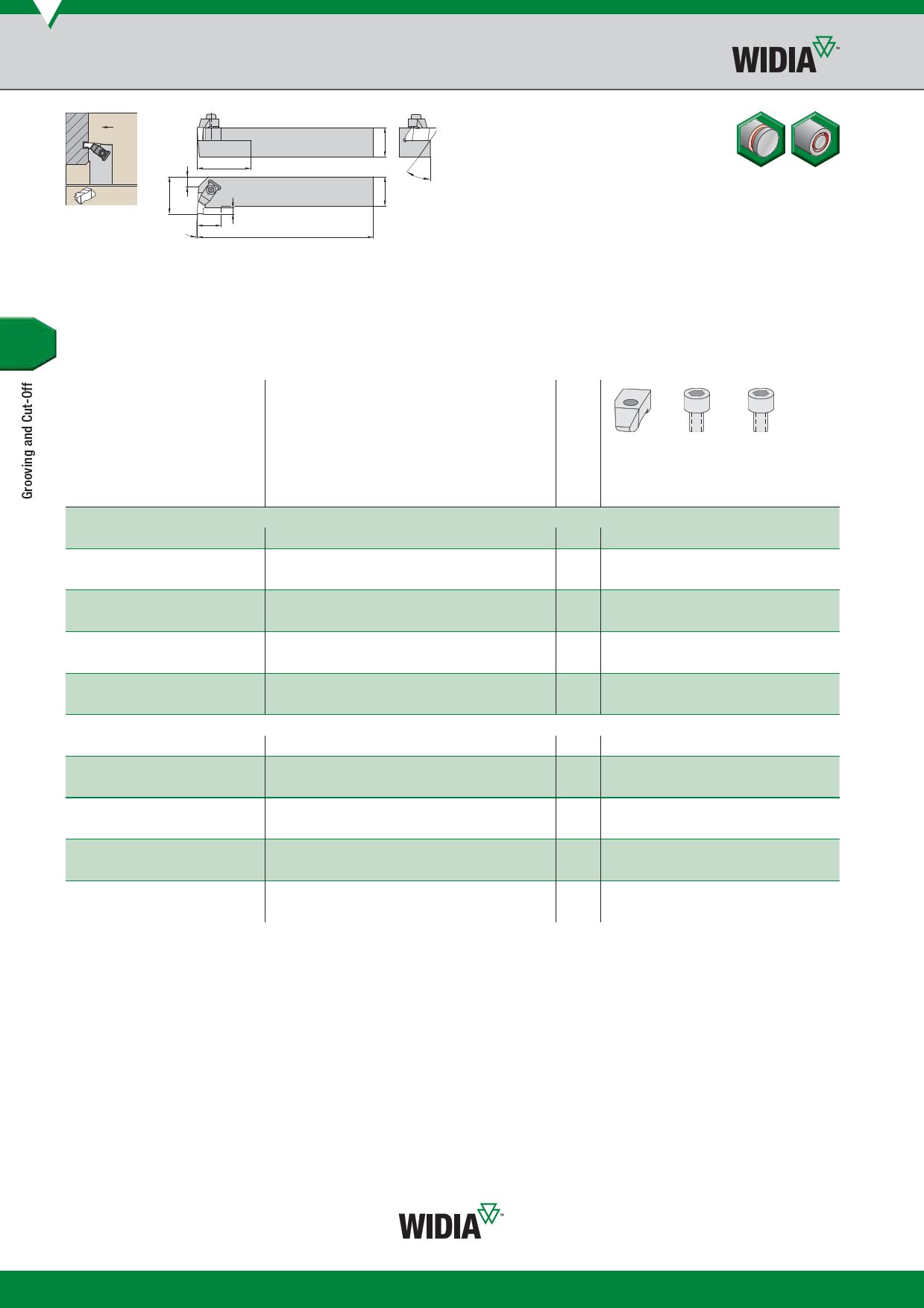

TopGroove™
Toolholders
для размещения заказа - zakaz@widiahanita.ru
L4
B4
F
3°
CD
L2
L1
Right-hand toolholder shown.
H
35°
B
NE
gage
order number catalogue number H B F L1 L2 L4 B4 CD insert clamp
right hand
3641674
NER1616H2
16,0 16,0 20,0 100 15 25 — 4 N.2L CM75
3641658
NER2020K2
20,0 20,0 25,0 125 15 25 6 4 N.2L CM75
3641665
NER2525M2
25,0 25,0 32,0 150 15 25 12 4 N.2L CM75
3636541
NER2525M3
25,0 25,0 32,0 150 22 51 — 5 N.3L CM73LP
3641672
NER2525M4
25,0 25,0 35,0 150 24 51 — 7 N.4L CM73LP
3641680
NER3225P3
32,0 25,0 32,0 170 22 51 — 4 N.3L CM73LP
3641689
NER3225P4
32,0 25,0 35,0 170 24 51 — 7 N.4L CM73LP
3641693
NER3232P4
32,0 32,0 40,0 170 24 51 — 6 N.4L CM73LP
3641692
NER3232P5
32,0 32,0 50,0 170 35 51 — 11 N.5L CM81
left hand
3641684
NEL1616H2
16,0 16,0 20,0 100 15 25 — 4 N.2R CM74
3641677
NEL2020K2
20,0 20,0 25,0 125 15 25 6 4 N.2R CM74
3641676
NEL2525M2
25,0 25,0 32,0 150 15 25 12 4 N.2R CM74
3636543
NEL2525M3
25,0 25,0 32,0 150 22 51 — 5 N.3R CM72LP
3641668
NEL2525M4
25,0 25,0 35,0 150 24 51 — 7 N.4R CM72LP
3641685
NEL3225P3
32,0 25,0 32,0 170 22 51 — 4 N.3R CM72LP
3641694
NEL3225P4
32,0 25,0 35,0 170 24 51 — 7 N.4R CM72LP
3641696
NEL3232P4
32,0 32,0 40,0 170 24 51 — 6 N.4R CM72LP
3641695
NEL3232P5
32,0 32,0 50,0 170 35 51 — 11 N.5R CM80
NOTE: F dimension measured over sharp point of insert.
clamp
screw
MS1200
MS1200
MS1200
—
—
—
—
—
MS352
MS1200
MS1200
MS1200
—
—
—
—
—
MS352
clamp
screw
hex/
Torx
Plus
—
—
—
MS2111
MS2111
MS2111
MS2111
MS2111
—
T10
T10
T10
25 IP
25 IP
25 IP
25 IP
25 IP
6 mm
—
—
—
MS2111
MS2111
MS2111
MS2111
MS2111
—
T10
T10
T10
25 IP
25 IP
25 IP
25 IP
25 IP
6 mm
E76
