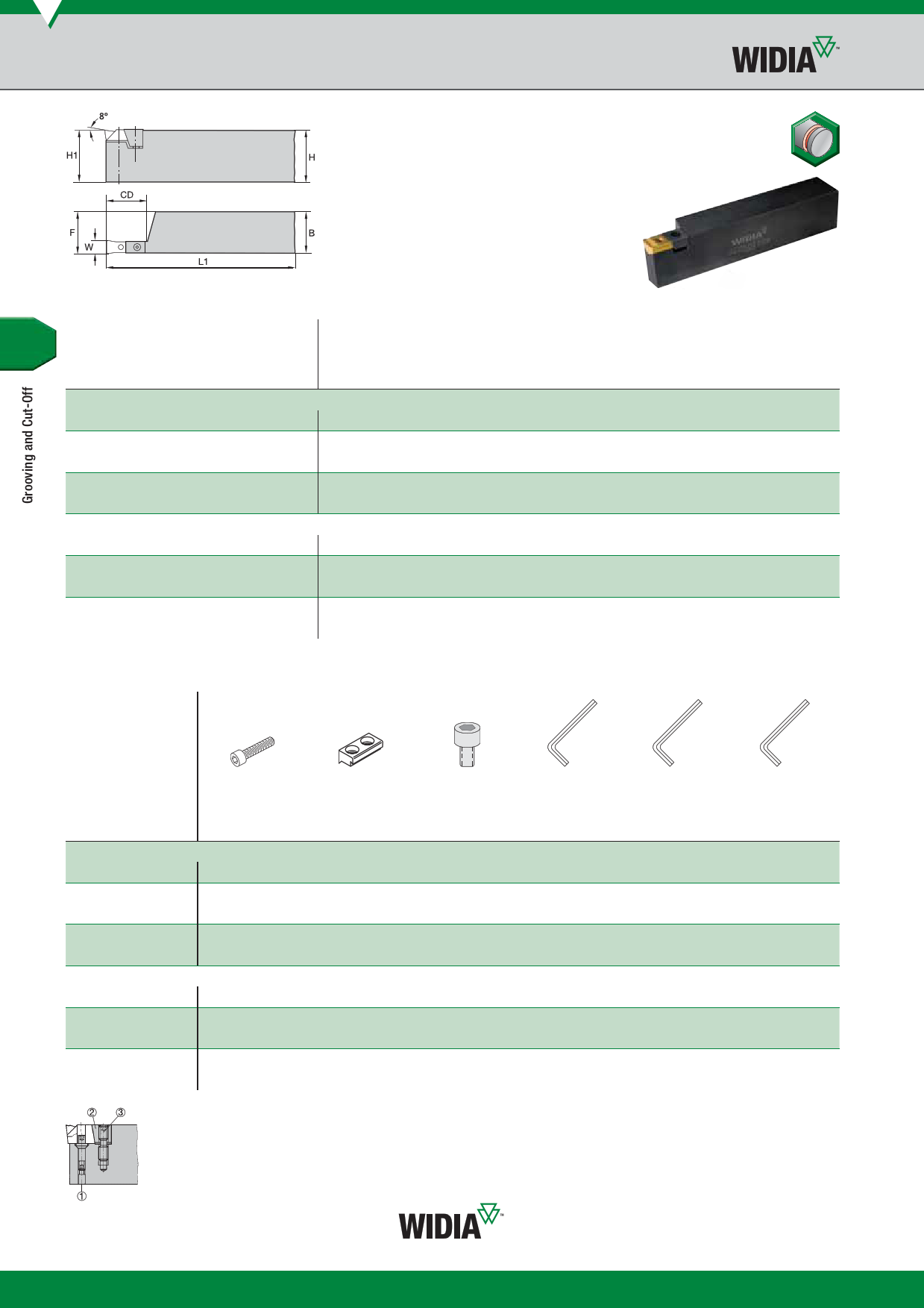

WIDIA - Полный каталог инструмента - 2017
LG
Integral Toolholders
для размещения заказа - zakaz@widiahanita.ru
Right Hand Tool
Grooving
order number
catalogue number
seat
size
W
CD H
B
F L1 H1
right hand
2022446
12250110100
1 8,00 20,0 32 25,0 25,5 170 32
2008147
12250110300
1 10,00 20,0 32 25,0 25,5 170 32
2021719
12250110500
1 12,00 25,0 40 32,0 33,0 200 40
2021721
12250110700
1 14,00 28,0 40 32,0 33,0 200 40
2008521
12250110900
1 16,00 32,0 40 32,0 33,0 200 40
left hand
2022447
12250110200
1 8,00 20,0 32 25,0 25,5 170 32
2008144
12250110400
1 10,00 20,0 32 25,0 25,5 170 32
2021718
12250110600
1 12,00 25,0 40 32,0 33,0 200 40
2021720
12250110800
— 14,00 28,0 40 32,0 33,0 200 40
2021722
12250111000
1 16,00 32,0 40 32,0 33,0 200 40
Spare Parts
catalogue number
right hand
12250110100
12250110300
12250110500
12250110700
12250110900
left hand
12250110200
12250110400
12250110600
12250110800
12250111000
clamping
bolt
12148060600
12148060600
12148060700
12148060700
12148060800
12148060600
12148060600
12148060700
12148060700
12148060800
1. Clamping bolt
2. Wedge clamp
3. Clamping screw
wedge
clamp
12148094300
12148094400
12148094500
12148094600
12148094700
12148094300
12148094400
12148094500
12148094600
12148094700
clamping
screw
12148574100
12148574900
12148574900
12148574000
12148574000
12148574100
12148574900
12148574900
12148574000
12148574000
wrench for
clamp screw
12148041000
—
—
—
12148041000
12148041000
—
—
—
12148041000
wrench for
clamp screw
—
12148041100
12148041100
12148041200
12148041200
—
12148041100
12148041100
12148041200
12148041200
wrench for
clamping bolt
12148046000
12148046000
12148040900
12148040900
—
12148046000
12148046000
12148040900
12148040900
—
E106
