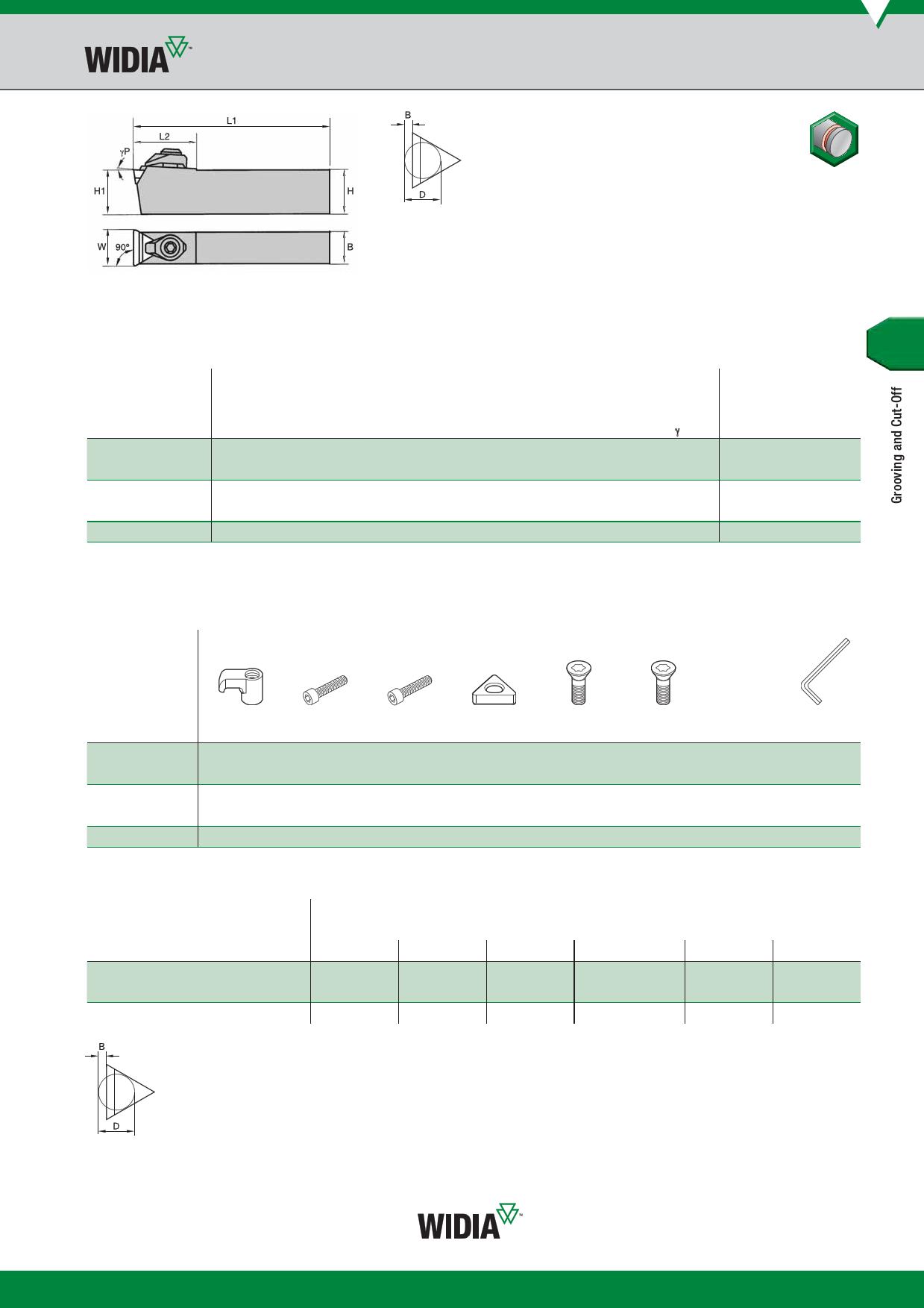

Integral Holders for Grooving with ISO Inserts
Grooving
order number W H1 H B L1 L2 aP°
gage
insert
2022921
10,40
20
20
9,5
125 21
3
TP..1103../TP..22..
2007414
15,30 20 20 13,0 150 27 3 TP..1603../TP..32..
2022922
15,30 25 25 13,0 150 27 3 TP..1603../TP..32..
2058066
20,20 25 25 18,0 150 35 3 TP..2204../TP..43..
2022923
20,20 32 32 18,0 180 35 3 TP..2204../TP..43..
NOTE: Gage inserts listed are ISO-/ANSI-style inserts.
Holders are supplied without chipbreaker. For chipbreaker order numbers, see below.
For Grooving without Chipbreaker
catalogue number
12191061900
12191062086
12191062586
12191062686
12191063286
clamp
12148589200
12148586800
12148586800
12148586900
12148586900
clamp
screw
12148589800
—
—
—
—
clamp
screw
—
12148586000
12148586000
12148021100
12148021100
shim
12148032586
12148031686
12148031686
12148032086
12148032086
shim
screw
—
12148024100
12148024100
12148024500
12148024500
shim
screw
12148021900
—
—
—
—
washer
—
12148024200
12148024200
12148024800
12148024800
wrench
—
—
—
—
—
For Grooving with Chipbreaker (Order Additional Clamp and Chipbreaker)
inserts
TP...1103...
TP...1603...
TP...2204...
clamp with
chipbreaker
12148589200
12148589300
12148586900
D
6,35
9,52
12,70
0,4mm
12148591011
12148591111
–
1,2mm
12148588211
12148586611
–
chipbreakers
B — edge width
1,8mm
2,5mm
12148588311
12148588411
12148587011
12148587111
12148580411 12148580511PKG
3,2mm
–
12148580011
12148580611
4,0mm
–
435101
12148582511
