Separator™

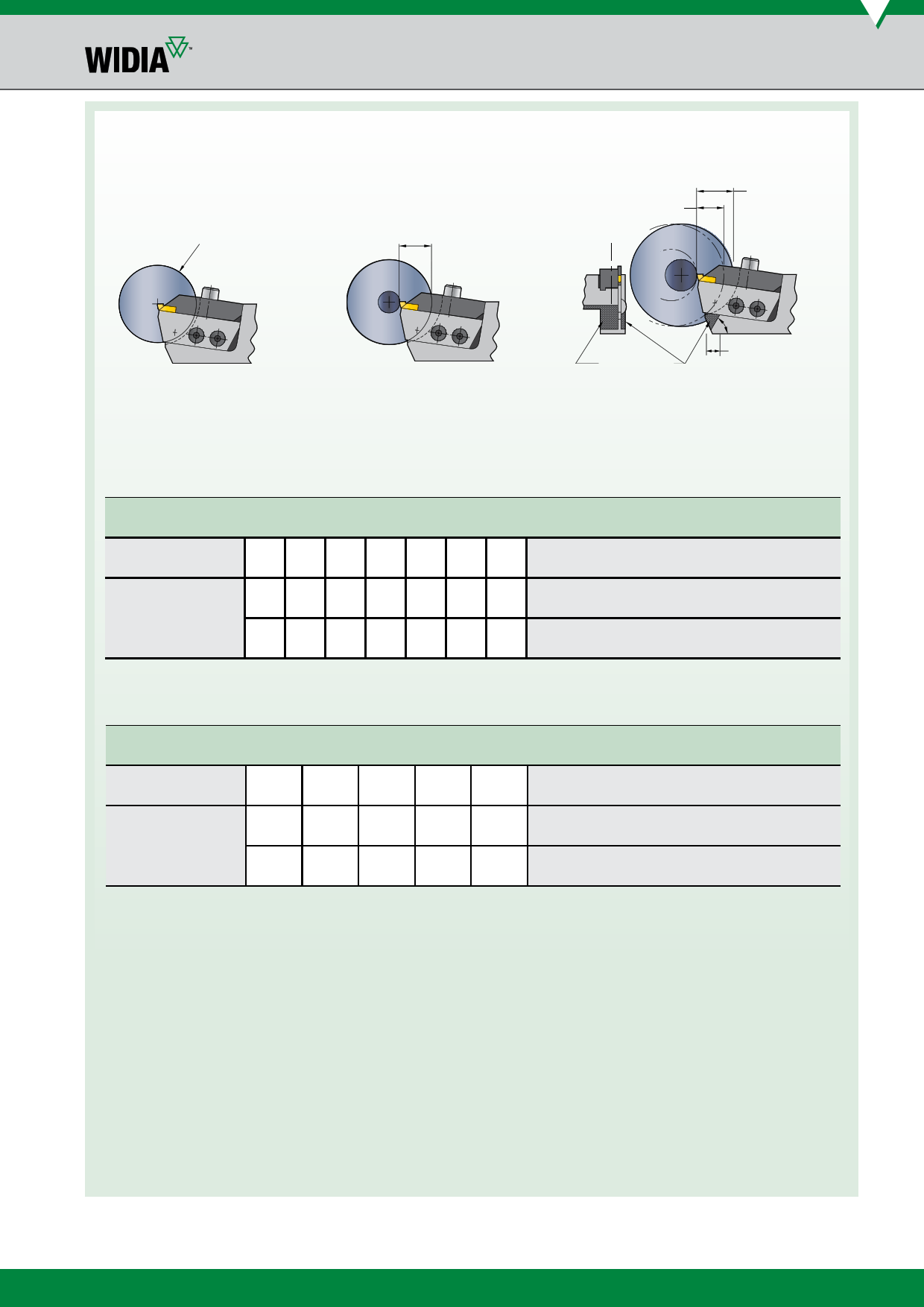

Technical Information
Modifications for Increased Depth of Cut
max diameter
solid bar
max DOC
normal max DOC
extended max DOC
Figure 1
Standard bar capacity shown
Figure 2
Larger bar diameter shown
additional
clearance cut
A
X
Figure 3
Modified toolholder with larger bar diameter shown
bar diameter
max DOC
Capacity Chart for 57,15mm Diameter Bar Capacity Tooling
63,50 76,20 88,90 101,60 114,30 127,00 152,40
NOTE
23,88 19,05 15,75 14,22 12,70 11,94 11,18
28,45 26,16 24,64 24,64 22,10 21,34 19,81
with no modification on toolholder
with no modification on toolholder
X = 10,16mm A = 1270mm
bar diameter
max DOC
Capacity Chart for 76,2mm Diameter Bar Capacity Tooling
88,90 101,60 114,30 127,00 152,40
NOTE
28,45
25,40
22,35
19,81
17,53
36,58
34,80
33,27
31,75
28,45
with no modification on toolholder
with no modification on toolholder
X = 10,16mm A = 1270mm
