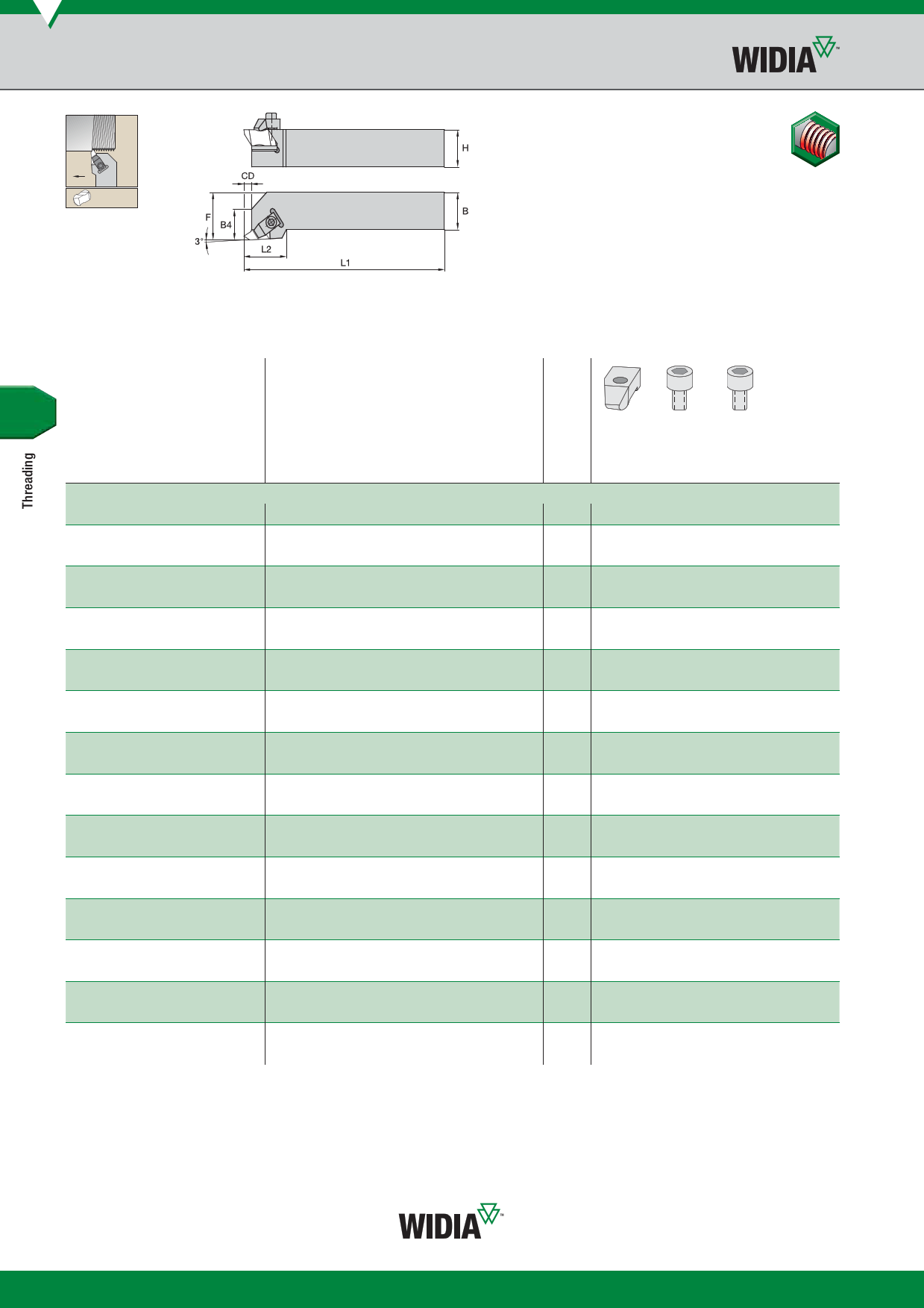

WIDIA - Полный каталог инструмента - 2017
TopThread™
Toolholders
для размещения заказа - zakaz@widiahanita.ru
See page F8
for inserts.
NS
Right Hand Tool
seat gage
order number catalogue number size H B F L1 L2 B4 CD insert clamp
clamp
screw
clamp
screw
hex/
Torx Plus
right hand
3632147
NSR062
2 10 10 14 64 19 9 3,5 N.2R CM74
S310
—
7/64
3641682
NSR1010E2
2 10 10 14 70 19 9 3,5 N.2R CM74 MS1200
—
T10
3641660
NSR1212F2
2 12 12 16 80 19 9 3,5 N.2R CM74 MS1200
—
T10
3639035
NSR082V
2 13 13 19 89 19 9 3,5 N.2R CM74
S310
—
7/64
3639044
NSR102B
2 16 16 22 114 19 9 3,5 N.2R CM74
S310
—
7/64
3636542
NSR1616H2
2 16 16 20 100 19 9 3,5 N.2R CM74 MS1200
—
T10
3639026
NSR122B
2 19 19 25 114 19 9 3,5 N.2R CM74
S310
—
7/64
3638589
NSR2020K2
2 20 20 25 125 19 9 3,5 N.2R CM74 MS1200
—
T10
3638590
NSR2525M2
2 25 25 32 150 19 9 3,5 N.2R CM74 MS1200
—
T10
3639025
NSR162C
2 25 25 32 127 19 9 3,5 N.2R CM74
S310
—
7/64
3639027
NSR123A
3 19 19 25 102 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3639023
NSR123B
3 19 19 25 114 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3638588
NSR2020K3
3 20 20 25 125 32 13 5,3 N.3R CM72LP
—
MS2111
25 IP
3636536
NSR2525M3
3 25 25 32 150 32 13 5,3 N.3R CM72LP
—
MS2111
25 IP
3638592
NSR163C
3 25 25 32 127 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3638591
NSR163D
3 25 25 32 152 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3637496
NSR853D
3 32 25 32 152 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3639028
NSR203D
3 32 32 38 152 32 13 5,3 N.3R CM72LP
—
S2112
25 IP
3641664
NSR3225P3
3 32 25 32 170 32 13 5,3 N.3R CM72LP
—
MS2111
25 IP
3641666
NSR3232P3
3 32 32 40 170 32 13 5,3 N.3R CM72LP
—
MS2111
25 IP
3637506
NSR243D
3 38 38 51 152 35 13 5,3 N.3R CM72LP
—
S2112
25 IP
3637535
NSR243E
3 38 38 51 178 35 13 5,3 N.3R CM72LP
—
S2112
25 IP
3636540
NSR2525M4
4 25 25 32 150 35 14 7,5 N.4R CM72LP
—
MS2111
25 IP
3641675
NSR3225P4
4 32 25 32 170 35 14 7,5 N.4R CM72LP
—
MS2111
25 IP
3641669
NSR3232P4
4 32 32 40 170 35 14 7,5 N.4R CM72LP
—
MS2111
25 IP
3637509
NSR205D
5 32 32 38 152 51 15 10,5 N.5R CM80
S352
—
1/4
3637540
NSR245D
5 38 38 51 152 51 16 10,5 N.5R CM80
S352
—
1/4
NOTE: F dimension measured over sharp point of insert.
