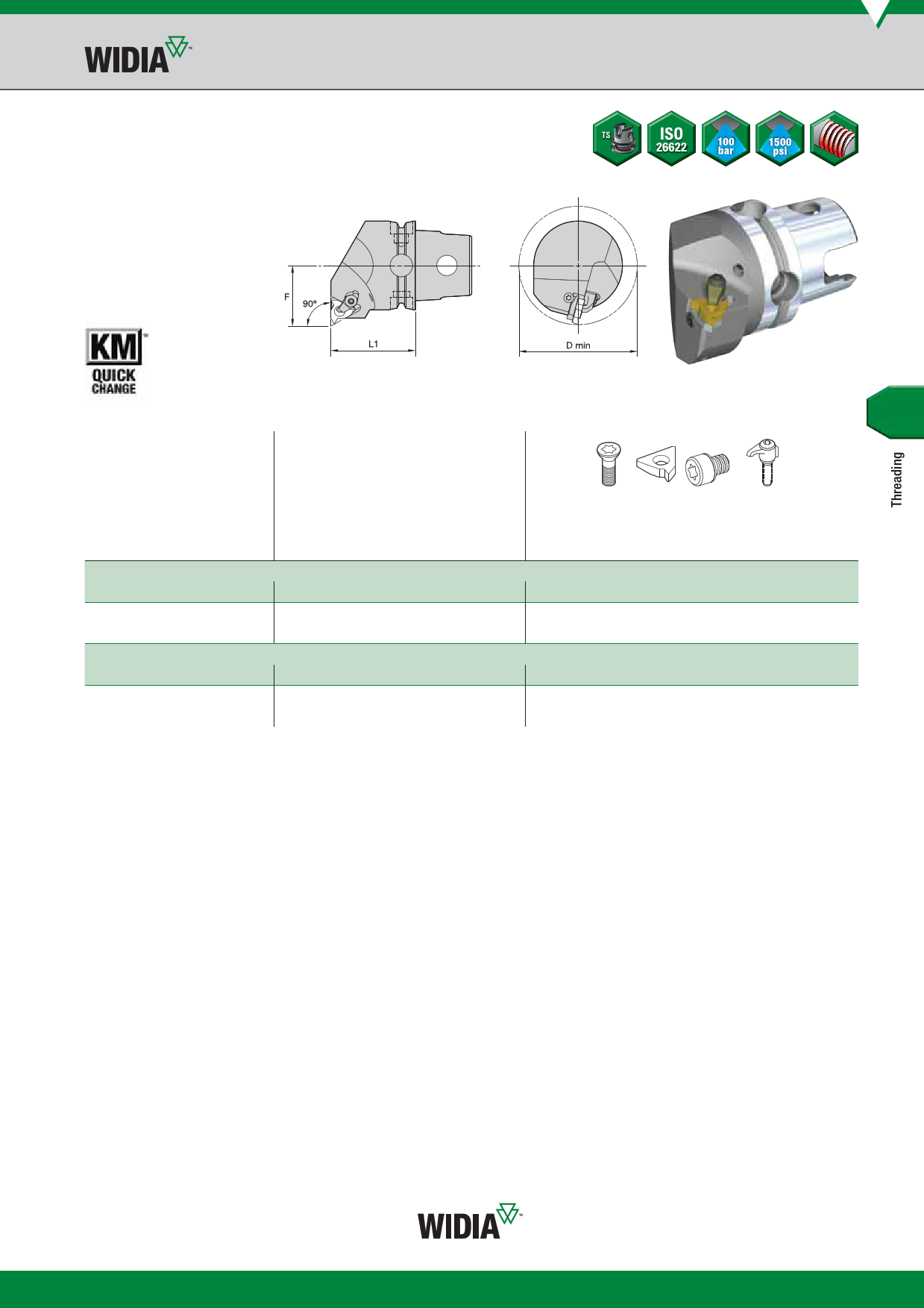

Laydown Threading
KM™ Units
LSE-N 90° • Internal Only
L1 F
D min
order number
right hand
3950832
3950854
3959399
catalogue number
KM40TSLSER16N
KM40TSLSER22N
KM40TSLSER27N
L1
mm in
F
mm in
40 1.575 27 1.063
40 1.575 27 1.063
45 1.772 27 1.063
D min
mm in
54 2.126
54 2.126
54 2.126
gage insert
shim clamp
insert screw shim screw assembly kg lbs
LT16NR
LT22NR
LT27NR
SSA3T
SSA4T
SSA5T
SMYI3
SMYI4
SMYI5
SS3T
SSY4T
SSY5T
CKC3
CKC4
CKC5
0,35 .77
0,35 .77
0,39 .86
left hand
3950831
3950853
3959398
KM40TSLSEL16N
KM40TSLSEL22N
KM40TSLSEL27N
40 1.575 27 1.063
40 1.575 27 1.063
45 1.772 27 1.063
54
54
54
2.126
2.126
2.126
LT16NL
LT22NL
LT27NL
SSA3T
SSA4T
SSA5T
SMYE3
SMYE4
SMYE5
SSY3T
SSY4T
SSY5T
CKC3
CKC4
CKC5
0,35 .77
0,35 .77
0,39 .86
NOTE: Cutting units are supplied with insert screw and clamp assembly. However, tools are designed to use either the insert screw or the clamp assembly, not both.
