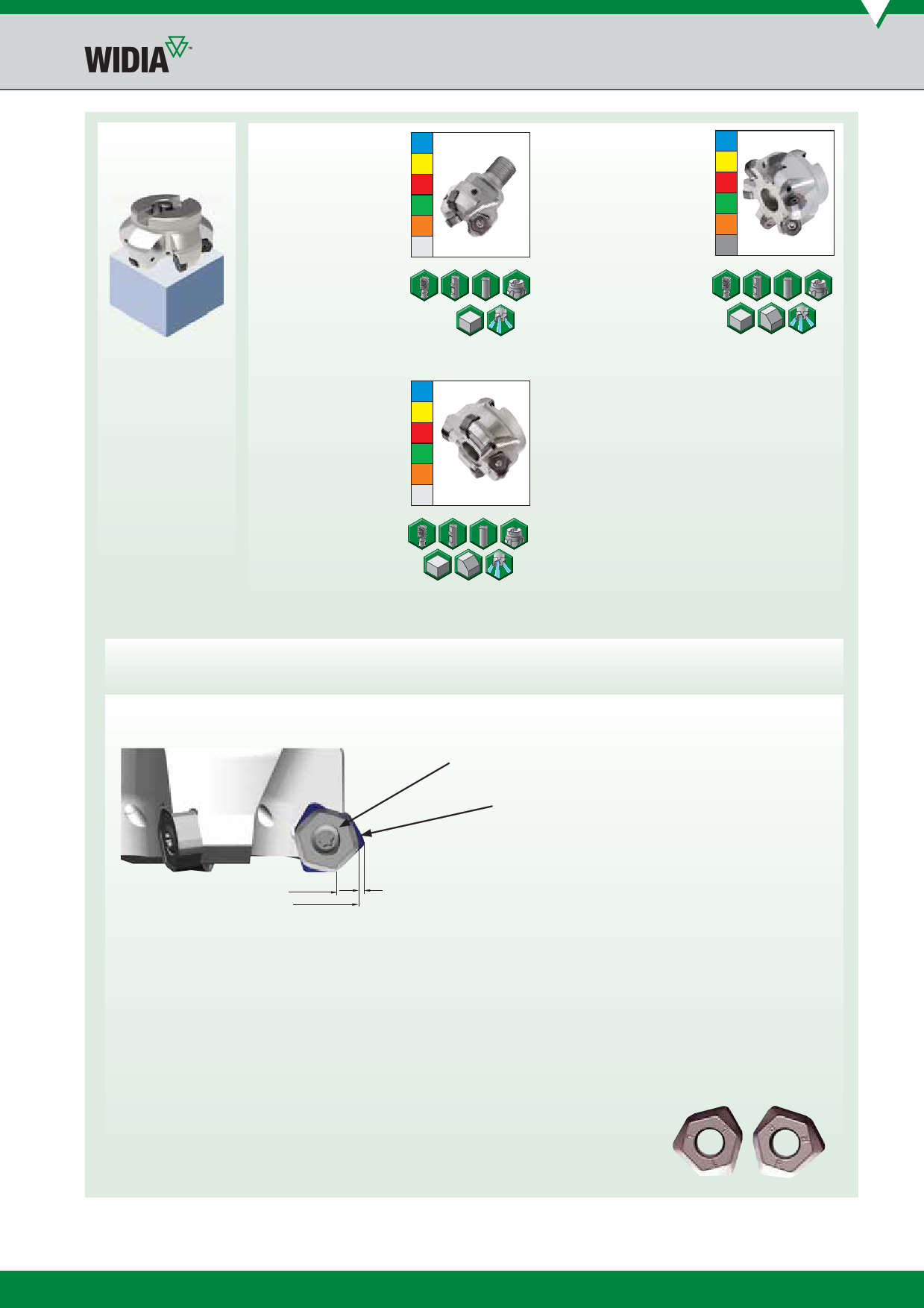

Face Mills
Victory™ M1200 Mini HF 15°
Max depth of cut: 1,7mm
Lead angle: 15°
Indexes per insert: 12
Diameter: 25–80mm
Pages: H5–H11
P
M
K
N
S
Victory™ M1200 Mini HD 59°
Max depth of cut: 4,7mm
Lead angle: 59°
Indexes per insert: 12
Diameter: 40–125mm
Pages: H20–H23
P
M
K
N
S
Victory™ M1200 Mini 45°
Max depth of cut: 3,5mm
Lead angle: 45°
Indexes per insert: 12
Diameter: 25–120mm
Pages: H12–H19
P
M
K
N
S
H
Easy-to-use wiper insert setup to achieve excellent surface oor nish
Wiper insert overlapping vs.
regular insert
Regular Insert HNGJ07
Wiper Insert XNGJ07
[D1]
[D1 max]
D1 max wiper = D1 max + 2,44mm
1,22mm
• Wiper inserts only applied with 45° lead angle
cutter bodies.
• Easy to use. Regular and wiper inserts are loaded
into xed pockets. No adjustment required.
• Please have D1 max wiper in mind in case of limited
working area.
• Use wiper inserts only in combination with
periphery ground regular inserts HNGJ07.
• Up to cutting diameter D1=100mm load one
wiper insert.
• For cutting diameter D1=125mm and above
load two wiper inserts.
• Each wiper insert XNGJ07 can be applied with three
right hand R and three left hand L cutting edges.
