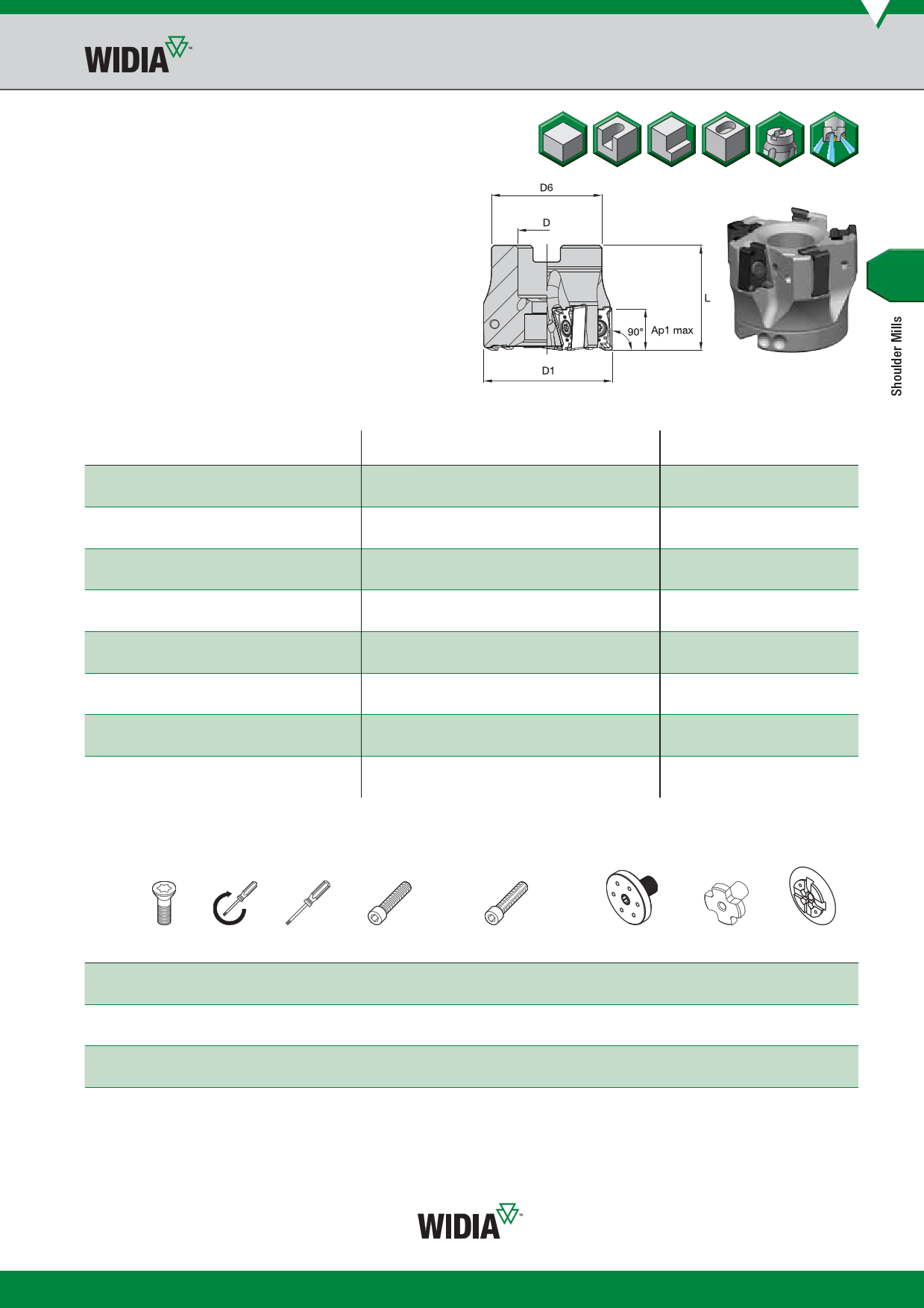

Victory™ Shoulder Mills • VSM490™-15 Series
Shell Mills
• Superior wall and surface finish capabilities.
• “Stepless” solution. True 90° to run precise
applications in multiple axial passes.
• Strong concept to run up to 15mm (.590") depth of cut.
• Effective internal coolant feature, reaching the cutting
edge precisely.
Shell Mills
order number
catalogue number
D1 D D6 L Ap1 max Z kg max RPM
5710289
VSM490D040Z04S16XN15 40 16 37 40
15,0
4 0,20
18800
5710520
VSM490D040Z05S16XN15 40 16 37 40
15,0
5 0,19
18800
5873221
VSM490D050Z04S22XN15 50 22 42 40
15,0
4 0,28
16300
5710521
VSM490D050Z05S22XN15 50 22 42 40
15,0
5 0,28
16300
5710522
VSM490D050Z06S22XN15 50 22 42 40
15,0
6 0,28
16300
5873222
VSM490D063Z05S22XN15 63 22 50 40
15,0
5 0,50
14200
5710523
VSM490D063Z06S22XN15 63 22 50 40
15,0
6 0,49
14200
5710524
VSM490D063Z07S22XN15 63 22 50 40
15,0
7 0,48
14200
5873223
VSM490D080Z05S27XN15 80 27 60 50
15,0
5 1,03
12300
5710525
VSM490D080Z07S27XN15 80 27 60 50
15,0
7 1,03
12300
5873224
VSM490D080Z09S27XN15 80 27 60 50
15,0
9 1,04
12300
5710526
VSM490D100Z08S32XN15 100 32 80 50
15,0
8 1,61
10900
5873225
VSM490D100Z11S32XN15 100 32 80 50
15,0
11 1,64
10900
5873226
VSM490D125Z09S40XN15 125 40 90 63
15,0
9 2,96
9600
5873227 VSM490D125Z12S40XN15 125 40 90 63 15,0 12 3,11 9600
5873228 VSM490D160Z12S40XN15 160 40 110 63 15,0 12 4,80 8400
Spare Parts
insert
D1 screw
Torx Plus socket-head socket-head cap screw
coolant lock
Nm
driver
cap screw
with coolant groove
screw assembly
40 MS-2071
3,5
DT15IP
125.825
MS1294CG
—
50 MS-2071
3,5
DT15IP
125.025
MS1234CG
—
63 MS-2071
3,5
DT15IP
125.025
MS1234CG
—
80 MS-2071
3,5
DT15IP
125.230
MS2038CG
—
100 MS-2071
3,5
DT15IP
—
— MS2189C
125 MS-2071
3,5
DT15IP
—
— MS2187C
160 MS-2071
3,5
DT15IP
—
—
—
NOTE: Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately.
coolant
lock screw
—
—
—
—
—
—
420.200
coolant
shower plate
—
—
—
—
—
—
470.233
