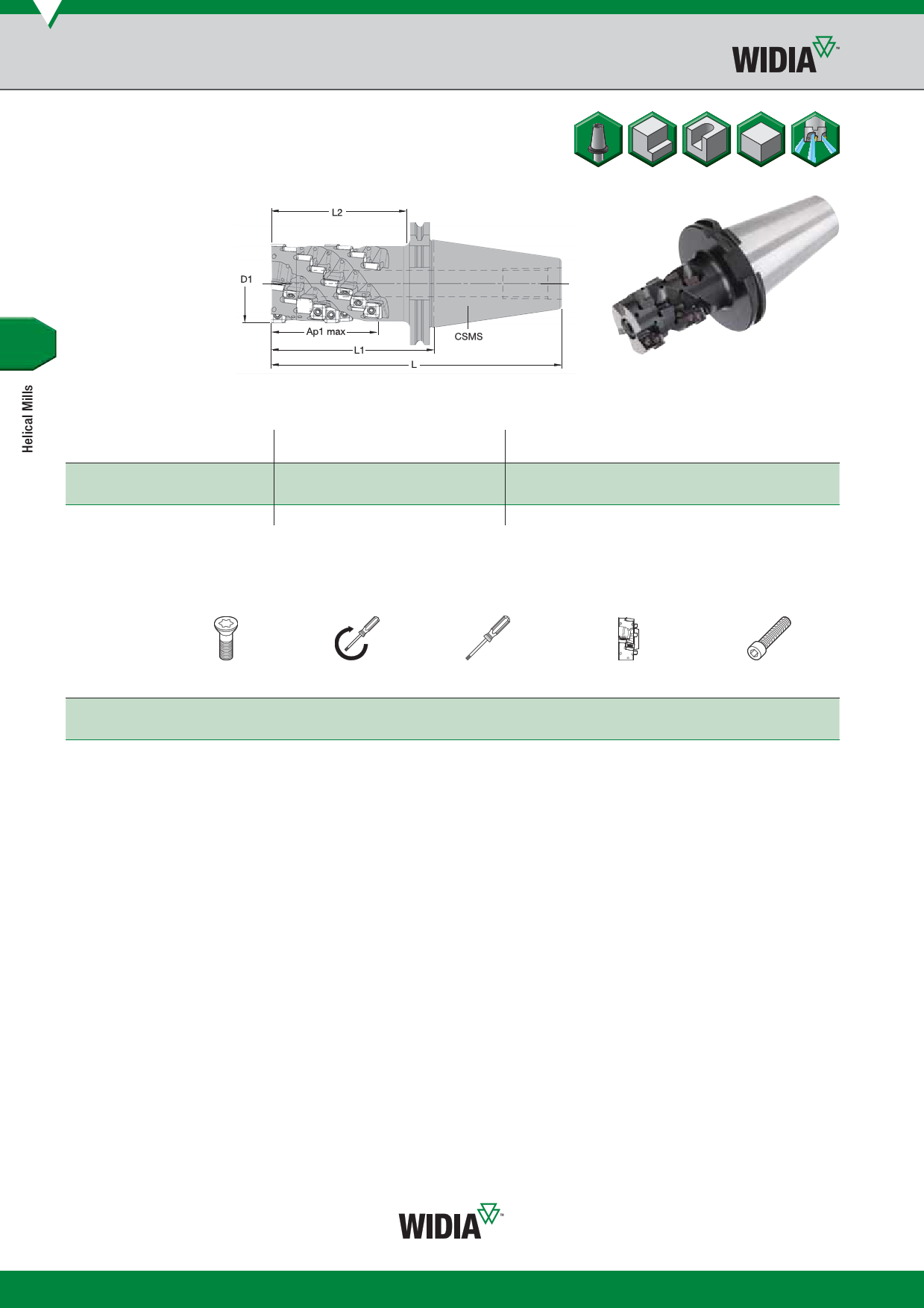

Helical Mills • M390 Series
Integral • SD1204..
• Four cutting edges per insert.
• Replaceable end cap.
• Positive helix for high productivity.
для размещения заказа - zakaz@widiahanita.ru
Integral
order number catalogue number D1 L
CSMS
coolant
L1 L2 Ap1 max Z Z U system size max RPM supply kg
2021422
12393041200
50 207 105 82
64,0 18 3
DV50
14000
Yes 3,4
2021423
12393041400
63 232 130 107 85,0 32 4
DV50
12000
Yes 4,3
2021424
12393041800
NOTE: Z = number of pocket seats.
ZU = number of effective teeth.
80 262 160 137
117,0
55 5
DV50
10500
Yes 6,3
Spare Parts
insert
D1 screw
Torx
Nm wrench
end socket-head
cap cap screw
50 12148037700
4,0
12148000600
12393051200
12147625400
63 12148037700
4,0
12148000600
12393051400
12148783700
80 12148037700
4,0
12148000600
12393051800
12148783700
K4
