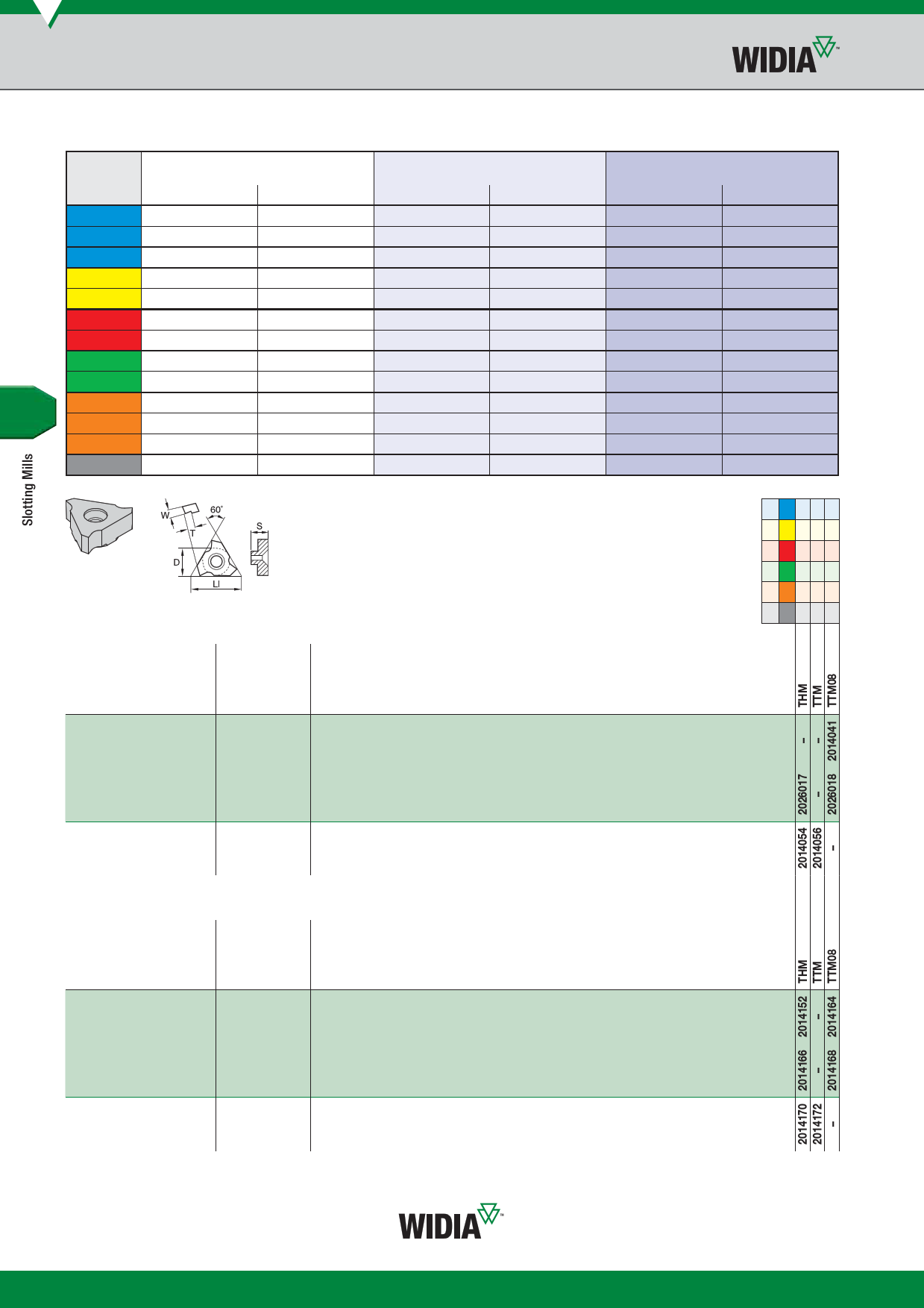

Slotting Mills • M94 Series
Inserts
для размещения заказа - zakaz@widiahanita.ru
Insert Selection Guide
Material
Group
P1–P2
P3–P4
P5–P6
M1–M2
M3
K1–K2
K3
N1–N2
N3
S1–S2
S3
S4
H1
Light
Machining
Geometry
Grade
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
––
TCAX
TNAX
TCAX • 1103..
General
Purpose
Geometry
Grade
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
––
Heavy
Machining
Geometry
Grade
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
TTM/TTM08
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
TCAX/TNAX
THM
––
first choice
alternate choice
P
M
K
N
S
H
cutting
catalogue number
edges
D
LI
WT
S hm
TCAX1103ZZ18
3 6,35 11,00 1,93 2,10 3,20 0,07
TCAX1103ZZ21
3 6,35 11,00 2,23 2,25 3,20 0,07
TCAX1103ZZ26
3 6,35 11,00 2,73 2,35 3,20 0,07
TNAX • 1604..
cutting
catalogue number
edges
D
LI
WT
S hm
TNAX1604ZZ26
3 9,52 16,49 2,73 3,08 4,76 0,07
TNAX1604ZZ31
3 9,52 16,49 3,26 3,04 4,76 0,07
TNAX1604ZZ41
3 9,52 16,49 4,26 3,32 4,76 0,07
