• Double-sided, 12 cutting edges.
• Anti-rotation feature for better stability
and higher feed rates.
• Pocketing and profiling capabilities.

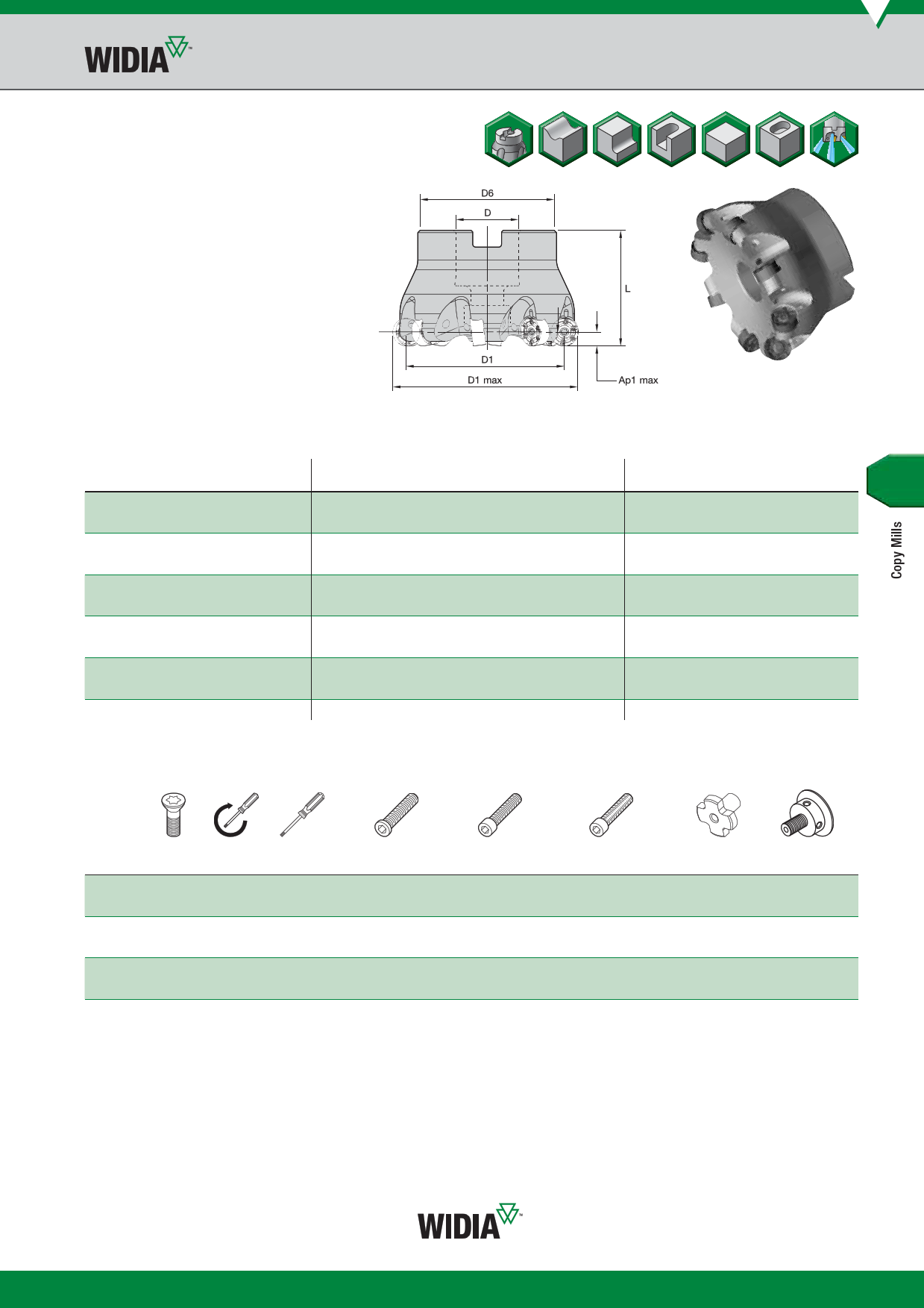

Copy Mills • M200™ Series
iC12 • Shell Mills
Shell Mills
coolant
order number
catalogue number
D1 max
D1
D
D6
L
Ap1 max Z max RPM
supply
kg
4147568 M200D40Z04RN12 40 28 16 38 40 3,0 4 35020
Yes 0,22
4147569 M200D50Z04RN12 50 38 22 42 40 3,0 4 31330
Yes 0,30
4147570 M200D50Z05RN12 50 38 22 42 40 3,0 5 31330
Yes 0,29
4147571
M200D52Z05RN12
52 40 22 49 50 3,0
5 30720
Yes 0,49
4147572
M200D63Z05RN12
63 51 22 49 50 3,0
5 27910
Yes 0,63
4147573
M200D63Z07RN12
63 51 22 49 50 3,0
7 27910
Yes 0,63
4147574
M200D66Z07RN12
66 54 27 60 50 3,0
7 27260
Yes 0,82
4147575
M200D80Z06RN12
80 68 27 60 50 3,0
6 24760
Yes 1,02
4147576
M200D80Z08RN12
80 68 27 60 50 3,0
8 24760
Yes 1,02
4147577 M200D100Z07RN12 100 88 32 78 50 3,0 7 22150
Yes 1,45
4147578 M200D100Z09RN12 100 88 32 78 50 3,0 9 22150
Yes 1,41
Spare Parts
D1 max
40
insert
screw
193.492
Nm
4,0
wrench
170.025
low-head
cap screw
—
socket-head
cap screw
MS1294
socket-head cap screw
with coolant groove
MS1294CG
50 193.492
4,0
170.025
MS1336
—
MS2072CG
52 193.492
4,0
170.025
—
MS1242
MS1242CG
63 193.492 4,0
170.025
—
MS1242
MS1242CG
66 193.492 4,0
170.025
—
MS2038
MS2038CG
80 193.492 4,0
170.025
—
MS2038
MS2038CG
100 193.492
4,0
170.025
—
—
—
NOTE: Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately.
coolant
lock screw
—
—
—
—
—
—
KLS32M
coolant lock
screw assembly
—
—
—
—
—
—
MS2195C
