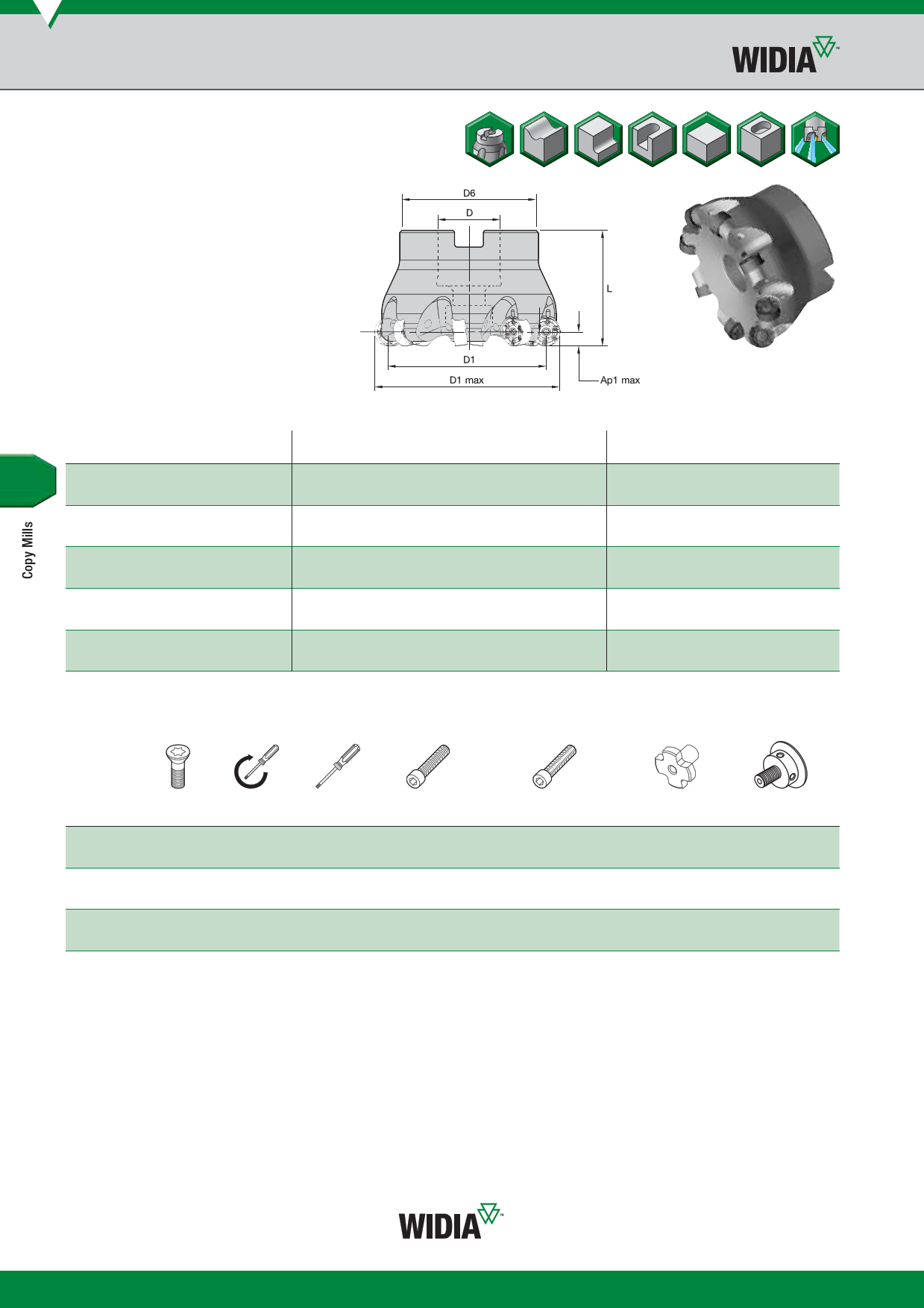

Copy Mills • M200™ Series
iC16 • Shell Mills
для размещения заказа - zakaz@widiahanita.ru
• Double-sided, 12 cutting edges.
• Anti-rotation feature for better stability
and higher feed rates.
• Pocketing and profiling capabilities.
Shell Mills
coolant
order number
catalogue number
D1 max
D1
D
D6
L
Ap1 max Z max RPM
supply
kg
5209989
M200D50Z04RN16
50
34 22 42 50
4,0
4 26700
Yes 0,36
5210210 M200D52Z04RN16 52 36 22 42 50 4,0 4 26000
Yes 0,39
5210212 M200D63Z06RN16 63 47 22 49 50 4,0 6 22700
Yes 0,56
5210211 M200D63Z04RN16 63 47 22 49 50 4,0 4 22700
Yes 0,58
5210213 M200D66Z05RN16 66 50 27 60 50 4,0 5 22000
Yes 0,69
5210214 M200D80Z05RN16 80 64 27 60 50 4,0 5 19500
Yes 0,88
5210215 M200D80Z07RN16 80 64 27 60 50 4,0 7 19500
Yes 0,89
5210216 M200D100Z06RN16 100 84 32 78 50 4,0 6 17000
Yes 1,36
5210217
M200D100Z08RN16
100
84 32 78 50
4,0
8 17000
Yes 1,37
5210218 M200D125Z08RN16 125 109 40 90 63 4,0 8 14900
Yes 2,50
Spare Parts
insert
socket-head
socket-head cap screw
D1 max
screw
Nm
wrench
cap screw
with coolant groove
50 192.932
4,0
170.026
MS1242
MS1242CG
52 MS2260
4,0
170.026
MS1242
MS1242CG
63 MS2260
4,0
170.026
MS1242
MS1242CG
63 193.343
4,0
170.026
MS1242
MS1242CG
66 MS2260
4,0
170.026
MS2038
MS2038CG
80 MS2260
4,0
170.026
MS2038
MS2038CG
100 MS2260
4,0
170.026
—
—
125 MS2260
4,0
170.026
—
—
NOTE: Socket-head cap screw with coolant groove and coolant lock screw assembly must be ordered separately.
coolant
lock screw
—
—
—
—
—
—
KLS32M
KLS40M
coolant lock
screw assembly
—
—
—
—
—
—
MS2195C
MS2187C
M36
