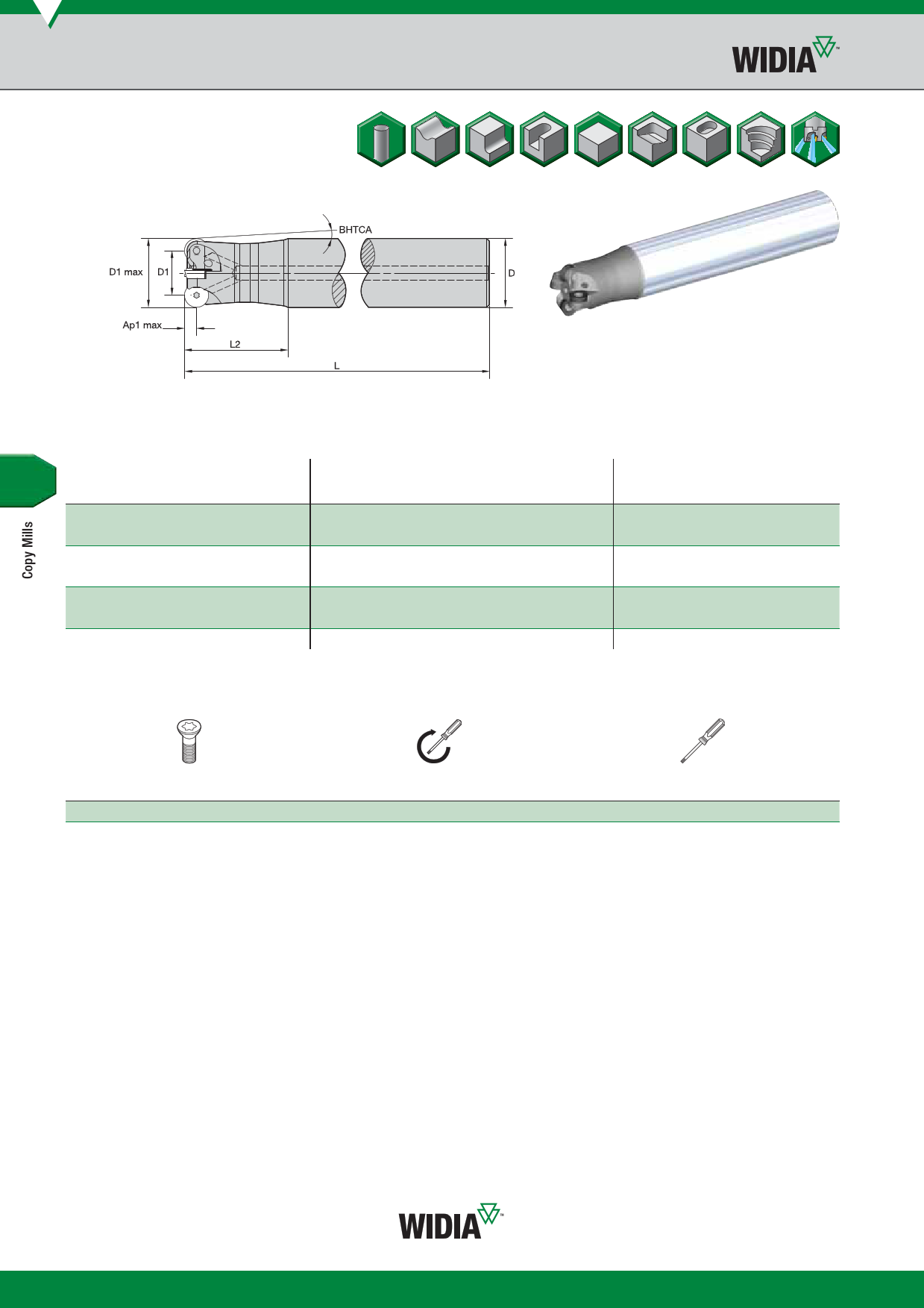

Copy Mills • M170™ Series
Cylindrical Shanks • RD1003..
для размещения заказа - zakaz@widiahanita.ru
• Premium nickel-coated bodies.
• Designed for maximum performance.
• Ideally suited for die and mould manufacturing.
Cylindrical Shanks
order number
catalogue number
max
ramp
coolant
D1 max D1 D L L2 BHTCA Ap1 max Z angle max RPM supply kg
3940704
M170D020Z02A20RD10L140
20
10 20 140 60
—
5,0 2 20.0° 15900
Yes 0,30
3940705 M170D020Z02A25RD10L160 20 10 25 160 80 2.0°
5,0 2 20.0° 15900
Yes 0,48
3940706 M170D020Z02A25RD10L180 20 10 25 180 100 1.5°
5,0 2 20.0° 15900
Yes 0,53
3940707 M170D022Z02A20RD10L160 22 12 20 160 40
—
5,0 2 12.0° 14400
Yes 0,35
3940709 M170D025Z02A25RD10L180 25 15 25 180 70
—
5,0
2 9.0°
12800
Yes 0,61
3940710 M170D025Z02A25RD10L220 25 15 25 220 100 —
5,0
2 9.0°
12800
Yes 0,74
3940711 M170D028Z02A25RD10L200 28 18 25 200 40
—
5,0 2 15.0° 11300
Yes 0,74
Spare Parts
insert
screw
193.342
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
3,5
Torx
driver
12148082400
M54
