• Premium nickel-coated bodies.
• Designed for maximum performance.
• Ideally suited for die and mould manufacturing.

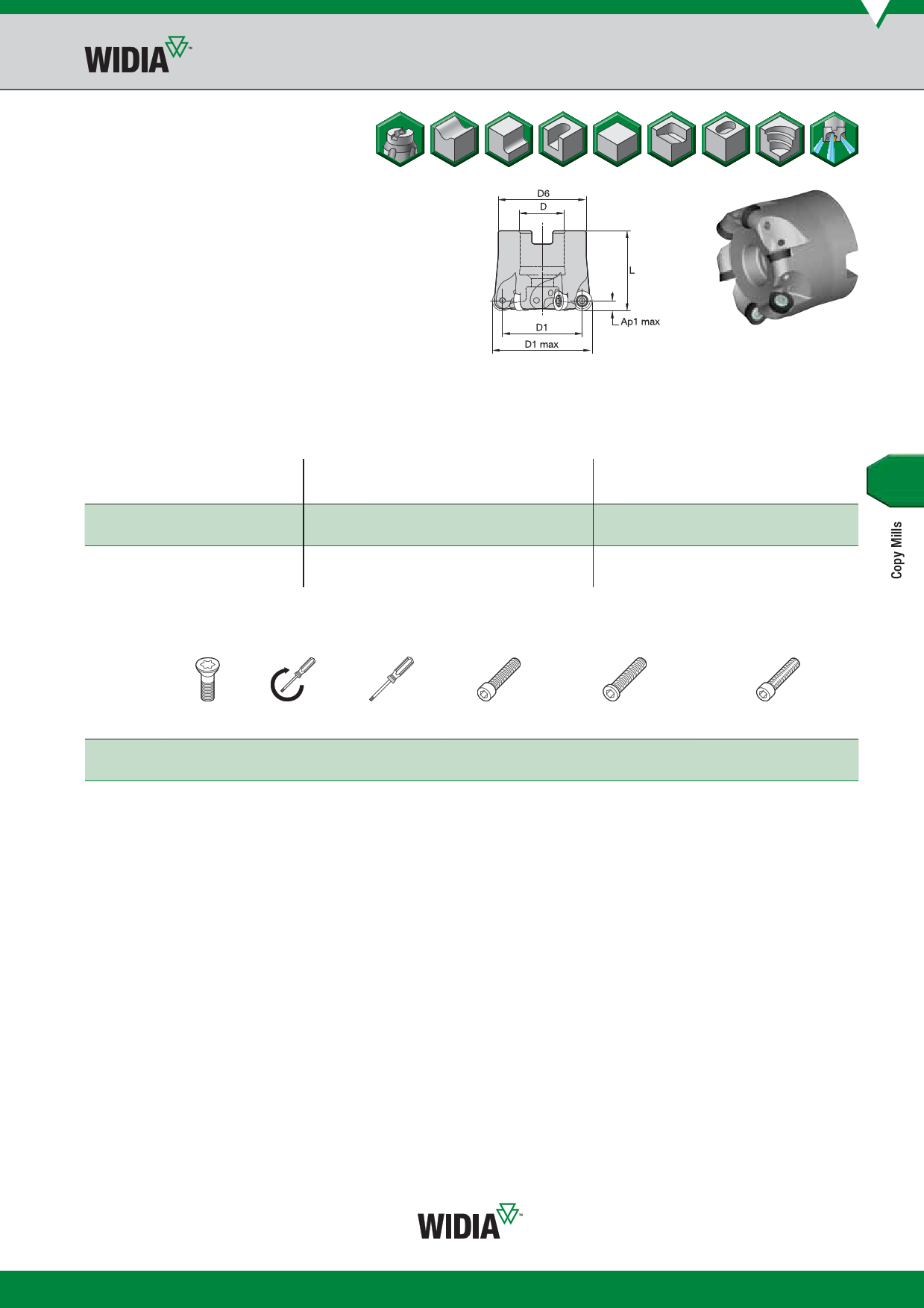

Copy Mills • M170™ Series
Shell Mills • RD1003..
Shell Mills
max
ramp
coolant
order number catalogue number D1 max D1 D D6 L Ap1 max Z angle max RPM supply
kg
3940712
M170D040Z05RD10
40
30 16 37 40
5,0
5 7.2°
9950
Yes 0,28
3940723
M170D042Z05RD10
42
32 16 37 40
5,0
5 5.8°
9500
Yes 0,28
3940724
M170D050Z06RD10
50
40 22 44 40
5,0
6 5.2°
7950
Yes 0,35
3940725
M170D052Z06RD10
52
42 22 44 50
5,0
6 3.0°
7650
Yes 0,51
Spare Parts
D1 max
insert
screw
Nm
Torx
driver
40 193.342 3,5 12148082400
42 193.342 3,5 12148082400
50 193.342 3,5 12148082400
52 193.342 3,5 12148082400
NOTE: All spare parts except the insert screws must be ordered separately.
socket-head
cap screw
MS1294
MS1294
—
—
low-head
cap screw
—
—
129.025
129.025
socket-head cap screw
with coolant groove
MS1294CG
MS1294CG
MS2072CG
MS2072CG
