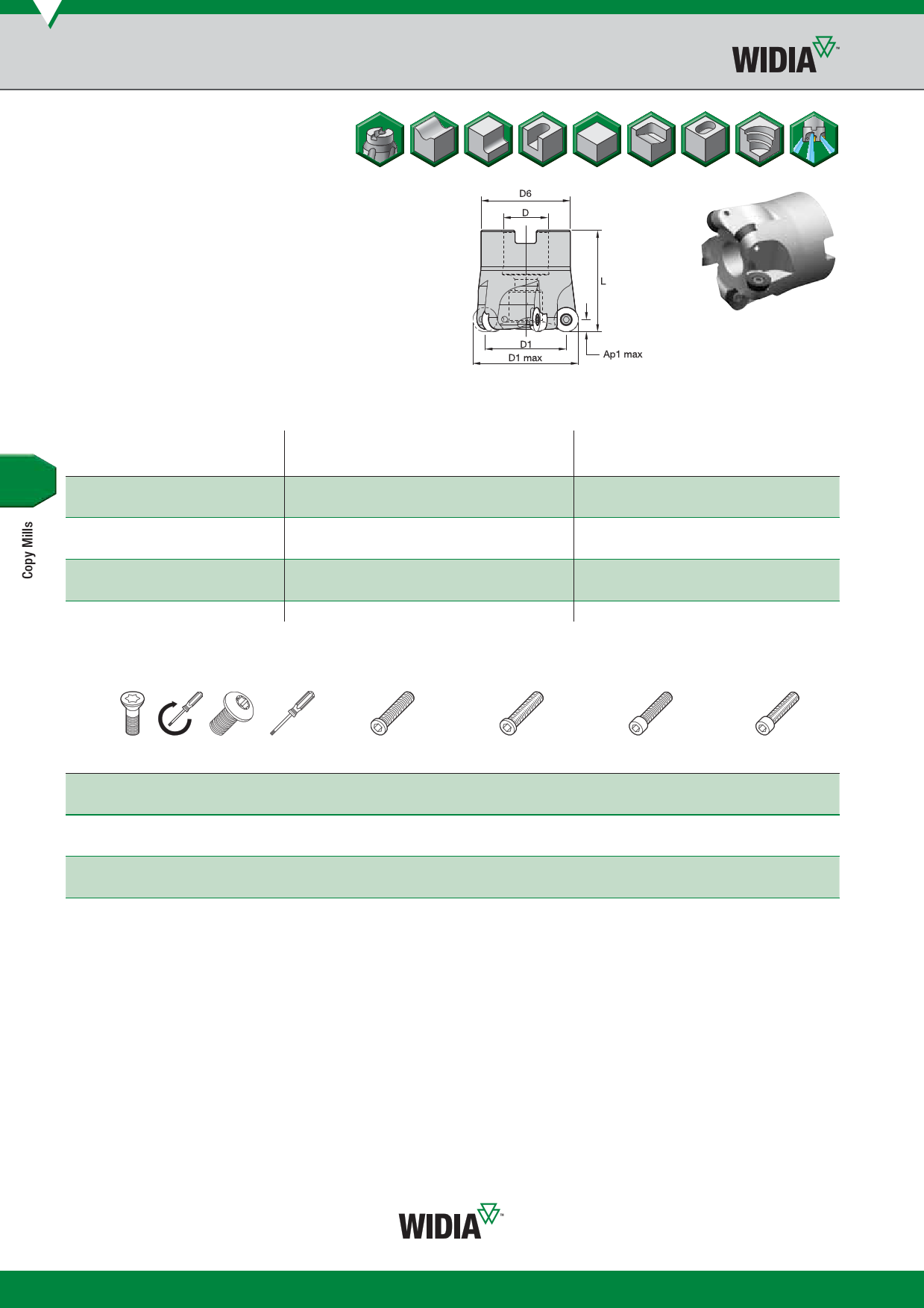

Copy Mills • M170™ Series
Shell Mills • RD12T3..
для размещения заказа - zakaz@widiahanita.ru
• Premium nickel-coated bodies.
• Designed for maximum performance.
• Ideally suited for die and mould manufacturing.
Shell Mills
max
ramp
coolant
order number catalogue number D1 max D1 D D6 L Ap1 max Z angle max RPM supply
kg
3930968 M170D040Z04RD12 40 28 16 37 40 6,0 4 9.3° 7000
Yes 0,22
3930970 M170D050Z05RD12 50 38 22 44 40 6,0 5 6.1° 7950
Yes 0,32
3930972 M170D052Z05RD12 52 40 22 44 50 6,0 5 4.5° 7600
Yes 0,44
3930975 M170D063Z06RD12 63 51 22 44 40 6,0 6 4.5° 6300
Yes 0,45
3930976 M170D066Z06RD12 66 54 27 60 50 6,0 6 4.5° 6030
Yes 0,81
3930979 M170D080Z07RD12 80 68 27 60 50 6,0 7 3.5° 4900
Yes 0,97
3930981 M170D100Z08RD12 100 88 32 80 55 6,0 8 2.2° 3900
Yes 1,95
Spare Parts
insert
D1 max screw
Nm
clamp
screw
Torx
driver
low-head
cap screw
low-head cap screw
with coolant groove
socket-head
cap screw
socket-head cap screw
with coolant groove
40 193.342 3,5 193.338 12148082400
—
—
MS1294
MS1294CG
50 193.342 3,5 193.338 12148082400
129.025
—
— MS2072CG
52 193.342 3,5 193.338 12148082400
129.025
—
— MS2072CG
63 193.342 3,5 193.338 12148082400
129.025
—
— MS2072CG
66 193.342 3,5 193.338 12148082400
—
—
MS2038
MS2038CG
80 193.342 3,5 193.338 12148082400
—
—
MS2038
MS2038CG
100 193.342 3,5 193.338 12148082400
MS1254
MS1254CG
—
—
NOTE: Socket-head cap screw, socket-head cap screw with coolant groove, low-head cap screw with coolant groove, and Torx driver must be ordered separately.
