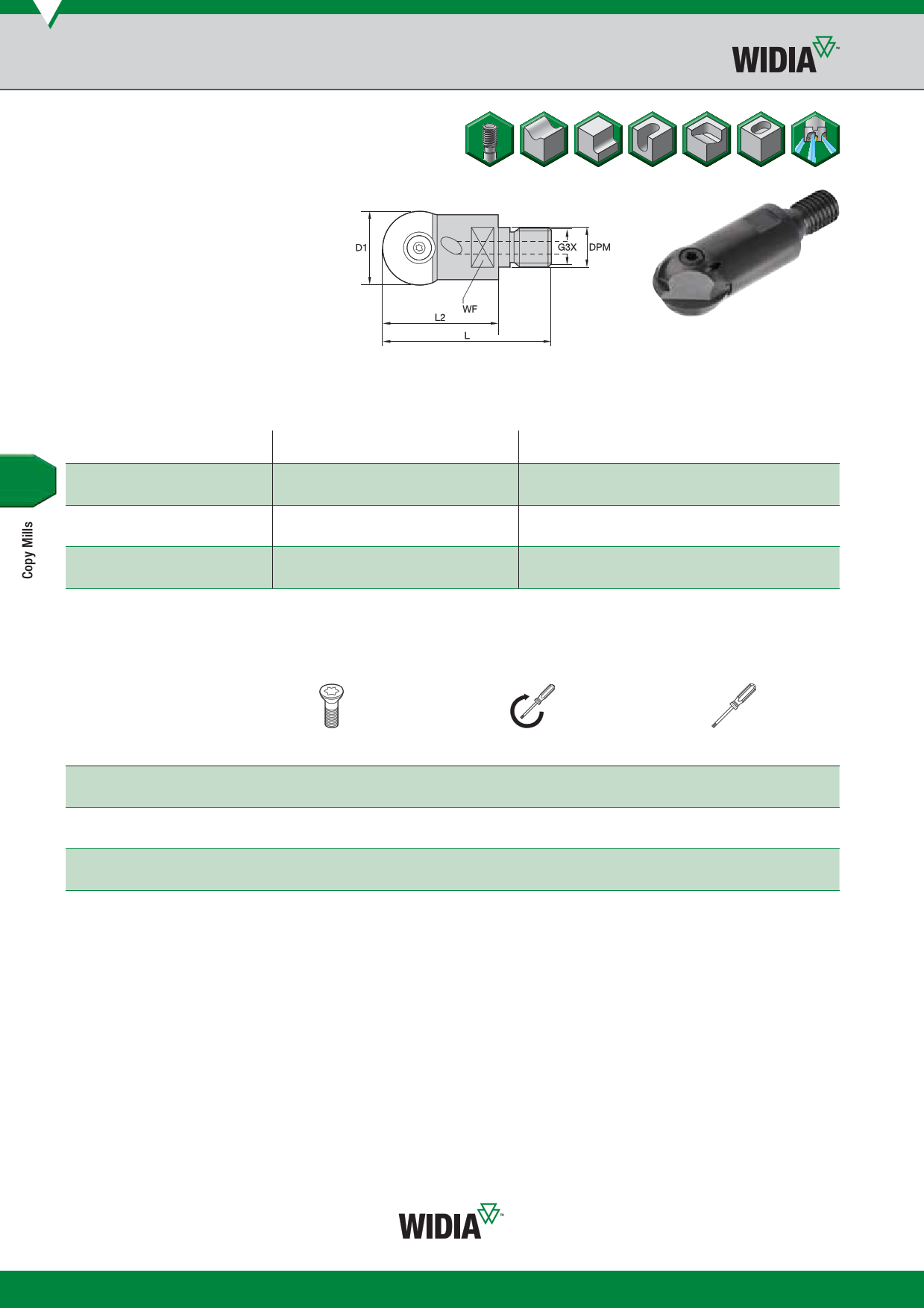

Copy Mills • M270™ Series
Ball Nose Tool Bodies
для размещения заказа - zakaz@widiahanita.ru
• Rough, semi-finishing, and finishing with one system.
• Through tool coolant.
• Secure and rigid insert clamping.
Ball Nose • Screw-On End Mills
order number catalogue number D1 DPM G3X L L2 WF Z Z U
inserts
coolant
max RPM supply
kg
2243624
M270BD010M08 10 8,5 M8 42 25 10,0 1 2 M270B.10
57000
Yes 0,05
2243625
M270BD012M08 12 8,5 M8 42 25 10,0 1 2 M270B.12
55000
Yes 0,05
2243626
M270BD016M08 16 8,5 M8 47 30 10,0 1 2 M270B.16
53000
Yes 0,05
2243627
M270BD020M10 20 10,5 M10 59 40 14,0 1 2 M270B.20
52000
Yes 0,10
2243628
M270BD025M12 25 12,5 M12 72 50 19,0 1 2 M270B.25
50000
Yes 0,10
2243629
M270BD032M16 32 17,0 M16 73 50 22,0 1 2 M270B.32
4000
Yes 0,20
NOTE: ZU = Effective teeth.
Z = number of pocket seats.
Spare Parts
insert
D1 screw
10 12748610500
12 12748610600
16 12748610700
20 12748610800
25 12748610900
32 12748611000
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
2,0
2,0
5,0
5,0
7,0
7,0
Torx
driver
12148788900
12148788900
12148099300
12148099300
12148086800
12146006300
