Copy Mills • M270™ Series

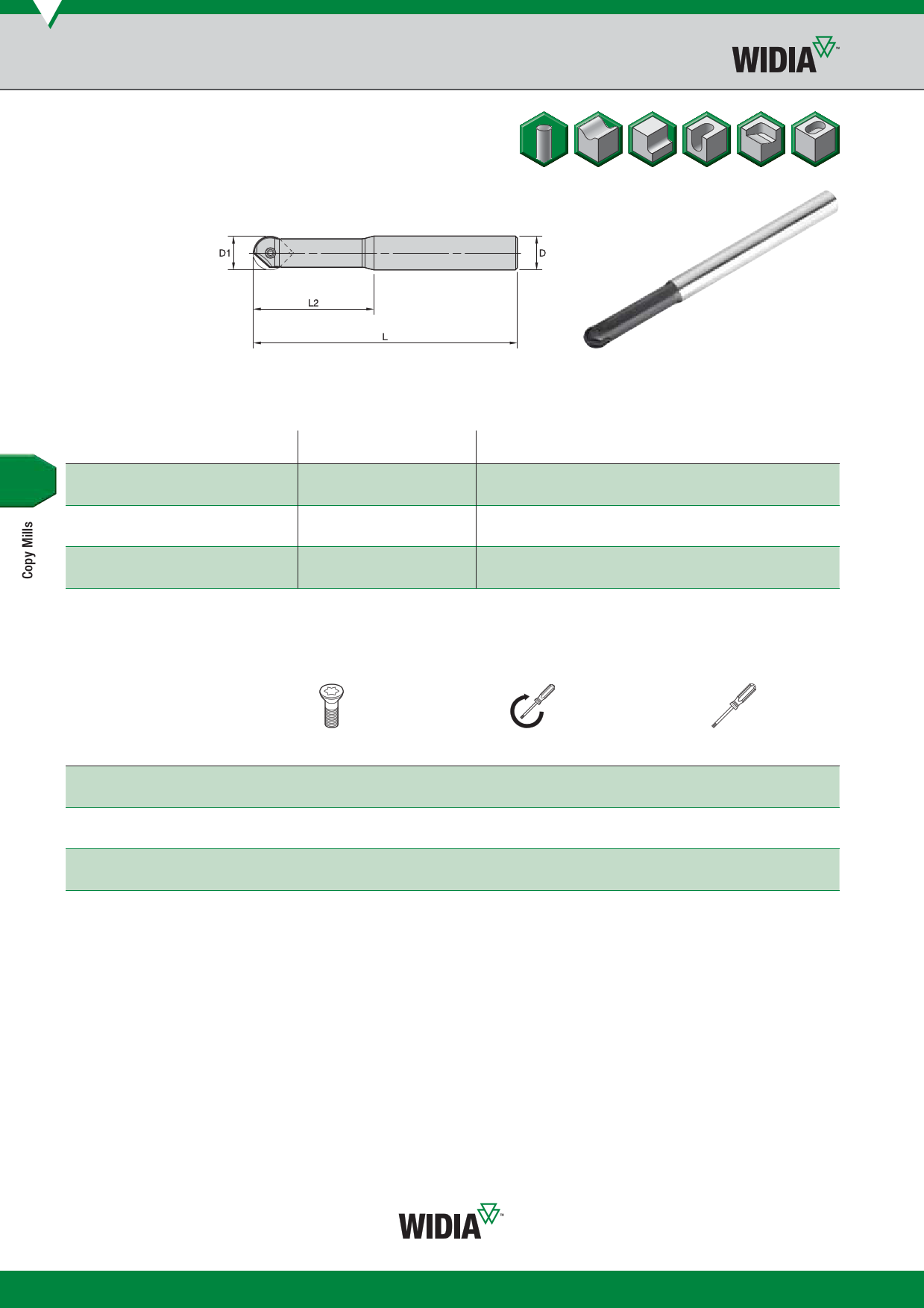

Ball Nose Tool Bodies
для размещения заказа - zakaz@widiahanita.ru
• Rough, semi-finishing, and finishing with one system.
• Secure and rigid insert clamping.
Ball Nose • Cylindrical Shanks
coolant
order number
catalogue number
D1 D
L
L2 Z Z U
inserts
max RPM
supply
kg
2243613
M270BD010A12L140 10 12 140 45 1 2 M270B.10
57000
No 0,10
2243614
M270BD012A12L145 12 12 145 50 1 2 M270B.12
55000
No 0,10
2067470
M270BD016A16L155 16 16 155 57 1 2 M270B.16
53000
No 0,20
2243615
M270BD020A20L170 20 20 170 70 1 2 M270B.20
52000
No 0,40
2243616
M270BD025A25L195 25 25 195 89 1 2 M270B.25
50000
No 0,60
2243617
M270BD032A32L205 32 32 205 95 1 2 M270B.32
46000
No 1,10
NOTE: ZU = Effective teeth.
Z = number of pocket seats.
Spare Parts
insert
D1 screw
10 12748610500
12 12748610600
16 12748610700
20 12748610800
25 12748610900
32 12748611000
NOTE: All spare parts except the insert screws must be ordered separately.
Nm
2,0
2,0
5,0
5,0
7,0
7,0
Torx
driver
12148788900
12148788900
12148099300
12148099300
12148086800
12146006300
M104
