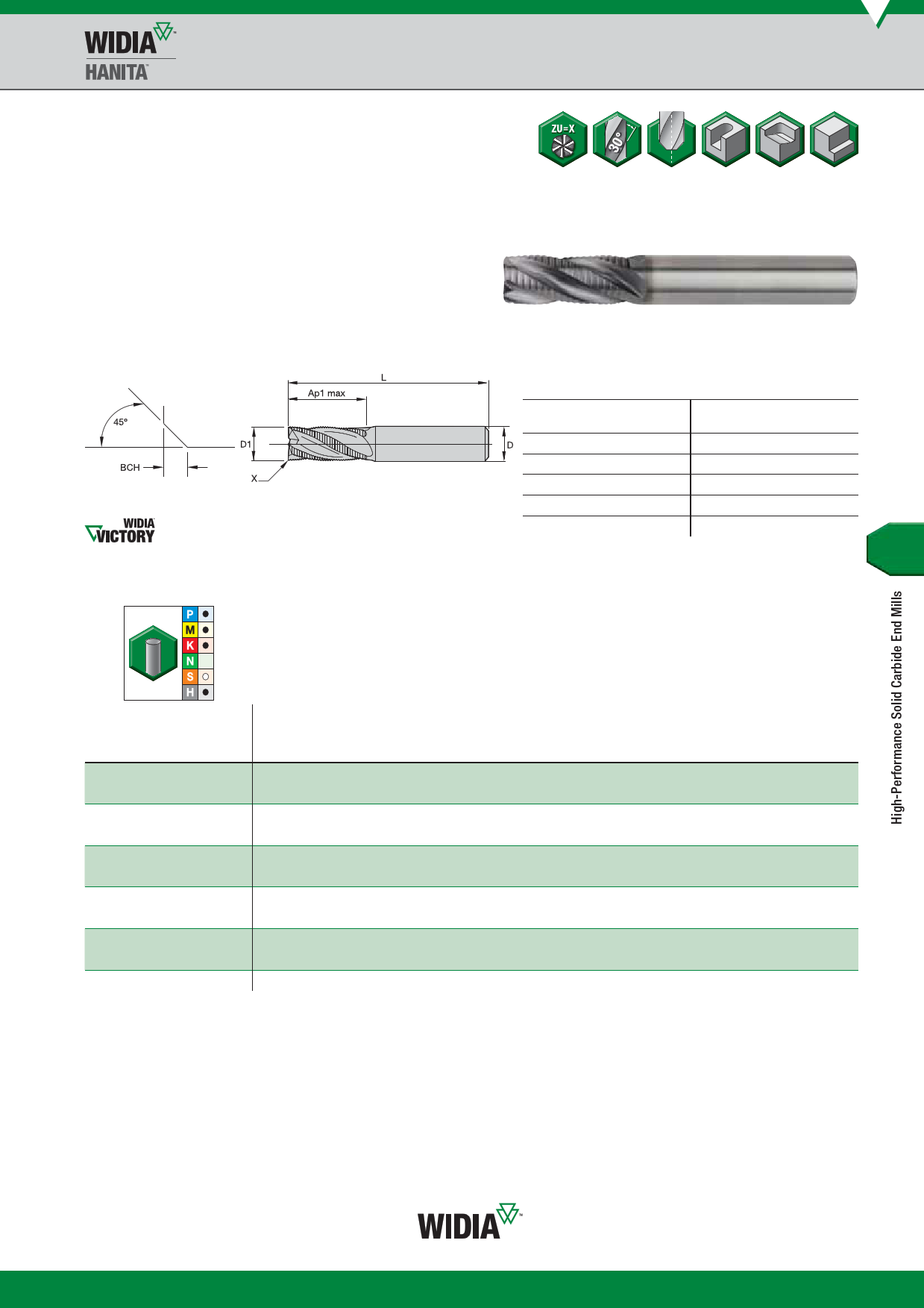

High-Performance Solid Carbide End Mills • Roughing
Series 4976 • Victory™ Grades
• Centre cutting.
• Flat shallow pitch.
• Standard items listed. Additional
styles and coatings made-to-order.
Detail X
Series 4976 • Victory Grades
D1
)3
> 3–6
> 6–10
> 10–18
> 18–30
End Mill Tolerances
tolerance d11
-0,020/-0,080
-0,030/-0,105
-0,040/-0,130
-0,050/-0,160
-0,065/-0,195
D
)3
> 3–6
> 6–10
> 10–18
> 18–30
tolerance h6
+/-
0/-0,006
0/-0,008
0/-0,009
0/-0,011
0/-0,013
first choice
alternate choice
graWdePW15PP1E5PE
AlTiN
order # catalogue #
D1
length of cut
length
D Ap1 max
L BCH
5560708 497604002T
4,0
6
8,00
57 0,30
5560709 497605002T
5,0
6
13,00
57 0,30
5560710 497606002T
6,0
6
13,00
57 0,30
5560711 497608003T
8,0
8
16,00
63 0,30
5560712 497610004T
10,0
10
22,00
72 0,50
5560713 497612005T
12,0
12
26,00
83 0,50
5560714 497614014T
14,0
14
26,00
83 0,50
5560715 497616006T
16,0
16
32,00
92 0,50
5560716 497618018T
18,0
18
32,00
92 0,50
5560717 497620007T
20,0
20
38,00
104 0,50
5560718 497625008T
25,0
25
45,00
121 0,50
