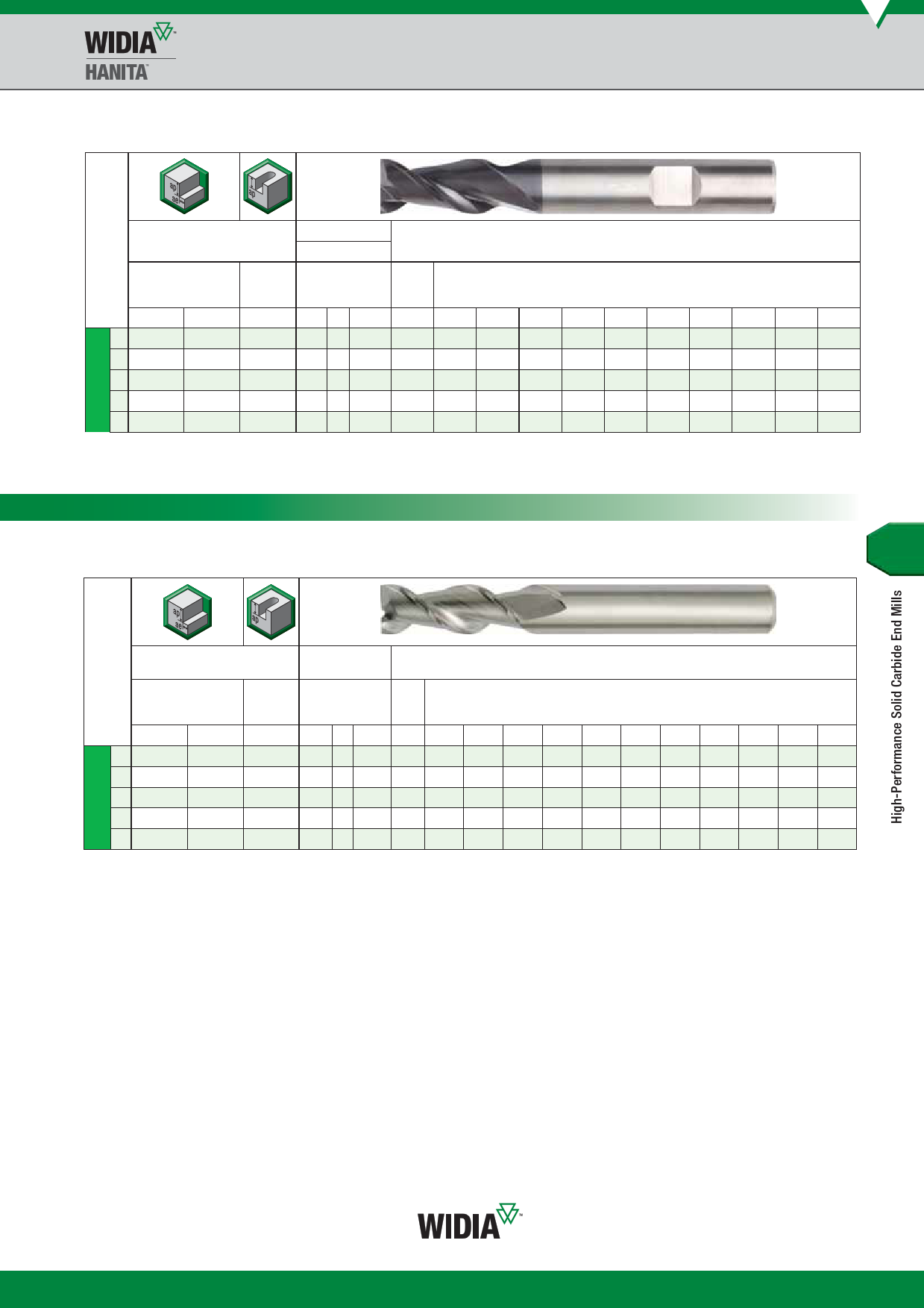

High-Performance Solid Carbide End Mills • Aluminium
Application Data • Series 022814 022817
Side Milling (A)
and Slotting (B)
K10F
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
Cutting Speed
B — vc
m/min
D1 — Diameter
ap min
max mm 4,0 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,0 20,0
1 1,5 x D 0,5 x D 1 x D 500 – 2000 fz 0,036 0,045 0,054 0,072 0,090 0,108 0,126 0,144 0,162 0,180
2 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162
N 3 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,025 0,032 0,038 0,050 0,063 0,076 0,088 0,101 0,113 0,126
4 1,5 x D 0,5 x D 1 x D 400 – 750 fz 0,029 0,036 0,043 0,058 0,072 0,086 0,101 0,115 0,130 0,144
5 1,5 x D 0,5 x D 1 x D 250 – 1000 fz 0,032 0,041 0,049 0,065 0,081 0,097 0,113 0,130 0,146 0,162
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
For better surface nish, redce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Series 4102
Application Data • Series 4102
Step ID: 100022864
Module Number: 22544
Module Name: Application Data • List 4102
Web Name: Application Data • List 4102
Side Milling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
Cutting Speed
B — vc
m/min
D1 — Diameter
ap min
max mm 1,5 2,0 3,0 4,0 6,0 8,0 10,0 12,0 16,0 18,0 20,0
1 1,5 x D 0,5 x D 1 x D 500 – 2000 fz 0,014 0,018 0,027 0,036 0,054 0,072 0,090 0,108 0,144 0,162 0,180
2 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,130 0,146 0,162
N 3 1,5 x D 0,5 x D 1 x D 500 – 1500 fz 0,009 0,013 0,019 0,025 0,038 0,050 0,063 0,076 0,101 0,113 0,126
4 1,5 x D 0,5 x D 1 x D 400 – 750 fz 0,011 0,014 0,022 0,029 0,043 0,058 0,072 0,086 0,115 0,130 0,144
5 1,5 x D 0,5 x D 1 x D 250 – 1000 fz 0,012 0,016 0,024 0,032 0,049 0,065 0,081 0,097 0,130 0,146 0,162
NOTE: Multiply ap for milling machine spindle with ceramic bearings by 0,5.
For better surface nish, reduce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
