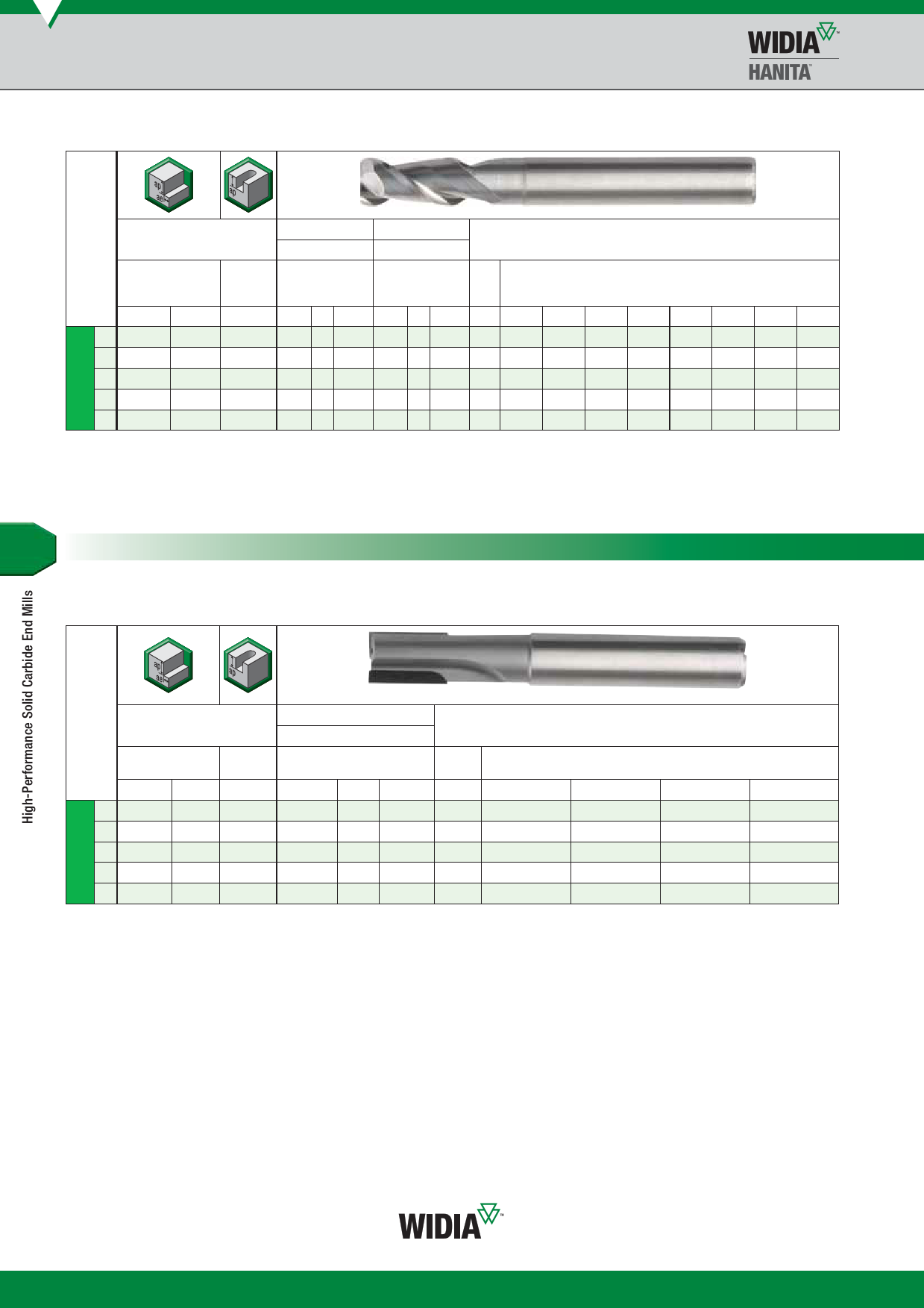

High-Performance Solid Carbide End Mills • Aluminium

Application Data • Series 022852 524152

Series 022852 524152

Side Milling (A)

and Slotting (B)

K10F

uncoated

K10F–DCL

DLC

Recommended feed per tooth (fz = mm/th) for side milling (A).

For slotting (B), reduce fz by 20%.

Material

Group

ap ae

Cutting Speed Cutting Speed

B — vc

— vc

m/min

D1 — Diameter

ap min

max min

max mm 3,0 4,0 6,0 8,0 10,0 12,0 14,0 16,0

1 1,2 x D 0,5 x D 1 x D 500 – 2000 500 – 2000 fz 0,021 0,028 0,042 0,056 0,070 0,084 0,098 0,112

2 1,2 x D 0,5 x D 1 x D 500 – 1500 500 – 1500 fz 0,019 0,025 0,038 0,050 0,063 0,076 0,088 0,101

N 3 1,2 x D 0,5 x D 1 x D – – – 500 – 1500 fz 0,017 0,022 0,034 0,045 0,056 0,067 0,078 0,090

4 1,2 x D 0,5 x D 1 x D – – – 400 – 750 fz 0,015 0,020 0,029 0,039 0,049 0,059 0,069 0,078

6 1,2 x D 0,5 x D 1 x D – – – 750 – 1200 fz 0,021 0,028 0,042 0,056 0,070 0,084 0,098 0,112

NOTE: For cutting aluminium with high silicon, DLC coating is recommended.

Multiply ap for milling machine spindle with ceramic bearings by 0.5.

For better surface nish, reduce feed per tooth.

Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.

Application Data • Series 024101

Series 024101

Side Milling (A)

and Slotting (B)

Material

Group

1xD

0,5 x D

0,7 x D

PCD

PCD–PT

Cutting Speed — vc

m/min

min max

400 – 2500

300 – 1500

500 – 3000

200 – 1000

400 – 800

Recommended feed per tooth (fz = mm/th) for side milling (A).

For slotting (B), reduce fz by 20%.

mm 6,0

fz 0,055

D1 — Diameter

8,0

0,075

10,0

0,095

12,0

0,100

O146
