Series 4103
для размещения заказа - zakaz@widiahanita.ru
High-Performance Solid Carbide End Mills • Aluminium

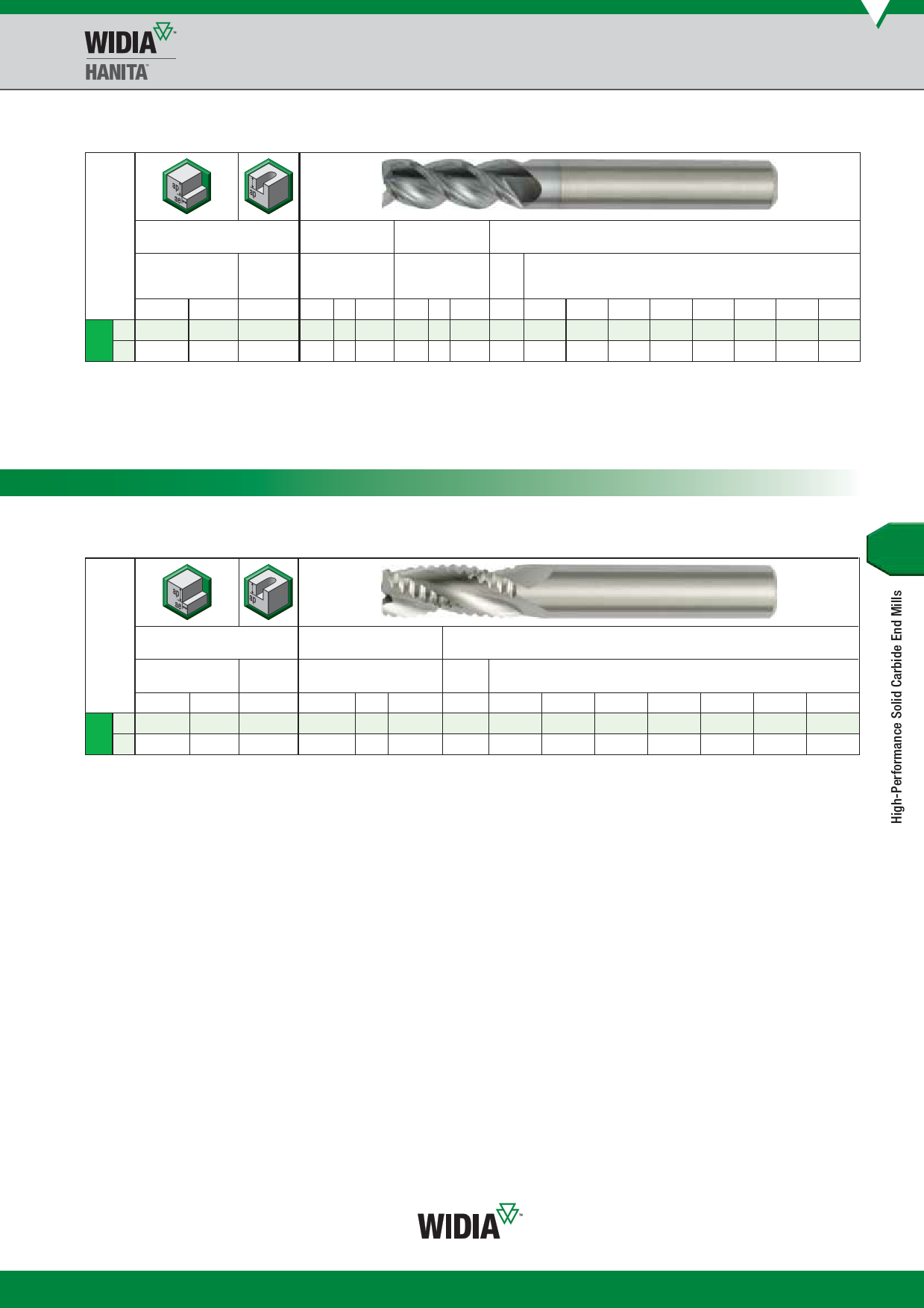

Application Data • Series 4103
Side Milling (A)
and Slotting (B)
uncoated
TiCN
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
Group
A
ap ae
Cutting Speed Cutting Speed
B — vc
— vc
m/min
m/min
D1 — Diameter
ap min
max min
max mm 3,0 4,0 6,0 8,0 10,0 12,0 16,0 20,0
1
N
2
1 x D 0,5 x D 0,7 x D
1 x D 0,5 x D 0,7 x D
500 – 2000 500 – 2000 fz 0,027 0,036 0,054 0,072 0,090 0,108 0,144 0,180
500 – 1500 500 – 1500 fz 0,024 0,032 0,049 0,065 0,081 0,097 0,130 0,162
NOTE: For cutting aluminium with high silicon, TiCN coating is recommended.
Multiply ap for milling machine spindle with ceramic bearings by 0.5.
For better surface nish, reduce feed per tooth.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
Series 4909
Application Data • Series 4909
Side Milling (A)
and Slotting (B)
uncoated
Recommended feed per tooth (fz = mm/th) for side milling (A).
For slotting (B), reduce fz by 20%.
Material
A
B
Cutting Speed — vc
m/min
D1 — Diameter
Group
ap
ae
ap
min
max max
6,0
8,0 10,0 12,0 16,0 20,0 25,0
1 1,5 x D 0,5 x D
N
2 1,5 x D 0,5 x D
1xD
1xD
500 – 2000 fz 0,066 0,088 0,110 0,132 0,176 0,220 0,275
500 – 1500 fz 0,059 0,079 0,099 0,119 0,158 0,198 0,248
NOTE: For cutting aluminium with high silicon TiCN coating is recommended.
Multiply ap for milling machine spindle with ceramic bearings by 0,5.
Above parameters are based on ideal conditions. For smaller taper machining centres, please adjust parameters accordingly on diameters >12mm.
