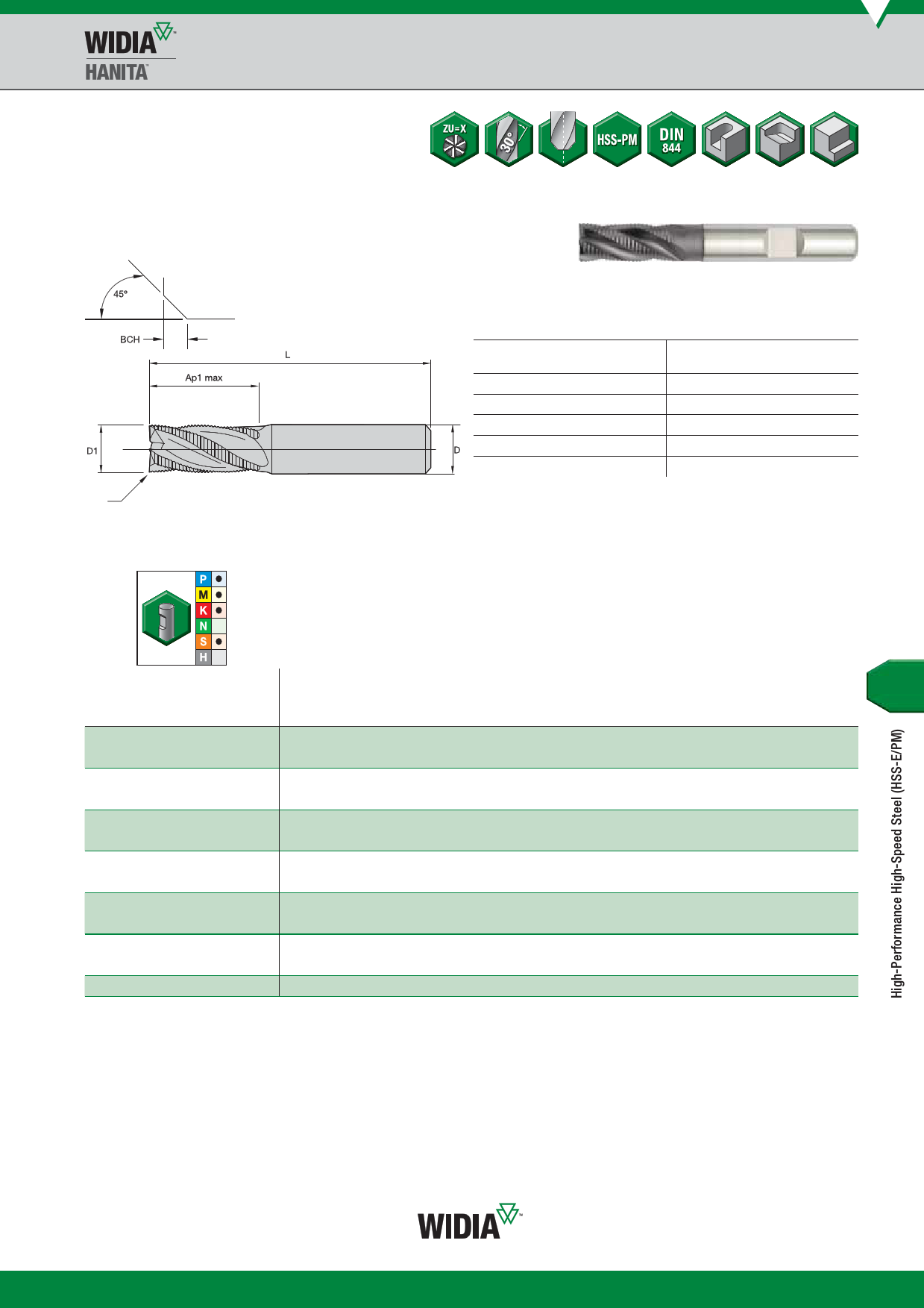

High-Performance High-Speed Steel (HSS-E/PM) • Roughing
Series 6N06
• Centre cutting.
• Fine pitch.
• Standard items listed. Additional styles
and coatings made-to-order.
Detail X
X
Series 6N06
End Mill Tolerances
D1 tolerance
tolerance h6
D +/-
All +0,12/-0,12 ) 3
0/0,006
> 3–6
0/0,008
> 6–10
0/0,009
> 10–18
0/0,011
> 18–30
0/0,013
first choice
alternate choice
graTdieATlNiA-LlNW-LW
TiAlN
order # catalogue #
length of cut
length
D1 D
Ap1 max
L BCH ZU
1660373 6N0606002LW
6,0
6
13,00
57 0,25 4
1660389 6N0608004LW 8,0 10
19,00
69 0,25 4
1660397 6N0609004LW 9,0 10
19,00
69 0,25 4
1660405 6N0610004LW 10,0 10
22,00
72 0,25 4
1660413 6N0611005LW 11,0 12
22,00
79 0,25 4
1660421 6N0612005LW 12,0 12
26,00
83 0,35 4
1660437 6N0614005LW 14,0 12
26,00
83 0,35 4
1660453 6N0616006LW 16,0 16
32,00
92 0,35 4
1660471 6N0618006LW 18,0 16
32,00
92 0,35 4
1660479 6N0620007LW 20,0 20
38,00
104 0,35 4
1660487 6N0622007LW 22,0 20
38,00
104 0,50 5
1660497 6N0625008LW 25,0 25
45,00
121 0,50 5
1660507 6N0630008LW 30,0 25
45,00
121 0,50 5
NOTE: For application data, please see page Q10.
