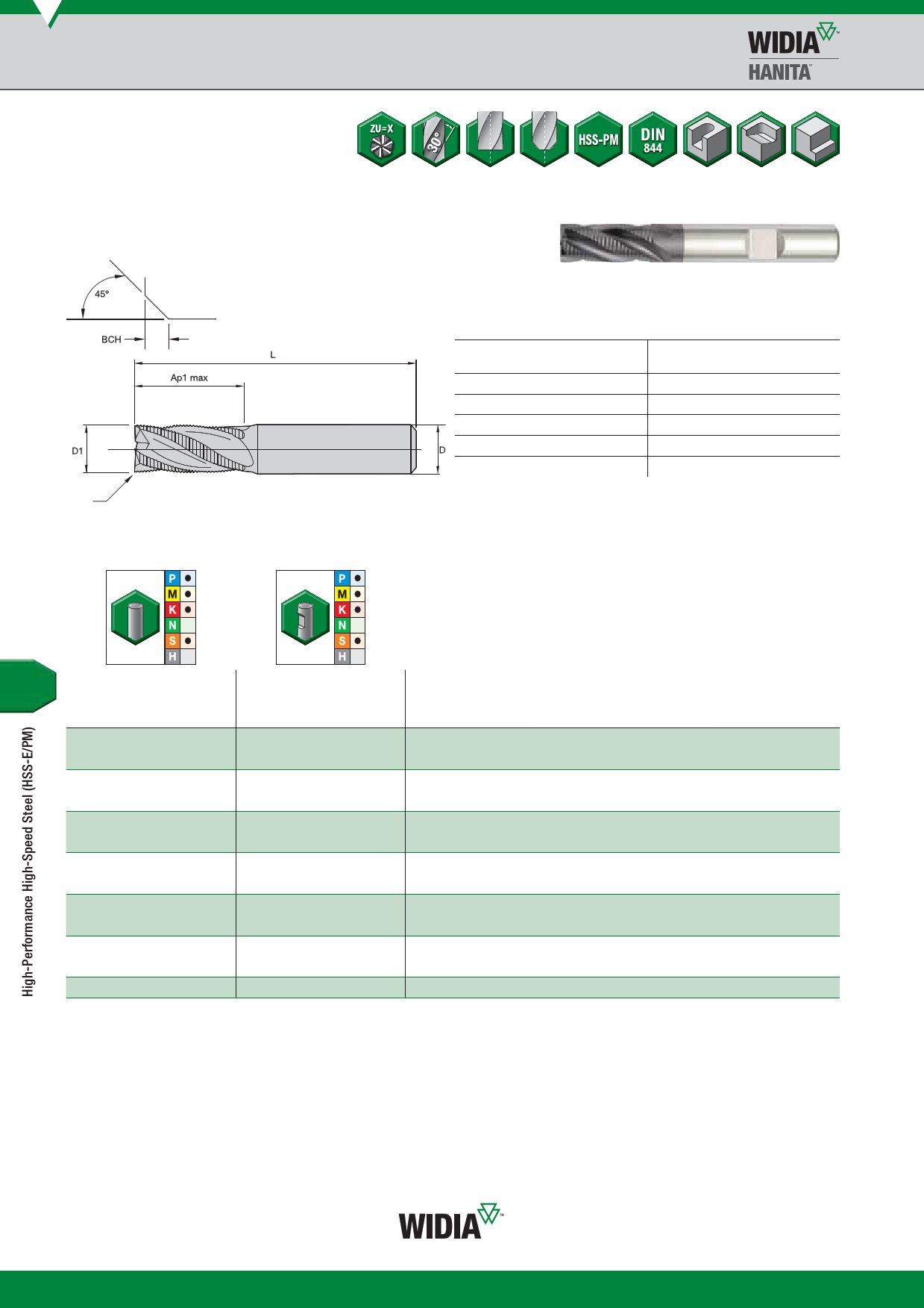

High-Performance High-Speed Steel (HSS-E/PM) • Roughing
Series 6N70
• Centre cutting.
• Flat shallow pitch.
• Standard items listed. Additional styles
and coatings made-to-order.
Detail X
X
Series 6N70
End Mill Tolerances
D1 tolerance
tolerance h6
D +/-
All +0,12/-0,12 ) 3
0/0,006
> 3–6
0/0,008
> 6–10
0/0,009
> 10–18
0/0,011
> 18–30
0/0,013
first choice
alternate choice
graTdieAlTNiA-LlNW-LT
gradTeiATlNiA-lLNT-LW
TiAlN
TiAlN
length of cut
length
order # catalogue # order # catalogue # D1 D
Ap1 max
L
BCH
ZU
2990812 6N7006002LT
1660596 6N7006002LW
6,0
6
13,00
57 0,25 4
2992083 6N7008004LT
1660598 6N7008004LW
8,0
10
19,00
69 0,25 4
1981089 6N7010004LT 1660600 6N7010004LW 10,0 10
22,00
72 0,25 4
1981090 6N7012005LT 1660602 6N7012005LW 12,0 12
26,00
83 0,35 4
3078687 6N7014005LT
—
14,0 12
26,00
83 — 4
—
1660604 6N7014005LW 14,0 12
26,00
83 0,35 4
1717017 6N7016006LT 1660606 6N7016006LW 16,0 16
32,00
92 0,35 4
3077681 6N7018006LT
—
18,0 16
32,00
92 — 4
—
1660608 6N7018006LW 18,0 16
32,00
92 0,35 4
1716039 6N7020007LT 1660610 6N7020007LW 20,0 20
38,00
104 0,35 4
2992087 6N7025008LT 1660612 6N7025008LW 25,0 25
45,00
121 0,50 4
3078692 6N7032009LT
—
32,0 20
53,00
133 — 6
—
1660614 6N7032009LW 32,0 32
53,00
133 0,50 6
NOTE: For application data, please see page Q11.
Q6
