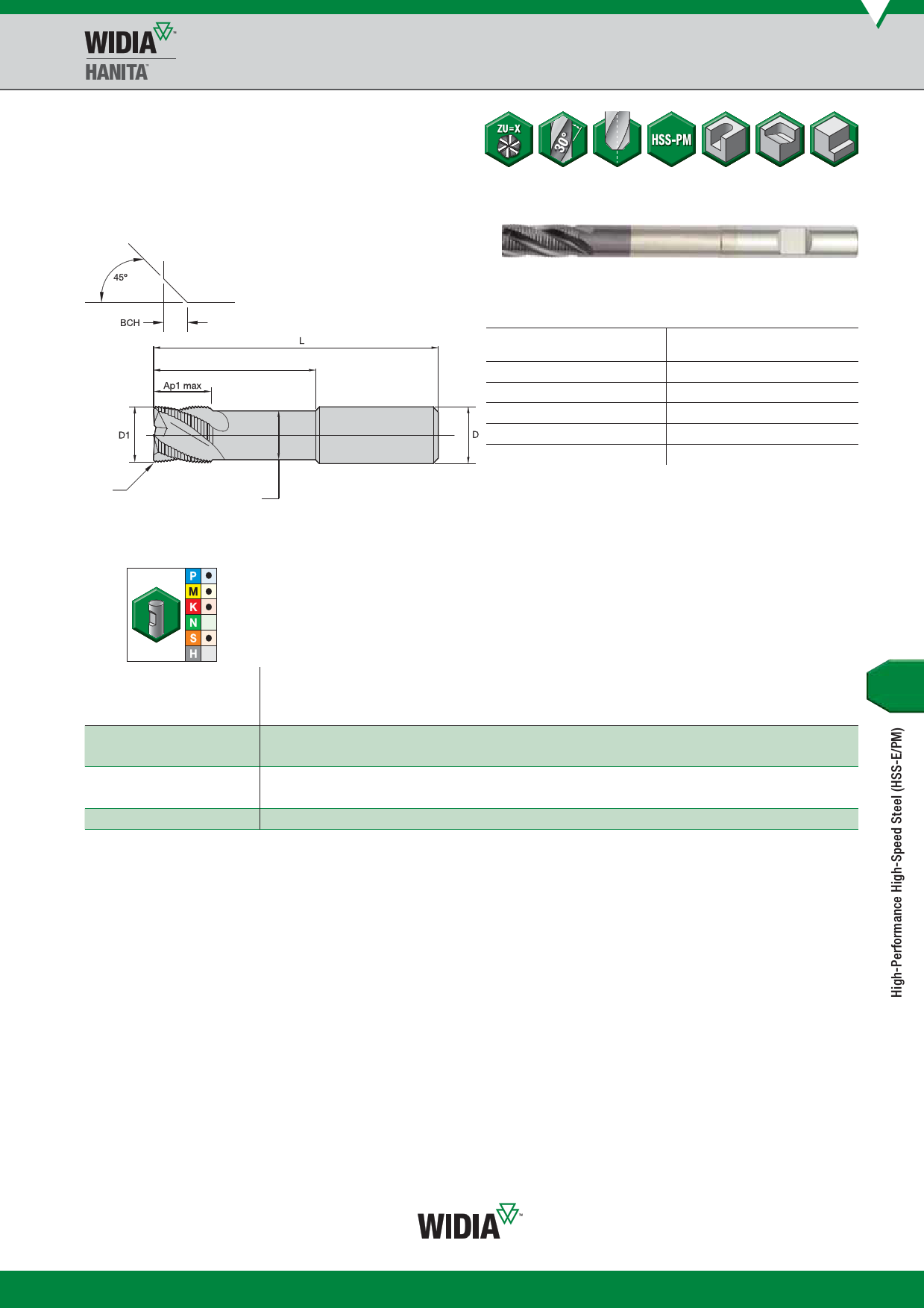

High-Performance High-Speed Steel (HSS-E/PM) • Roughing
Series 6NL6
• Centre cutting.
• Fine pitch.
• Standard items listed. Additional styles
and coatings made-to-order.
Detail X
L3
X
Series 6NL6
D3
End Mill Tolerances
D1 tolerance
tolerance h6
D +/-
All +0,12/-0,12
)3
0/0,006
> 3–6
0/0,008
> 6–10
0/0,009
> 10–18
0/0,011
> 18–30
0/0,013
first choice
alternate choice
graTdieAlTNiA-LlNW-LW
TiAlN
order # catalogue #
length of cut
D1 D D3
Ap1 max
1660617 6NL610004LW 10,0 10 10
2,00
L3
69,00
length
L
110
BCH ZU
0,25 4
1660623 6NL612005LW 12,0 12 12
26,00
78,00 125 0,35 4
1660629 6NL616006LW 16,0 16 15
32,00
87,00 138 0,35 4
1660635 6NL620007LW 20,0 20 20
38,00
108,00 160 0,35 4
1660640 6NL625008LW 25,0 25 25
45,00
155,00 216 0,50 5
NOTE: For application data, please see page Q11.
