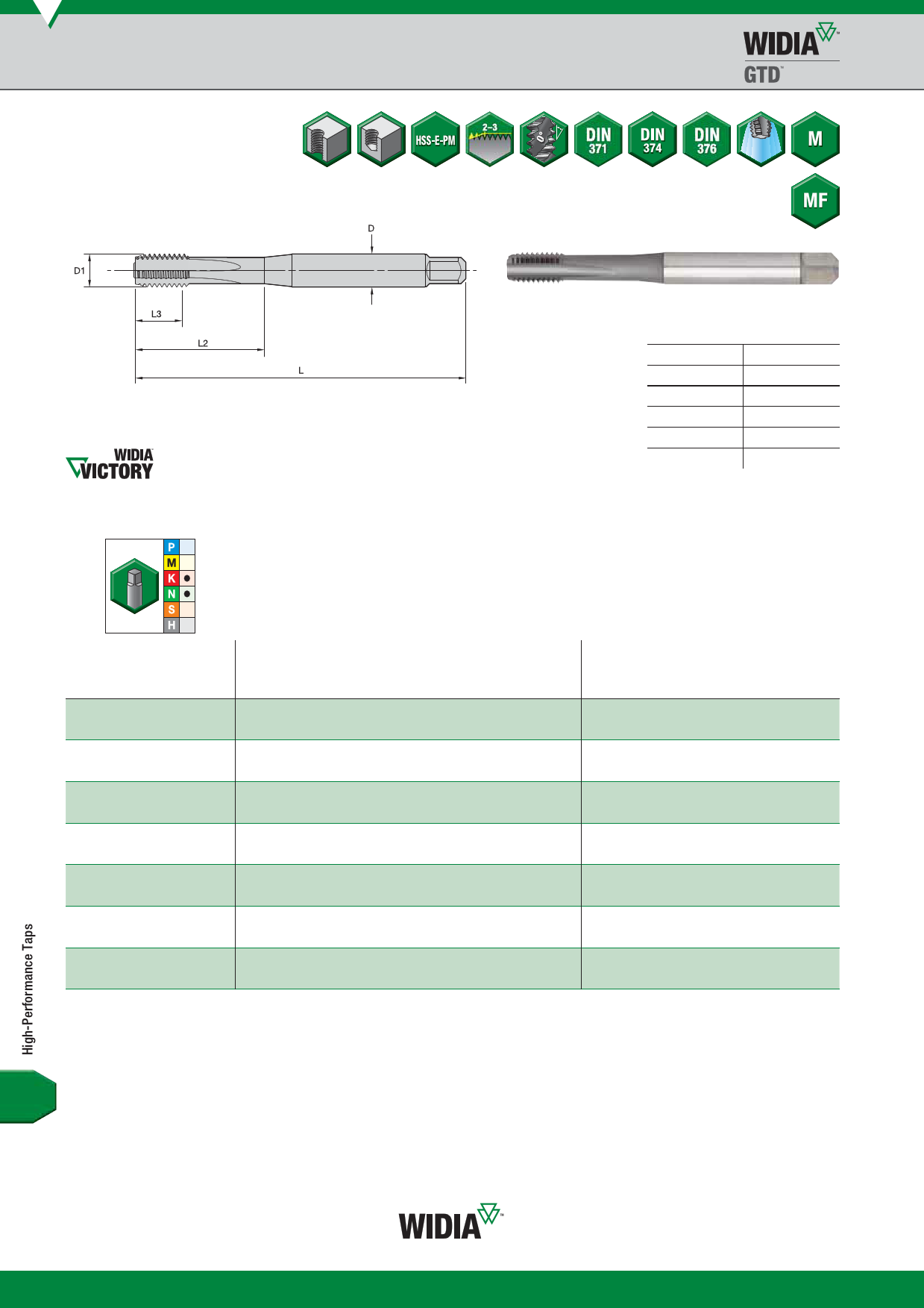

High-Performance Taps

Victory™ Straight-Flute HSS-E-PM Taps • Through and Blind Holes

• GP6520 TiCN for cast iron

and cast aluminium.

Shank Tolerance

D mm

tolerance h6

>3–6 +0, -0,008

>6–10

+0, -0,009

>10–18

+0, -0,011

>18–30

+0, -0,013

>30–50

+0, -0,016

GT40 • Form C Semi-Bottoming Chamfer • Metric DIN 371, 374, and 376 • For Cast Iron

and Cast Aluminium

first choice

alternate choice

gradGePG65P260520

TiCN

order # catalogue #

4033699 GT405001

4033700 GT405002

4033701 GT405003

4033702 GT405004

4033753 GT405005

5408066 GT405057

4033754 GT405006

5408067 GT405058

4033755 GT405007

5408068 GT405059

4033756 GT405008

4033757 GT405009

4033758 GT405010

4033759 GT405011

D1 size

M4 X 0,7

M5 X 0,8

M6 X 1

M8 X 1,25

M10 X 1,5

M12 X 1,5

M12 X 1,75

M14 X 1,5

M14 X 2

M16 X 1,5

M16 X 2

M18 X 2,5

M20 X 2,5

M22 X 2,5

metric dimensions

L L3 L2 D

63 10 21 4,5

70 10 25 6,0

80 10 30 6,0

90 13 35 8,0

100 15 39 10,0

100 15 39

9,0

110 18 44

9,0

100 15 47 11,0

110 20 52 11,0

100 15 46 12,0

110 20 51 12,0

125 25 58 14,0

140 25 64 16,0

140 25 70 18,0

number

of utes

dimension

standard

DIN 371

DIN 374

DIN 376

DIN 374

DIN 376

DIN 374

DIN 376

class

of t

6HX

Y52
