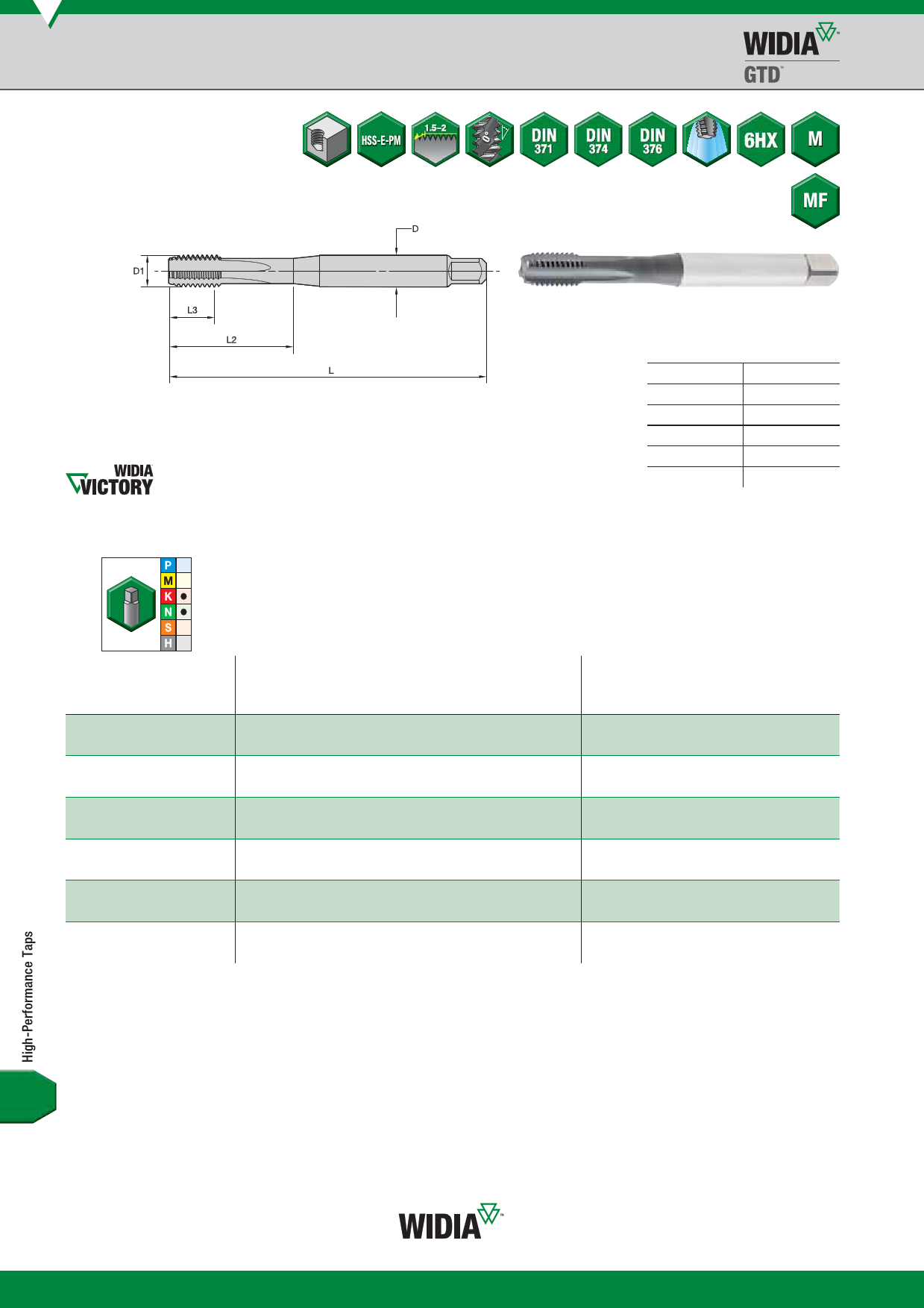

High-Performance Taps

Victory™ Straight-Flute HSS-E-PM Taps • Threading Close to the Bottom in Blind Holes

• GP6520 TiCN for cast iron

and cast aluminium.

Shank Tolerance

D mm

tolerance h6

>3–6 +0, -0,008

>6–10

+0, -0,009

>10–18

+0, -0,011

>18–30

+0, -0,013

>30–50

+0, -0,016

GT42 • Form E Bottoming Chamfer • Metric DIN 371, 374, and 376 • For Cast Iron and Cast Aluminium

first choice

alternate choice

graGdeP6G5P260520

TiCN

order # catalogue #

4154274 GT425001

4154275 GT425002

4154276 GT425003

4154277 GT425004

4154280 GT425007

4154278 GT425005

4154281 GT425008

4154279 GT425006

4154282 GT425009

5408402 GT425010

5408403 GT425011

5408404 GT425012

D1 size

M5 X 0,8

M6 X 1

M8 X 1,25

M10 X 1,5

M12 X 1,5

M12 X 1,75

M14 X 1,5

M14 X 2

M16 X 1,5

M16 X 2

M18 X 2,5

M20 X 2,5

metric dimensions

L L3 L2 D

70 10 25 6,0

80 10 30 6,0

90 13 35 8,0

100 15 39 10,0

100 15 39

9,0

110 18 44

9,0

100 15 47 11,0

110 20 52 11,0

100 15 46 12,0

110 20 51 12,0

125 25 58 14,0

140 25 64 16,0

number

of utes

dimension

standard

DIN 371

DIN 374

DIN 376

DIN 374

DIN 376

DIN 374

DIN 376

class

of t

6HX

Y54
