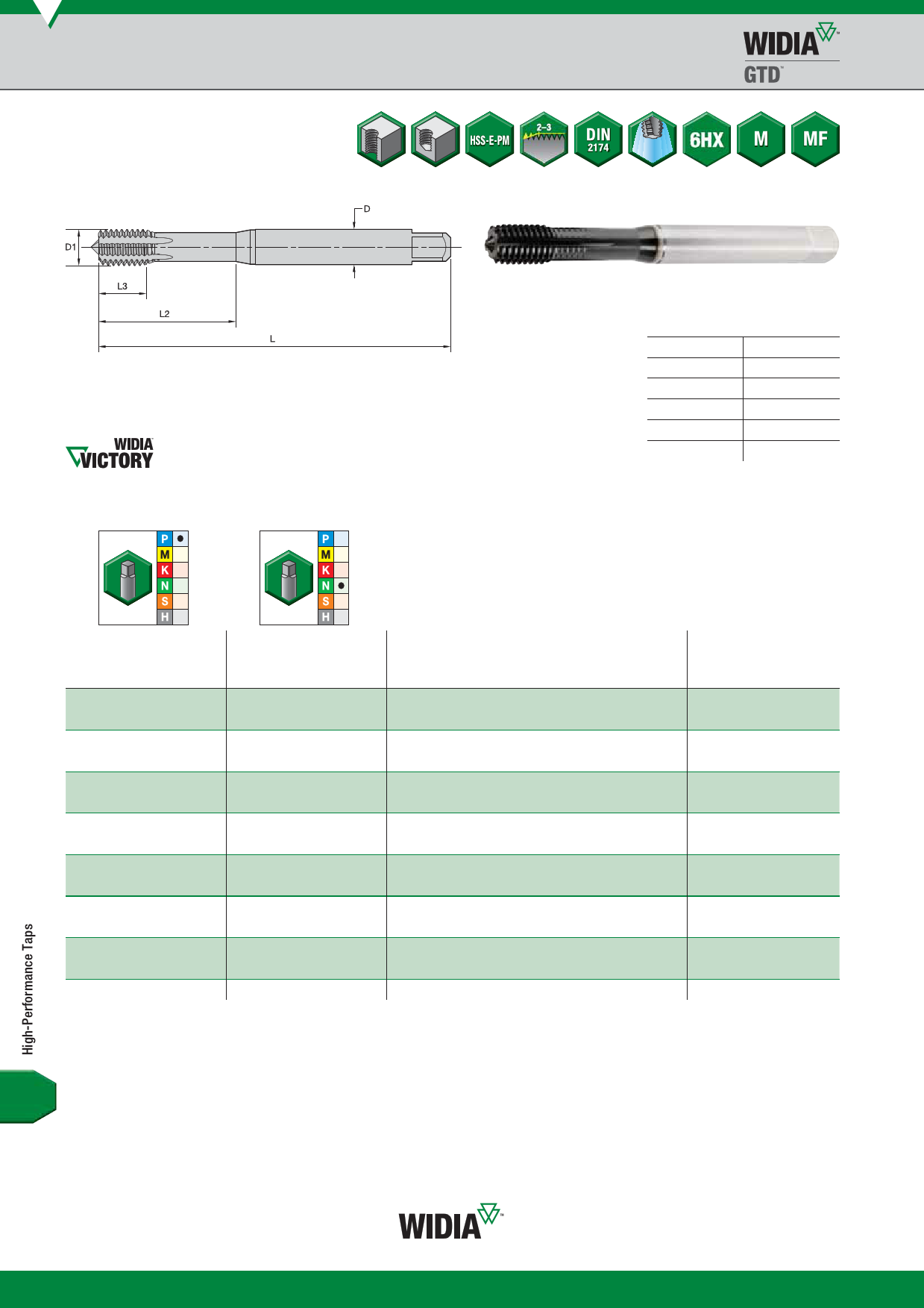

High-Performance Taps

Victory™ Forming Taps HSS-E-PM • Blind and Through Holes

• WP31MG TiN for steel.

• WN38MG DLC for aluminium.

Shank Tolerance

D mm

tolerance h9

1–3 +0, -0,025

>3–6 +0, -0,030

>6–10

+0, -0,036

>10–18

+0, -0,043

>18–30

+0, -0,052

GT22 • Form C Semi-Bottoming Entry Taper • Metric DIN 2174 • For Steel and Aluminium

first choice

alternate choice

graWdePW31PM3G1MG

TiN

order # catalogue #

4158495 GT225016

4158496 GT225017

4158497 GT225018

4158498 GT225019

4158513 GT225024

4158499 GT225020

4158514 GT225025

4158515 GT225026

4158500 GT225021

4158516 GT225027

4158517 GT225028

4158501 GT225022

4158518 GT225029

4158519 GT225030

4158502 GT225023

gradWeNW38NM38GMG

DLC

order # catalogue #

4154671 GT225001

4154672 GT225002

4154673 GT225003

4154674 GT225004

4154679 GT225009

4154675 GT225005

4154680 GT225010

4154681 GT225011

4154676 GT225006

4154682 GT225012

4154683 GT225013

4154677 GT225007

4154684 GT225014

4154685 GT225015

4154678 GT225008

D1 size

M3 X 0,5

M4 X 0,7

M5 X 0,8

M6 X 1

M8 X 1

M8 X 1,25

M10 X 1

M10 X 1,25

M10 X 1,5

M12 X 1,25

M12 X 1,5

M12 X 1,75

M14 X 1,5

M16 X 1,5

M16 X 2

metric dimensions

L L3 L2 D

56 6 18 3,5

63 7 21 4,5

70 8 25 6,0

80 10 30 6,0

90 10 35 8,0

90 14 35 8,0

90 10 35 10,0

100 16 39 10,0

100 15 —

9,0

100 15 —

9,0

110 18 —

9,0

100 15 — 11,0

100 15 — 12,0

110 22 — 12,0

dimension

standard

DIN 2174

class

of t

6HX

Y62
