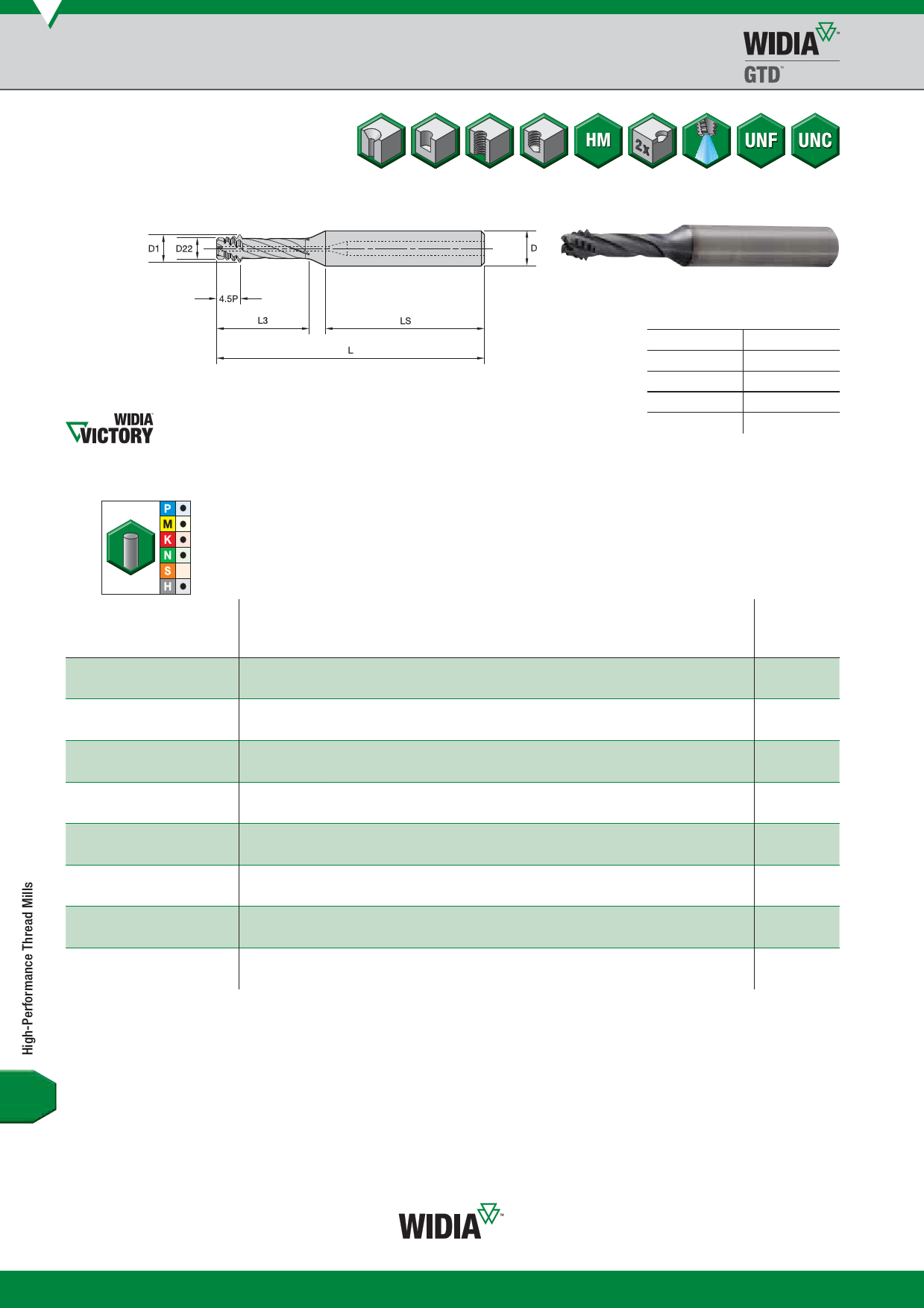

High-Performance Thread Mills
Victory™ Solid Carbide Thread Mills • Blind and Through Holes
GTM41 • Through Coolant • Right Hand • Inch UNC and UNF
Shank Tolerance
D mm
tolerance h6
6 +0, -0,008
8–10 +0, -0,009
12–18
+0, -0,011
20–30
+0, -0,013
first choice
alternate choice
graWdUe 1W6UPV16PV
TiAlN+MoS2
order # catalogue #
D1 TPI
D1
metric dimensions
cutting
D22 L3
L LS D
edges
4138610 GTM415025 1/4-20 4,64 3,34 17,00 60 36 8,0
3
4138617 GTM415033 1/4-28 4,66 3,62 17,00 60 36 8,0
3
4138611 GTM415026
5/16-18
5,64
4,12 21,90 76 40 10,0
4
4138618 GTM415034
5/16-24
5,64
4,48 21,90 76 40 10,0
4
4138612 GTM415027 3/8-16 7,16 5,42 26,30 76 40 10,0
4
4138619 GTM415035 3/8-24 7,14 6,00 26,30 76 40 10,0
4
4138613 GTM415028
7/16/14
8,47
6,49 31,00 86 45 12,0
4
4138620 GTM415036
7/16-20
8,45
7,06 33,00 86 45 12,0
4
4138606 GTM415029
1/2-13 10,08 7,95 33,40 86 45 12,0
4
4138615 GTM415037 1/2-20 8,45 7,06 33,00 86 45 12,0
4
4138614 GTM415030
9/16-12
11,28
8,98
41,00
98
48 16,0
4
4138621 GTM415038
9/16-18
11,27
9,72
41,00
98
48 16,0
4
4138607 GTM415031
5/8-11
12,89
10,40
42,00
98
48 16,0
4
4138616 GTM415039
5/8-18
12,38
10,83
42,00
98
48 16,0
4
4138608 GTM415032
3/4-10
15,50 12,77 51,30 111 50 20,0
5
4138609 GTM415040
3/4-16
15,38 13,65 51,30 111 50 20,0
5
Y74
