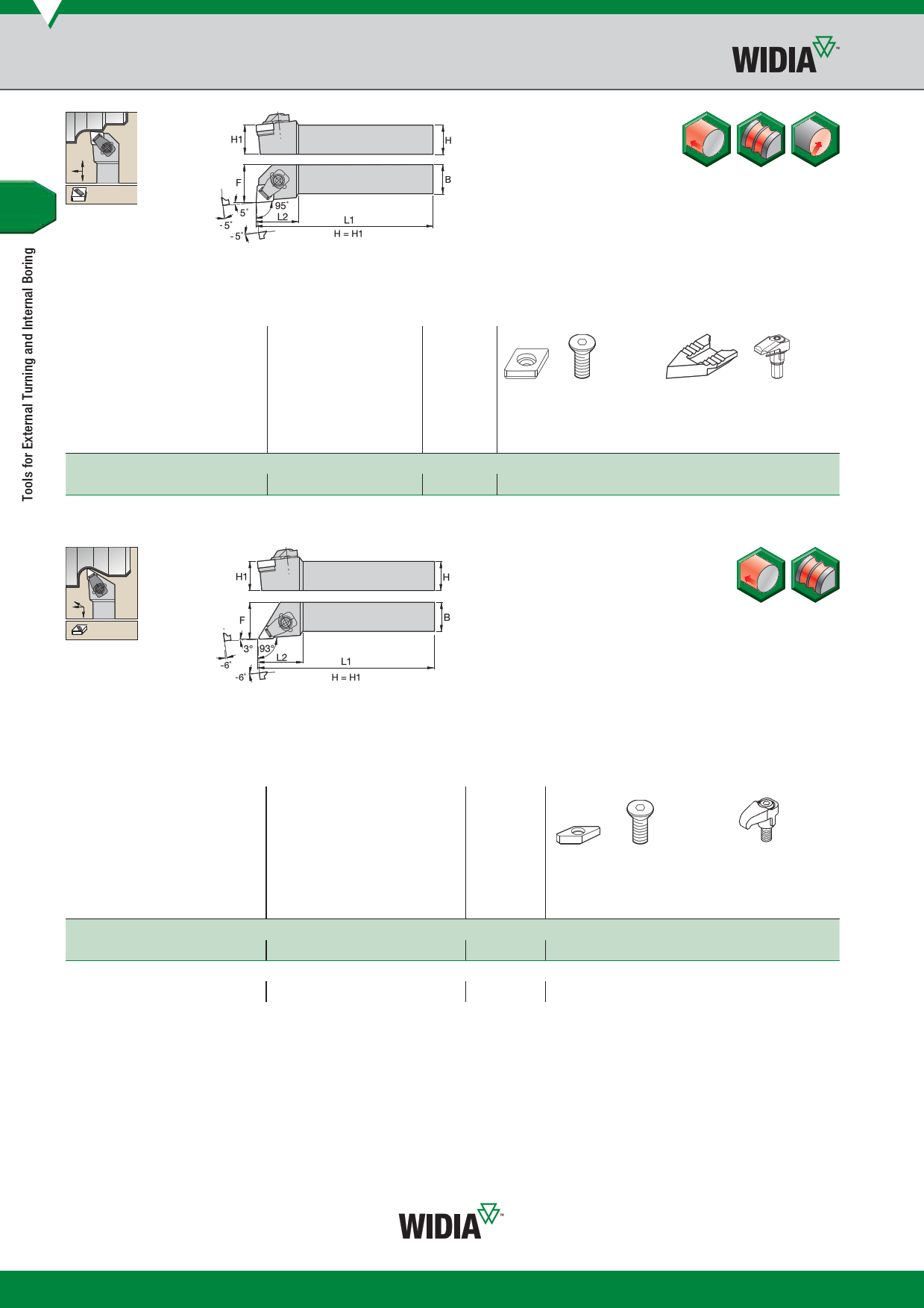

C-Style Clamping Toolholders for Negative Inserts
See pages B177–B179 and
B197–B205 for inserts.
CCLN-MF 95°
order number
right hand
3032723
catalogue number
CCLNR2525M12MF7
H
25
B F L1 L2
gage
insert
shim
shim
screw
hex
25 32,0 150 32,0 CN.N120708 552.221 554.252 2.5 mm
clamp
chipbreaker assembly hex
557.125
551.317 4 mm
NOTE: MX — clamping version is shown.
See pages B180–B181 and
B206–B216 for inserts.
CDJN-MX 93°
order number
right hand
3032726
catalogue number
CDJNR2525M15MX7
left hand
3032727
CDJNL2525M15MX7
NOTE: MX — clamping version is shown.
H
25
25
B F L1 L2
gage
insert
shim
shim
screw
clamp
hex assembly hex
25 32,0 150 38,0 DN.X150708 552.228 554.252 2.5 mm 551.332 4 mm
25 32,0 150 38,0 DN.X150708 552.228 554.252 2.5 mm 551.332 4 mm
