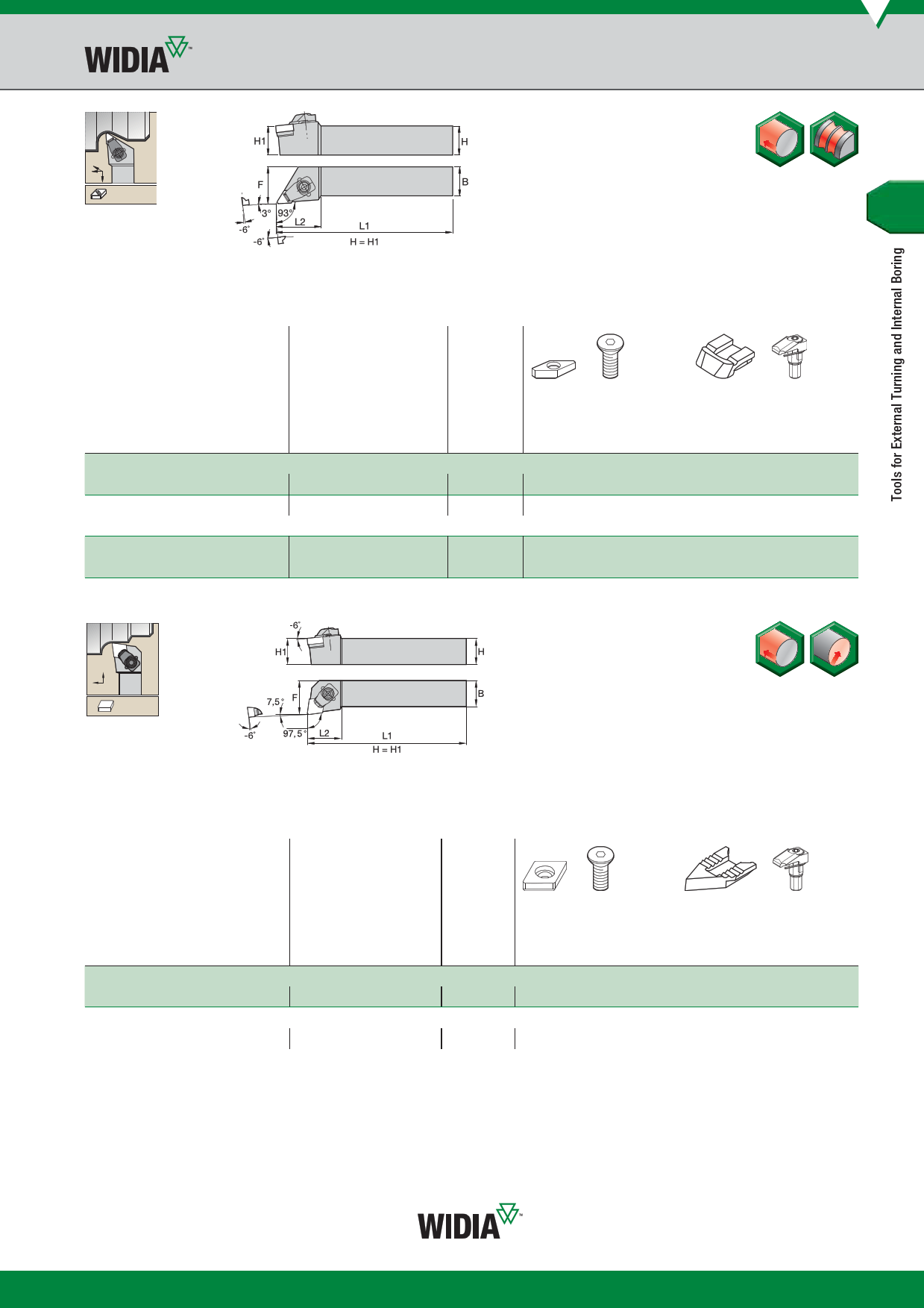

C-Style Clamping Toolholders for Negative Inserts
See pages B180–B181 and
B206–B216 for inserts.
CDJN-MN 93°
order number catalogue number H B F L1 L2
gage
insert
right hand
3032728
CDJNR2525M15MN7 25 25 32,0 150 38,0 DN.N150708
3032545
CDJNR3225P15MN7 32 25 32,0 170 38,0 DN.N150708
left hand
3032544
CDJNL2525M15MN7 25 25 32,0 150 38,0 DN.N150708
3032546
CDJNL3225P15MN7 32 25 32,0 170 38,0 DN.N150708
NOTE: MX — clamping version is shown.
shim
552.228
552.228
552.228
552.228
shim
screw
hex
554.252 2.5 mm
554.252 2.5 mm
554.252 2.5 mm
554.252 2.5 mm
thrust
plate
clamp
assembly hex
557.111
557.111
551.317 4 mm
551.317 4 mm
557.111
557.111
551.317 4 mm
551.317 4 mm
See page B182 for inserts.
CELN-MF 97,5°
order number
right hand
3879700
catalogue number
CELNR2525M13MF7
left hand
3879698
CELNL2525M13MF7
NOTE: MN — clamping version is shown.
H B F L1 L2
gage
insert
shim
shim
screw
hex
25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm
25 25 32,5 153 32,0 EN.N130708 552.240 554.252 2.5 mm
clamp
chipbreaker assembly hex
557.125
551.317 4 mm
557.125
551.317 4 mm
