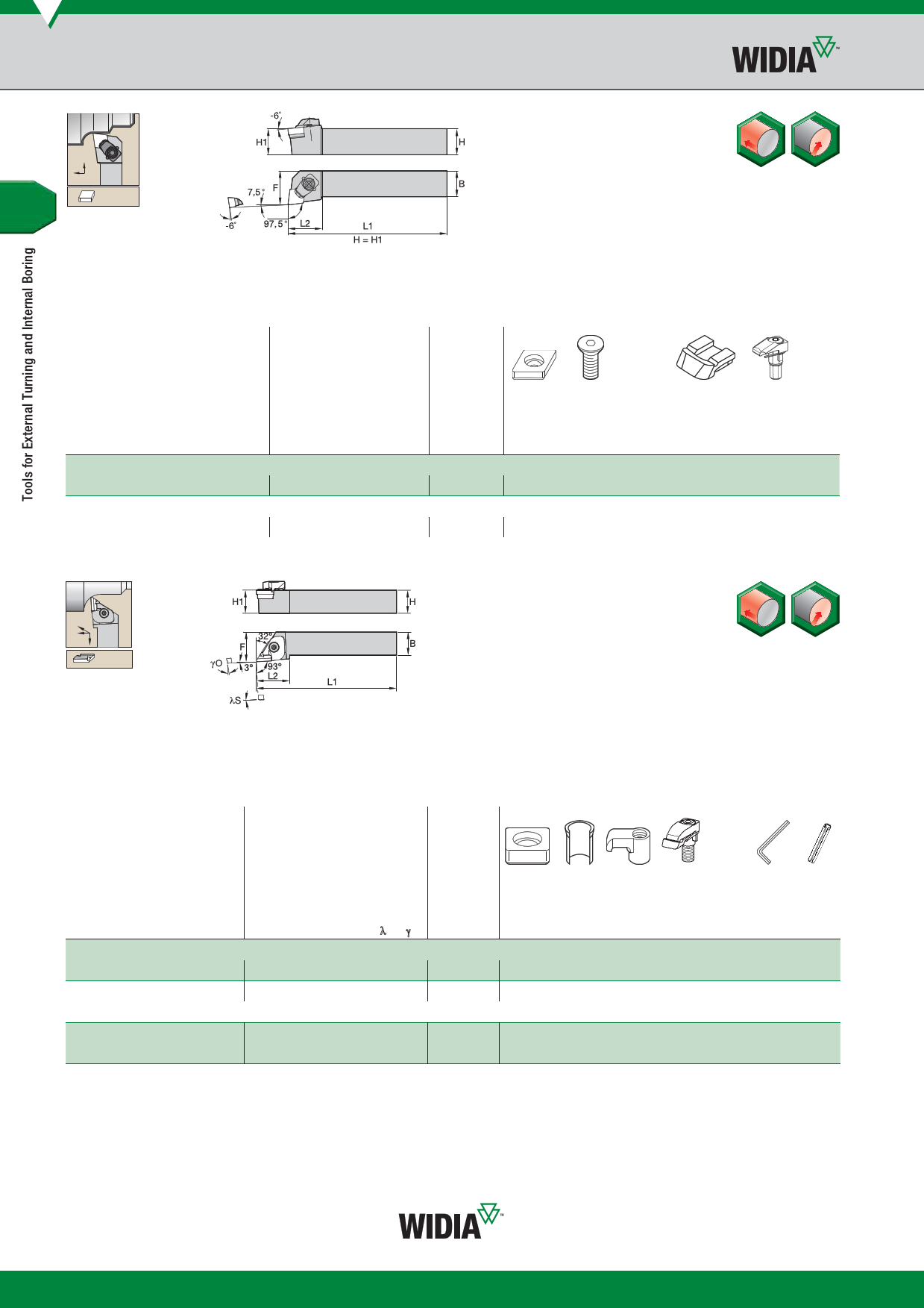

C-Style Clamping Toolholders for Negative Inserts
See page B182 for inserts.
CELN-MN 97,5°
order number catalogue number H B F L1 L2
gage
insert
right hand
3879701 CELNR2525M13MN7 25 25 32,5 153 32,0 EN.N130708
left hand
3879699
CELNL2525M13MN7 25 25 32,5 153 32,0 EN.N130708
NOTE: MN — clamping version is shown.
shim
552.240
552.240
shim
screw
hex
554.252 2.5 mm
554.252 2.5 mm
thrust
plate
clamp
assembly hex
557.111 551.317 4 mm
557.111 551.317 4 mm
CKJN
H = H1
order number catalogue number H B F L1 L2 hS° aO°
gage
insert
shim
shim
clamp
hex
pin clamp assembly hex wrench pin
right hand
3870064
CKJNR2525M16 25 25 32,0 150 36,0 0.0 -6.0 KN..160410R 512.100 513.020 551.129 —
4 mm 170.004 513.123
3870065
CKJNR3225P16 32 25 32,0 170 33,0 0.0 -6.0 KN..160410R 512.100 513.020 551.129 —
4 mm 170.004 513.123
left hand
3870042
CKJNL2525M16 25 25 32,0 150 36,0 0.0 -6.0 KN..160410L 512.101 513.020 —
551.130 4 mm 170.004 513.123
3870063
CKJNL3225P16 32 25 32,0 170 33,0 0.0 -6.0 KN..160410L 512.101 513.020 — 551.130 4 mm 170.004 513.123
