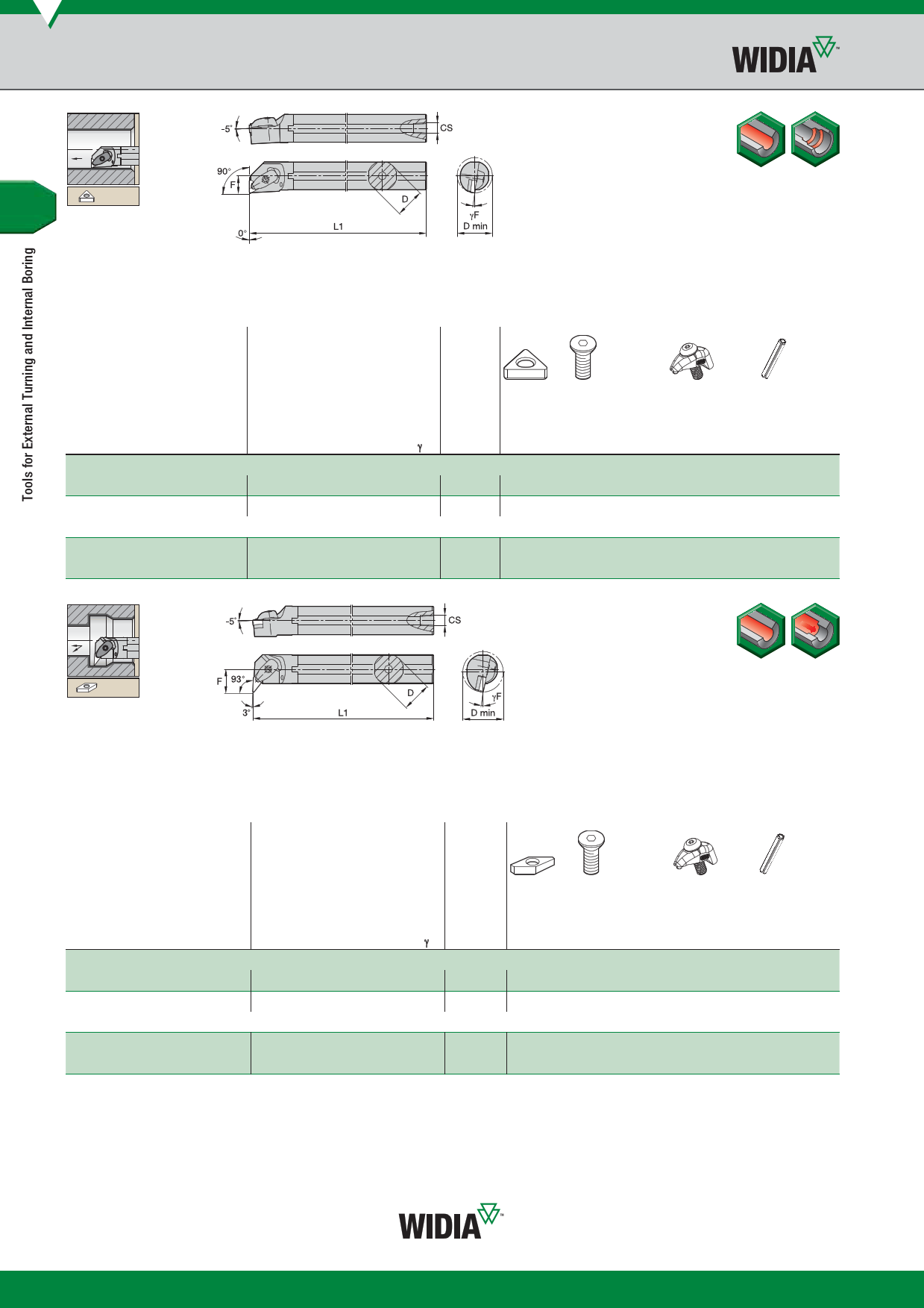

D-Style Clamping Boring Bars for Negative Inserts
Steel Shank with Through Coolant
Steel shank with
through coolant.
See pages B81–B93
for inserts.
A-DTFN 90°
order number catalogue number D D min F L1 CS
gage
aF° insert
shim
shim Torx
screw Plus
clamp
assembly
slotted Torx
pin Plus
right hand
5696219 A25RDTFNR16KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP
5696261 A32SDTFNR16KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP
left hand
5696260
A25RDTFNL16KC04 25 32,0 17,0 200 1/4-18 NPT -14.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP
5696262 A32SDTFNL16KC04 32 40,0 22,0 250 1/4-18 NPT -12.0 TN..160408 ITSN323 KMSP315IP 15 IP CM234RLP ASSY SSP025016M 15 IP
Steel shank with
through coolant.
See pages B94–B99
for inserts.
A-DVUN 93°
gage
order number catalogue number D D min F L1 CS aF° insert
shim
shim Torx clamp
screw Plus assembly
slotted Torx
pin Plus
right hand
5696263 A32SDVUNR16KC04 32 40,0 22,0 250 1/4-18 NPT -9.0 VN..160408 IVSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP
5696265 A40TDVUNR16KC04 40 50,0 27,0 300 1/4-18 NPT -8.0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY SSP025016M 15 IP
left hand
5696264
5696266
A32SDVUNL16KC04 32 40,0 22,0 250 1/4-18 NPT -9.0 VN..160408 IVSN322 KMSP315IP 15 IP CM234R ASSY SSP025016M 15 IP
A40TDVUNL16KC04 40 50,0 27,0 300 1/4-18 NPT -8.0 VN..160408 IVSN322 KMSP315IP 15 IP CM215R ASSY SSP025016M 15 IP
C58
